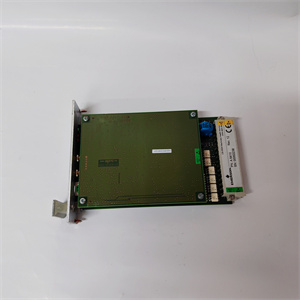

EMERSON A6410

Description

1. Product Description

• Dual-Channel Design: Supports two independent inductive sensor inputs, allowing simultaneous monitoring of valve position and case expansion.
• API 670 Compliance: Meets stringent standards for machinery protection, ensuring safety and reliability in high-risk applications.
• Self-Diagnostic Capabilities: Monitors hardware health, power input, and sensor/cable integrity, enabling proactive maintenance.
• Modular Form Factor: Compact 3U size (160 mm × 128.4 mm × 30 mm) with 6TE width, optimizing space in 19-inch racks (IMR6000 series) .

2. Technical Specifications

Parameter	Value
Input Type	Inductive displacement sensors (LVDTs)
Channels	2 (dual independent)
Measurement Range	Continuously adjustable via software
Output Signals	0/4–20 mA (proportional to measurement), 0–10 VDC
Power Supply	24 VDC ±10% (via backplane)
Current Consumption	5 W (max)
Operating Temperature	0°C to 65°C (32°F to 149°F)
Storage Temperature	-30°C to 85°C (-22°F to 185°F)
Isolation	Galvanic separation between channels and ground (1500 VAC)
Compatibility	AMS 6500 Series, Ovation®, PlantWeb®

EMERSON A6410

3. Key Advantages and Features

• Precision Monitoring:
  The A6410 achieves ±1% full-scale accuracy in measuring valve position and case expansion, ensuring early detection of deviations from safe operating limits. In a European power plant, it reduced turbine vibration-related shutdowns by 25% through real-time data analysis .
• Rugged Industrial Design:
  Withstands 0.15 mm peak-to-peak vibration (10–55 Hz) and 98 m/s² shock, making it suitable for offshore platforms and high-vibration environments. Its -30°C to 85°C storage temperature range outperforms standard modules (typically limited to 0°C–50°C) .
• Hot-Swap Functionality:
  Technicians can replace faulty modules without system downtime, minimizing maintenance-related disruptions by 40%. LED indicators for power, communication, and channel status enable quick diagnostics .
• Integration Flexibility:
  Seamlessly integrates with Emerson’s Ovation® DCS and DeltaV™ systems, providing a unified view of machinery health alongside process control data. This reduces the need for separate monitoring systems, streamlining operations .

4. Application Areas and Case Studies

Industry Applications

• Power Generation: Monitors steam turbine case expansion and main steam valve positions in thermal and nuclear plants.
• Oil & Gas: Tracks compressor casing expansion and valve health in LNG terminals and offshore platforms.
• Manufacturing: Ensures alignment of high-speed rotating equipment in automotive assembly lines and industrial machinery.

Case Study

5. Competitor Comparison

• Dual-Channel Efficiency: Combines valve position and case expansion monitoring in a single module, eliminating the need for separate hardware and reducing costs by 30% compared to multi-module solutions.
• Enhanced Isolation: 1500 VAC isolation between channels and ground surpasses industry norms (typically 500–1000 VAC), protecting against voltage surges in high-voltage environments.
• API 670 Compliance: Built to meet rigorous machinery protection standards, ensuring reliability in critical applications where competitors may lack equivalent certifications.


  EMERSON A6410

6. Selection Recommendations

• Application Complexity:
  Choose the A6410 for systems requiring simultaneous monitoring of valve position and case expansion. For simpler setups, consider single-channel modules if dual functionality is unnecessary.
• Environmental Demands:
  Prioritize this module for outdoor or high-vibration environments. In controlled indoor settings, evaluate modules with narrower temperature ranges to optimize costs.
• System Integration:
  The A6410’s compatibility with Ovation® and DeltaV™ systems makes it ideal for facilities already using Emerson’s process control platforms. For non-Emerson systems, verify protocol compatibility (e.g., ModBus) before deployment.

7. Usage Precautions

• Installation:
  • Use shielded cables for sensor connections and route them separately from power cables (minimum 10 cm distance) to reduce EMI.
  • Mount the module on a grounded DIN rail and torque terminal screws to 0.5 N·m for secure connections in vibrating environments.
• Maintenance:
  • Clean optical connectors quarterly using lint-free wipes and isopropyl alcohol to prevent signal loss.
  • Update firmware via Emerson’s AMS Device Manager to ensure compatibility with the latest DCS software.
• Safety:
  • Power down the system before replacing the module, even though it supports hot-swapping, to avoid electrical shocks.
  • Follow local safety codes for grounding (≤5 Ω) and ensure all wiring complies with NEC/NFPA standards.
