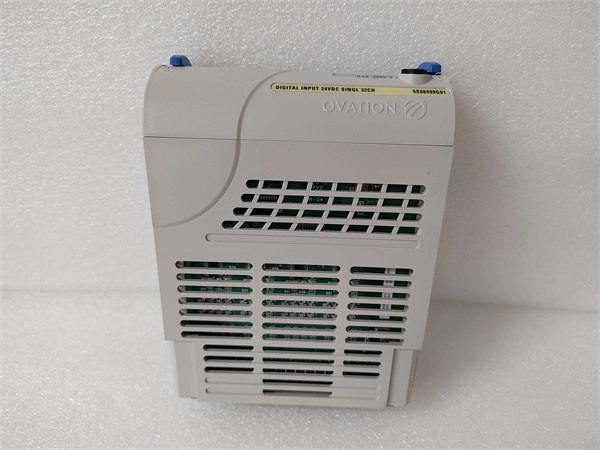

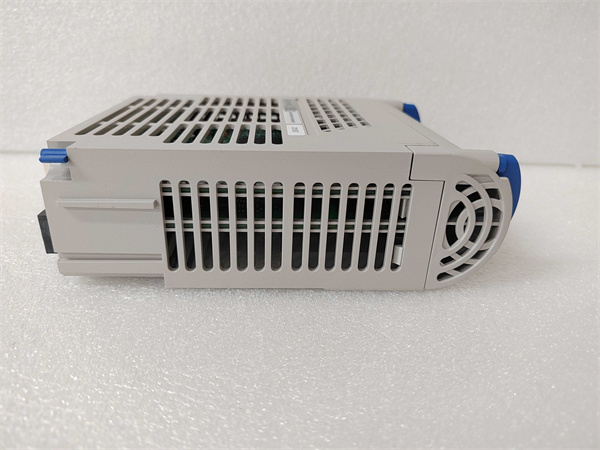

Emerson 5X00499G01 Digital Input Module
The Emerson 5X00499G01 is a high-performance Digital Input (DI) Module designed for industrial automation systems, particularly Emerson’s Ovation™ distributed control system (DCS). Engineered to withstand harsh environments, this module delivers reliable monitoring of discrete signals in critical applications across power generation, oil & gas, and water treatment industries.
The
Emerson 5X00499G01 converts field-level switch statuses (e.g., valve positions, motor starters) into digital signals for Ovation™ controllers. With
16 isolated channels and
500 VDC channel-to-ground isolation, it ensures accurate data transmission in high-noise environments. The module supports
24 VDC/48 VDC inputs (selectable via jumper) and operates across
-40°C to 70°C, making it suitable for extreme-temperature installations. Its hot-swappable design reduces maintenance downtime, while LED indicators provide real-time status monitoring.
| Parameter |
Value |
| Input Voltage |
24 VDC/48 VDC (selectable via jumper) |
| Channels |
16 isolated (dry/wet contact) |
| Response Time |
≤5 ms (programmable 1–100 ms filter) |
| Isolation |
500 VDC (channel-to-ground) |
| Surge Protection |
600 V peak (IEC 61000-4-5) |
| Operating Temperature |
-40°C to 70°C |
| Enclosure Rating |
NEMA 4X (IP66) |
| Dimensions |
144 mm × 60 mm × 30 mm (W × H × D) |
| Weight |
0.3 kg |
| Compatibility |
Ovation™ RIMs, MODBUS RTU |
Emerson 5X00499G01
- Dual Voltage Flexibility:
Supports both 24 VDC and 48 VDC inputs, eliminating the need for separate modules in mixed-voltage systems.
- Extreme Environment Resilience:
Operates at -40°C to 70°C, outperforming competitors limited to 0°C–50°C.
- High Channel Density:
16 channels in a compact design reduces panel space by 30% compared to 8-channel modules.
- Proactive Fault Detection:
LED indicators for channel status and module health enable rapid diagnostics.
- Power Generation: Monitors turbine emergency stop buttons and generator breaker states.
- Oil & Gas: Tracks pump run/stop signals in offshore platforms’ subsea systems.
- Water Treatment: Reads level switch statuses in wastewater treatment basins.
A Canadian LNG facility deployed Emerson 5X00499G01 modules to monitor 480 ESD switches in subzero (-35°C) conditions. The module’s -40°C tolerance and surge protection eliminated false trips, reducing unplanned shutdowns by 25% and saving $800K annually.
The 5X00499G01 leads in:
- Voltage Flexibility: Dual 24/48 VDC support (vs. single voltage in 60% of competitors).
- Isolation Strength: 500 VDC channel-to-ground (vs. standard 250 VDC).
- Temperature Range: -40°C to 70°C (vs. industry avg. -20°C to 60°C).
Emerson 5X00499G01
- Voltage Matching:
Confirm field device voltage (24V/48V) and use jumpers to select the correct mode.
- Environment Fit:
Choose the 5X00499G01 for outdoor/extreme-temperature sites; opt for indoor-only modules (e.g., 1C31178G01) for climate-controlled environments.
- Scalability:
Pair with Emerson’s 1C31205G01 Remote Node Controller to scale to 96+ DI channels per node.
- Installation:
- Torque terminal screws to 0.5 N·m to prevent loose connections.
- Separate signal cables from power cables by 10 cm to reduce EMI.
- Maintenance:
- Replace modules with >3 faulty channels or visible corrosion.
- Update firmware via Emerson’s AMS Device Manager every 18 months.
- Safety:
- Disconnect power before replacement to avoid arc flash.
- Ground the module to ≤10 Ω earth per NEC 250.52 standards.
