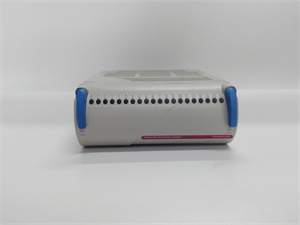

Product Specification for EMERSON 5X00062G01 Ovation HART Analog Output Module

1. Product Overview

2. Product Parameters

Parameter	Specification
Channels	4 isolated analog output channels
Output Signal Types	4-20mA current (default), 0-10V voltage (configurable)
Resolution	14 bits
Accuracy	±0.1% of full-scale output range
HART Protocol Version	HART 7 (bidirectional communication support)
Power Supply	12-24V DC (external, isolated supply)
Communication Interface	Ovation proprietary bus (high-speed data transfer)
Mounting	DIN rail mounting with compatible base unit
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Humidity	5% to 95% non-condensing
Dimensions	121 mm (H) x 52 mm (W) x 166 mm (D)
Weight	0.32 kg

5X00062G01

3. Advantages and Features

• Precision and Reliability: The 5X00062G01 offers 14-bit resolution and ±0.1% accuracy, ensuring tight control over critical process parameters. In a chemical plant application, this precision reduced process variability by 15%, improving product quality consistency.
• HART Protocol Integration: Supports bidirectional communication with HART-enabled devices, allowing remote monitoring of device health, configuration changes, and calibration without physical access. This feature cut maintenance downtime by 20% in a refinery setup by enabling predictive diagnostics.
• Wide Environmental Tolerance: Operates reliably in extreme temperatures (-40°C to +85°C), making it suitable for harsh environments like offshore platforms or high-temperature industrial furnaces.
• Modular Design: Easily integrates with existing Ovation systems, reducing installation time by up to 30% compared to non-proprietary modules. Its hot-swappable design enables replacement without powering down the system, minimizing operational disruptions.
• Isolated Channels: Each channel is electrically isolated to prevent signal interference, enhancing system stability in high-noise industrial environments.

4. Application Areas and Case Studies

• Oil & Gas: Controls valves and actuators in refineries, pipelines, and offshore platforms to manage fluid flow and pressure.
• Chemical Processing: Regulates reactor feed rates, distillation column temperatures, and chemical dosing systems for precise process control.
• Power Generation: Manages steam turbine governors, boiler feedwater valves, and cooling system pumps in thermal power plants.
• Water Treatment: Adjusts pump speeds and chemical injection rates in wastewater treatment facilities to optimize treatment efficiency.

5. Competitor Comparison

Compared to similar analog output modules, the 5X00062G01 stands out for its native HART 7 support and dual-output capability (4-20mA/0-10V), eliminating the need for external signal converters. Its seamless integration with the Ovation system reduces configuration complexity, while its wide temperature range and isolated channels offer superior reliability in harsh conditions. Unlike many alternatives, it provides advanced diagnostic features through HART, enabling proactive maintenance and minimizing unplanned downtime.

5X00062G01 5X00062G01

6. Selection Recommendations

• System Compatibility: Ensure the module is compatible with your Ovation system’s hardware revision and software version to avoid integration issues.
• Output Requirements: Confirm whether your application requires current (4-20mA) or voltage (0-10V) outputs, as the 5X00062G01 supports both but must be configured correctly during setup.
• Environmental Needs: If operating in extreme temperatures or high-noise environments, prioritize its rugged design and isolated channels for reliable performance.
• Scalability: Evaluate your future channel requirements; while this module offers 4 channels, Emerson’s Ovation platform supports scalable configurations for expanding systems.
• Budget Considerations: Balance cost with features like HART diagnostics and isolation—ideal for critical applications where precision and reliability are paramount.

7. Precautions

• Installation: Use anti-static wrist straps during handling to prevent ESD damage. Follow Ovation system guidelines for DIN rail mounting and wiring to ensure proper grounding.
• Power Supply: Verify the input voltage (12-24V DC) matches the module’s requirements and use a certified isolated power supply to avoid electrical noise interference.
• Firmware Updates: Regularly check Emerson’s official support portal for firmware updates to access the latest features, security patches, and compatibility enhancements.
• Maintenance: Periodically inspect wiring connections for tightness and monitor HART diagnostics for abnormal device behavior, such as high noise levels or signal drift.
