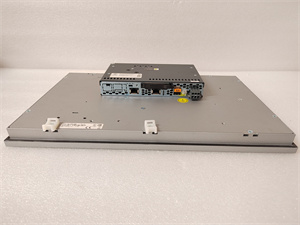

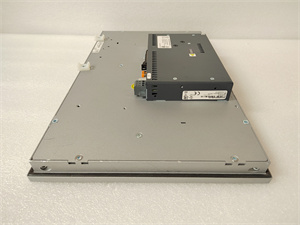

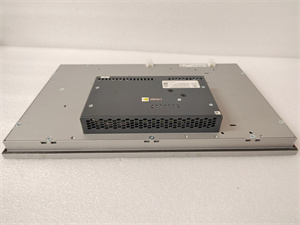

B&R 5AP1130.156C-000 Automation Panel
The
B&R 5AP1130.156C-000 is a 15.6-inch full HD automation panel designed for industrial control and monitoring. With a 1920 × 1080 resolution and projected capacitive multi-touch technology, it delivers crisp visuals and intuitive operation in harsh environments. Built for control cabinet installation in landscape format, this panel supports B&R’s PPC900, PPC2100, PPC3100, and PPC2200 systems, ensuring seamless integration with industrial automation setups. CE, UL, and DNV certifications guarantee compliance with global safety and environmental standards.
| Parameter |
Specification |
| Display Type |
TFT LCD with LED backlight |
| Screen Size |
15.6 inches (16:9 aspect ratio) |
| Resolution |
1920 × 1080 pixels |
| Brightness |
40–450 cd/m² (dimmable) |
| Contrast Ratio |
800:1 |
| Touch Technology |
Projected Capacitive (PCT), 10-point multi-touch |
| Operating Temperature |
0°C to 55°C |
| Humidity |
5%–95% (non-condensing) |
| Vibration Resistance |
0.7 g (DNV Class A) |
| IP Rating |
Front: IP65, Rear: IP20 |
| Weight |
3.7 kg |
- High-Resolution Display: FHD visuals enhance operator efficiency in critical tasks.
- Robust Construction: IP65-rated front panel resists dust and water ingress.
- Multi-Touch Interface: Intuitive control reduces training time for operators.
- Certifications: Compliant with UL, CE, DNV, and LR standards for global deployments.
- Energy Efficiency: Low-power LED backlight extends operational lifespan.
Case Study:
A steel manufacturing plant reduced operator error by 20% using the 5AP1130.156C-000 for real-time process monitoring, leveraging its high-resolution display and responsive touch controls.
- Manufacturing: Machine control, quality inspection systems.
- Energy: Power plant monitoring, renewable energy installations.
- Transportation: Railway signaling, port automation.
- Utilities: Water treatment, HVAC control.
- Superior Resolution: FHD vs. typical HD (1366 × 768) in comparable models.
- Multi-Touch Support: 10-point input vs. single/multi-touch limitations in competitors.
- Certification Breadth: DNV and LR compliance for marine applications, unlike most alternatives.
- Space Efficiency: Opt for this panel when wall/console space is limited.
- High-Impact Environments: Choose it for applications requiring IP65 protection.
- Long-Term Investment: Its modular design supports future firmware updates and scalability.
- Installation: Ensure proper ventilation to maintain operating temperature limits.
- Power Supply: Use a stable 24 VDC source to prevent voltage fluctuations.
- Software Updates: Regularly update firmware via B&R Automation Studio for optimal performance.
- ESD Protection: Follow anti-static protocols during handling to avoid component damage.
声明Shanxi Xinyeda International Trade Co., Ltd. provides
B&R 5AP1130.156C-000 and comprehensive automation solutions. Visit
www.xydcontrol.com or contact us for sales and technical support.
