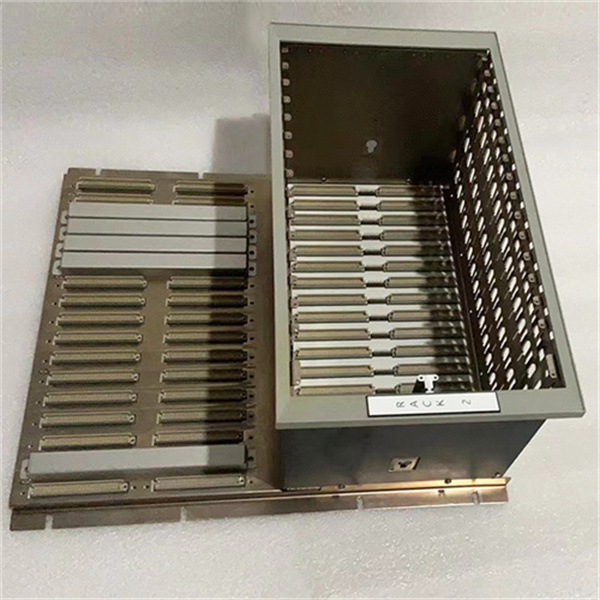

BENTLY NEVADA 3500-05-01-03-00-00-00 7-inch Mini System Rack

1. Product Description

The BENTLY NEVADA 3500-05-01-03-00-00-00 is a compact yet robust 7-inch mini system rack designed for the 3500 Series Machinery Monitoring System. It serves as the foundation for housing critical monitoring modules, power supplies, and communication gateways, ensuring seamless integration and reliable operation in industrial environments. With a modular design, this rack supports up to 4 modules and offers flexible mounting options (wall/panel/rack) to adapt to diverse installation requirements. Compliant with API 670 standards, it is widely used in industries such as oil & gas, power generation, and manufacturing to safeguard rotating equipment like turbines, compressors, and pumps.

2. Product Parameters

Parameter Specification
Model 3500-05-01-03-00-00-00
Rack Size 7-inch mini (4 module slots)
Mounting Options Wall mount, panel mount, 19-inch rack
Weight 4.3 kg
Dimensions 263 × 58 × 28 mm
Module Compatibility 3500/42M (vibration), 3500/25 (keyphasor), 3500/32M (relay), etc.
Power Supply Support Redundant dual-port configuration
Operating Temperature -40°C to +70°C
Certifications CE, RoHS

3. Advantages and Features

  • Compact Design: Space-efficient 7-inch mini rack ideal for limited installation areas.
  • Modular Flexibility: Supports up to 4 modules for tailored monitoring needs.
  • Hot-Swap Capability: Enables safe module replacement without system shutdown.
  • Versatile Mounting: Adaptable to wall, panel, or standard 19-inch rack setups.
  • Redundancy Support: Dual-port power supply configuration ensures continuous operation.

4. Application Areas and Case Studies

  • Oil & Gas: Monitoring gas turbines and compressors in offshore platforms.
  • Power Generation: Protecting steam turbines in thermal power plants.
  • Manufacturing: Ensuring reliability of rotating machinery in automotive assembly lines.
Case Study: A power plant in Saudi Arabia reduced maintenance costs by 25% using the 3500-05-01-03-00-00-00 rack to centralize monitoring of 4 critical turbines, enabling predictive maintenance.

5. Competitor Comparison

Compared to similar system racks, the 3500-05-01-03-00-00-00 offers:
  • Smaller Footprint: 7-inch size vs. larger alternatives.
  • Easier Integration: Pre-configured slots for direct compatibility with 3500 modules.
  • Enhanced Safety: Built-in overvoltage protection and EMI shielding.

6. Selection Recommendations

  • Space Constraints: Opt for the 7-inch mini rack for compact installations.
  • Module Requirements: Ensure slot capacity (4 modules) aligns with your monitoring needs.
  • Mounting Environment: Choose wall/panel/rack options based on accessibility and space.

7. Precautions

  • Installation: Install power supplies and rack interface modules in the far-left slots.
  • Cable Management: Secure wiring to prevent interference and ensure airflow.
  • Environmental Conditions: Avoid exposure to moisture or extreme temperatures.
