BENTLY NEVADA 2300/25-00 Dual-Channel Vibration Monitor
1. Product DescriptionThe
BENTLY NEVADA 2300/25-00 is a compact, standalone vibration monitor designed for continuous machinery health monitoring in industrial applications. As part of the
2300 Series, it supports two seismic/acceleration input channels and one speed input channel for time-synchronous measurements. With features like relay outputs, Ethernet connectivity, and a built-in LCD display, the
2300/25-00 ensures real-time vibration analysis and alarm activation. Ideal for non-critical or spared machinery, it integrates seamlessly with the
3500 Series System for enhanced protection and data management.
2. Technical Specifications
| Parameter |
Specification |
| Model |
2300/25-00 |
| Input Channels |
2 seismic/acceleration + 1 speed |
| Input Signal Range |
-10 VDC to +10 VDC |
| Outputs |
2 relays, 4–20 mA, Modbus TCP, SPA |
| Power Supply |
-24 VDC |
| Power Consumption |
7.7 W |
| Communication |
Ethernet 10/100Base-T |
| Display |
LCD screen |
| Dimensions |
263 × 138 × 88 mm (10.35 × 5.43 × 3.46 in) |
| Weight |
2.35 kg (5.18 lbs) |
| Operating Temperature |
-40°C to +70°C |

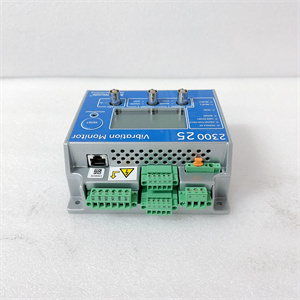

BENTLY NEVADA 2300/25-00
3. Advantages and Features
- Dual-Channel Monitoring: Simultaneously tracks two vibration sources for comprehensive analysis.
- Real-Time Alarming: Programmable relay outputs trigger alerts for high vibration levels.
- Ethernet Connectivity: Enables remote access and integration with plant-wide SCADA systems.
- Modular Design: Compatible with 3500 Series racks, supporting expansion with additional modules.
- Cost-Effective: Reduces downtime by enabling proactive maintenance for non-critical machinery.
4. Application Areas and Use Cases
Industry Applications:
- Oil & Gas: Pumps, compressors, and blowers.
- Power Generation: Turbines and generators.
- Manufacturing: Rotating equipment in production lines.
Case Study: A water treatment plant in North America reduced unplanned downtime by 25% using the 2300/25-00 to monitor pump vibrations. Early detection of bearing wear allowed scheduled repairs, avoiding system failures.
5. Competitor Comparison
- Superior Channel Flexibility: Supports two vibration channels and one speed channel, compared to single-channel alternatives.
- Enhanced Connectivity: Built-in Ethernet and Modbus TCP enable easier integration with modern control systems.
- Compact Footprint: Space-efficient design reduces rack space requirements by 30% compared to legacy models.
-

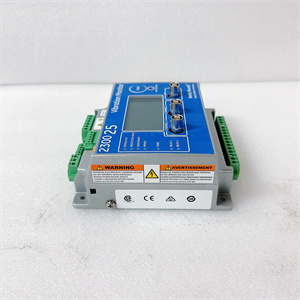

BENTLY NEVADA 2300/25-00
6. Selection Recommendations
- System Compatibility: Ensure compatibility with 3500 Series racks for seamless integration.
- Input Requirements: Verify sensor types (seismic/acceleration) match the monitor’s input specifications.
- Scalability: Pair with 3500/22M transient data modules for advanced signal analysis in larger systems.
7. Precautions
- Sensor Wiring: Use shielded cables to minimize interference in vibration measurements.
- Relay Configuration: Calibrate setpoints according to machinery tolerances to avoid false alarms.
- Software Updates: Regularly update BNMC (Bentley Nevada Monitor Configuration) software for optimal performance.
山西鑫业达国际贸易有限公司 provides
BENTLY NEVADA 2300/25-00 and automation solutions. Visit
www.xydcontrol.com for technical support and product inquiries.
