BENTLY NEVADA 146031-01 Transient Data Interface Module
The

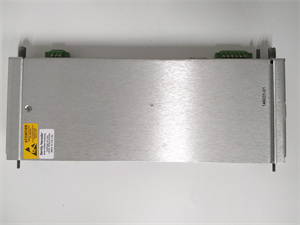

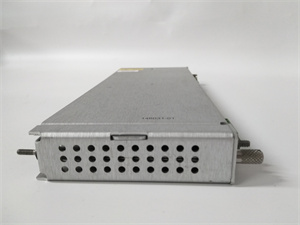

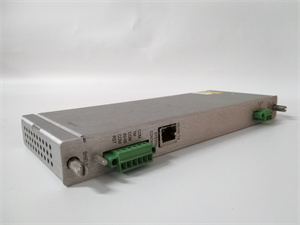

BENTLY NEVADA 146031-01 is a high-performance transient data interface module designed for the
3500 Series Machinery Protection System. It serves as a bridge between the monitoring system and host software, enabling real-time acquisition and transmission of vibration, temperature, and process signals. With support for up to 12 channels of simultaneous data sampling at 100 kHz, this module ensures precise analysis of machinery health in critical applications such as oil refineries, power plants, and chemical processing facilities.
| Parameter |
Specification |
| System Compatibility |
BENTLY NEVADA 3500 Series Monitoring System |
| Data Channels |
12 channels (expandable via modular design) |
| Sampling Rate |
Up to 100 kHz per channel |
| Sensor Types |
Vibration (acceleration/velocity/displacement), RTD/thermocouple, pressure, 4–20 mA |
| Power Supply |
18–36 VDC (via 3500 rack) |
| Communication Interfaces |
RS-485/Modbus RTU, USB-B, Ethernet (10/100BASE-TX/FX) |
| Operating Temperature |
-20°C to +65°C |
| Mounting Style |
Rack-mounted in 3500 Series slots |
- High-Speed Data Acquisition: 100 kHz sampling ensures detailed transient analysis.
- Multi-Sensor Flexibility: Supports vibration, temperature, and process sensors.
- Integrated Communication: Combines 3500/20 Rack Interface Module (RIM) and TDXnet communication processor functions.
- Pre/Post Alarm Capture: Stores data before and after faults for root cause analysis.
- Industries: Oil & gas, power generation, manufacturing, chemical processing.
- Key Applications:
- Vibration analysis of turbines and compressors.
- Condition monitoring of rotating machinery bearings.
- Integration with predictive maintenance systems.
The 146031-01 offers:
- Higher Channel Density: 12 channels vs. 8–10 channels in comparable modules.
- Native Software Integration: Seamless compatibility with BENTLY’s System 1 and 3500 Series.
- Enhanced Diagnostics: Built-in signal conditioning and noise filtering.
- System Integration: Verify compatibility with your 3500 Series rack and software version.
- Data Rate Needs: Choose based on machinery speed (e.g., high-speed turbines require ≥100 kHz).
- Environmental Factors: Ensure operating conditions align with the module’s -20°C to +65°C range.
- Installation: Follow grounding and cable routing guidelines to prevent EMI.
- Sensor Calibration: Regularly validate sensor accuracy for reliable data.
- Firmware Updates: Keep firmware current for optimal performance.
Shanxi XinyeDa International Trade Co., Ltd. supplies
BENTLY NEVADA 146031-01 and automation spare parts. Visit
www.xydcontrol.com or contact us for sales and technical support.
