Description
The

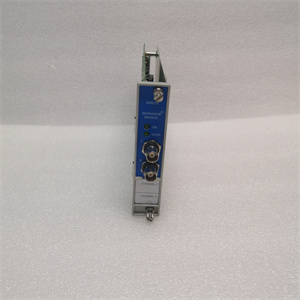

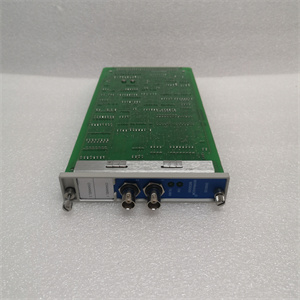

BENTLY 3500/25 125792-01 is a high-performance
keyphasor module designed for the Bentley 3500 Series Machinery Protection System, a cornerstone of industrial condition monitoring. Engineered to accurately detect rotational speed and keyphasor signals in rotating machinery, the
3500/25 125792-01 ensures precise measurement of critical parameters such as shaft position, vibration, and timing events, making it indispensable for reliable machinery protection and performance optimization.
The BENTLY 3500/25 125792-01 serves as a vital component in the 3500 System, converting raw sensor signals into actionable data for machinery health monitoring. Its core functions include:
- Keyphasor Signal Processing: Detects and processes keyphasor signals from proximity probes or optical sensors to establish a reference point for rotational speed (RPM) and phase analysis, essential for synchronizing vibration and displacement measurements.
- Dual-Channel Design: Supports two independent input channels, enabling simultaneous monitoring of two keyphasor sources or redundant sensor setups for enhanced system reliability.
- Wide Sensor Compatibility: Works with Bentley’s 3300 Series proximity probes, inductive speed sensors, and optical sensors, ensuring flexibility in system configuration.
- Real-Time Diagnostics: Features built-in self-test capabilities and sensor fault detection, reducing downtime by identifying issues such as cable breaks or sensor misalignment.
- Industrial Hardening: Designed to operate in harsh environments with resistance to electromagnetic interference (EMI), temperature fluctuations, and mechanical vibrations, meeting industry standards for reliability.
The 3500/25 125792-01 simplifies system integration within the 3500 Series rack, providing a standardized solution for rotational monitoring in critical machinery such as turbines, compressors, and generators.
| Parameter |
Specification |
| Brand |
BENTLY |
| Model |
3500/25 125792-01 |
| Module Type |
Keyphasor and Speed Monitoring Module |
| Input Channels |
2 isolated channels |
| Sensor Types |
Proximity probes (3300 Series), inductive speed sensors, optical sensors |
| Speed Range |
0 to 50,000 RPM (depending on sensor type) |
| Frequency Response |
DC to 10 kHz |
| Output Signals |
4-20 mA analog, digital TTL for speed/timing |
| Power Supply |
24 VDC ±10% (from 3500 System rack) |
| Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Communication |
Serial data via 3500 System communication bus |
| Dimensions |
140 mm (H) x 48 mm (W) x 240 mm (D) |
BENTLY 350025 125792-01
- Precision Measurement: Delivers speed accuracy within ±0.01% of reading, ensuring reliable rotational data for control systems and protection logic.
- Redundancy Support: Dual-channel configuration allows for sensor redundancy, minimizing the risk of data loss in critical applications.
- Easy Configuration: User-friendly software tools enable quick setup and calibration, reducing commissioning time by up to 30% compared to legacy systems.
- Diagnostic Capability: Continuous monitoring of sensor health and signal integrity, with fault alerts transmitted to the 3500 System’s operator interface.
- Longevity: Built with high-quality components and rigorous testing, achieving a mean time between failures (MTBF) exceeding 200,000 hours in industrial environments.
- Energy Sector: Turbines, generators, and steam compressors in power plants.
- Oil and Gas: Pump systems, gas compressors, and rotating machinery in upstream/downstream facilities.
- Manufacturing: High-speed motors, conveyor systems, and precision rotating equipment in production lines.
- Marine: Propulsion systems and shipboard machinery monitoring.
A major petrochemical plant in Texas integrated the BENTLY 3500/25 125792-01 into its compressor monitoring system. The module’s dual-channel capability allowed real-time tracking of both primary and backup keyphasor sensors, ensuring uninterrupted speed measurement during a sensor replacement event. This prevented unexpected downtime and improved maintenance planning, resulting in a 15% reduction in annual maintenance costs for the compressor fleet.
Compared to alternative keyphasor solutions, the 3500/25 125792-01 stands out for its:
- Seamless System Integration: Native compatibility with the 3500 Series ecosystem, eliminating the need for external converters or custom programming.
- Extreme Environment Performance: Wide temperature range and EMI resistance, outperforming many competitors in harsh industrial settings.
- Advanced Diagnostics: Comprehensive self-test features that proactively identify issues, reducing reliance on manual inspections.
BENTLY 350025 125792-01
When selecting the 3500/25 125792-01, consider:
- System Compatibility: Ensure your existing setup uses the Bentley 3500 Series rack and compatible sensors (e.g., 3300 Series proximity probes).
- Channel Requirements: Evaluate if dual-channel capability is necessary for your application (e.g., redundant sensors or multi-shaft monitoring).
- Environmental Conditions: Confirm the module’s temperature and EMI resistance align with your machinery’s operating environment.
- Data Output Needs: Verify that the 4-20 mA and digital outputs match your control system’s input requirements.
- Installation: Mount the module in a 3500 Series rack using standard hardware, ensuring proper grounding to minimize EMI interference.
- Wiring: Use shielded cables for sensor connections and follow Bentley’s guidelines for cable length and termination to maintain signal integrity.
- Calibration: Perform initial calibration with a known speed reference to ensure accurate RPM readings, and repeat calibration annually or after system modifications.
- Software Updates: Regularly update the module’s firmware through the 3500 System software to access the latest features and diagnostics.
