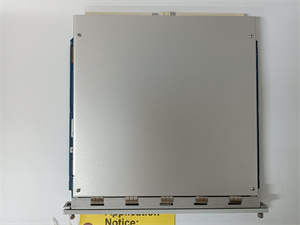

Bentley Nevada 3500/22M 288055-01 Transient Data Interface Module
The
Bentley Nevada 3500/22M 288055-01 is a high-performance
Transient Data Interface (TDI) Module designed for the
3500 Series Machinery Protection System. It bridges the gap between the monitoring system and compatible software, enabling real-time collection and analysis of steady-state and transient dynamic data. With support for Ethernet communication and modular integration, the module enhances predictive maintenance capabilities in critical industries such as power generation, oil and gas, and manufacturing. Its robust construction and advanced signal processing ensure reliable operation in harsh environments.
| Parameter |
Specification |
| Input Voltage |
24 V DC (Standard) / 220 V AC (Optional) |
| Communication Interface |
Ethernet, RS-485 |
| Data Sampling Rate |
Up to 1 kHz |
| Resolution |
16-bit |
| Input Channels |
8 (Expandable) |
| Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Enclosure Rating |
IP67 (dust and water resistance) |
| Mounting |
Rack-mounted (3500 Series compatible) |
- Dual Voltage Flexibility: Supports both 24 V DC and 220 V AC inputs, adapting to diverse power supply requirements.
- IP67 Protection: Sealed design withstands extreme conditions, including dust, moisture, and vibrations.
- High-Speed Data Transfer: 10 Mbps Ethernet connectivity ensures rapid transmission of transient waveforms for advanced diagnostics.
- Modular Architecture: Easy integration with 3500 Series racks and compatibility with M-Series monitors (e.g., 3500/40M, 3500/42M).
Industries:
- Power generation (turbines, generators)
- Oil and gas (pumps, compressors)
- Manufacturing (rotating machinery)
Case Study:
A U.S. power plant deployed the 3500/22M 288055-01 to monitor steam turbine vibrations. By analyzing transient data during startup/shutdown cycles, the module detected early signs of rotor imbalance, preventing a $500,000 breakdown and reducing downtime by 40%.
The 3500/22M 288055-01 outperforms comparable modules with:
- IP67 Enclosure: Most competitors offer lower protection ratings (e.g., IP54), limiting outdoor use.
- Dual Voltage Support: Eliminates the need for external voltage converters, reducing system complexity.
- Integrated Ethernet: Direct connectivity to host software simplifies setup compared to modules requiring additional gateways.
- Voltage Requirements: Choose 24 V DC or 220 V AC versions based on site infrastructure.
- Environment: Opt for IP67 models for outdoor or high-humidity settings.
- Expansion Needs: Pair with 3500 Series racks for scalable channel capacity.
- Cable Management: Use shielded Ethernet cables to minimize signal interference.
- Ventilation: Ensure adequate airflow around the module to prevent overheating in enclosed spaces.
- Software Updates: Regularly update firmware to access new features and bug fixes.
Shanxi Xinyeda International Trade Co., Ltd. provides the
Bentley Nevada 3500/22M 288055-01 module and comprehensive automation solutions. Visit
www.xydcontrol.com or contact us for sales, technical support, and vibration monitoring expertise.
