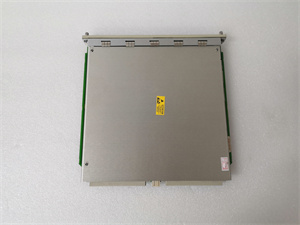

BENTLY NEVADA 3500/22M 138607-01 Transient Data Interface Module
The
BENTLY NEVADA 3500/22M 138607-01 is a transient data interface (TDI) module designed for BENTLY’s 3500 condition monitoring systems. It bridges the 3500 rack with compatible software such as System 1 and 3500 Configuration Software, enabling real-time data transmission and analysis. Combining the functions of a 3500/20 Rack Interface Module (RIM) and a TDXnet communication processor, this module collects steady-state and transient dynamic data from M-series monitors (e.g., 3500/40M, 3500/42M) and delivers it via Ethernet to host systems.
| Parameter |
Specification |
| Model |
3500/22M 138607-01 |
| Compatibility |
BENTLY NEVADA 3500 monitoring systems |
| Power Consumption |
10.5 W |
| Data Rate |
115.2 kbaud |
| Ethernet Support |
10Base-T/100Base-TX (auto-sensing), 100Base-FX (fiber-optic) |
| Operating Temperature |
-30°C to +65°C |
| Storage Temperature |
-40°C to +85°C |
| Humidity |
95% non-condensing |
| Weight |
0.82 kg |
| Dimensions |
24.1 cm × 11.4 cm × 2.5 cm (9.5 in × 4.5 in × 1 in) |
| Front Panel Interfaces |
USB-B, Ethernet, Rack Reset Button |
- Dual-Mode Functionality: Combines RIM and communication processor capabilities, reducing hardware complexity.
- High-Speed Data Collection: Supports continuous steady-state and transient waveform data acquisition for predictive maintenance.
- Flexible Connectivity: Auto-sensing Ethernet and fiber-optic options ensure compatibility with diverse network setups.
- Secure Configuration: Keylock switch allows secure 切换 between RUN (operation only) and PROGRAM (configuration) modes, preventing unauthorized changes.
- LED Indicators: Real-time status monitoring via OK, TX/RX, TM, and Config OK LEDs.
Industries:
- Power generation, oil and gas, petrochemicals, manufacturing, and rotating machinery.
典型应用:
- Monitoring axial displacement, tile vibration, and temperature in compressors, turbines, and pumps.
Case Study: A U.S. power plant reduced downtime by 20% using the 3500/22M 138607-01 to detect early-stage bearing faults in steam turbines, enabling proactive maintenance.
The BENTLY NEVADA 3500/22M 138607-01 surpasses alternatives with:
- Unified Data Management: Integrates both static and dynamic data collection in a single module.
- Long-Term Data Retention: Stores pre/post-alarm data (e.g., 10 minutes of static data before and 1 minute after events).
- Enhanced Security: Lockable configuration mode ensures compliance with industrial cybersecurity standards.
- System Compatibility: Verify compatibility with your 3500 rack and M-series monitors.
- Data Requirements: Choose this module if high-frequency transient data analysis is critical for your application.
- Network Infrastructure: Opt for fiber-optic support (100Base-FX) in environments with electromagnetic interference.
- Installation: Use anti-static measures during handling and ensure proper grounding.
- Configuration: Avoid modifying settings in RUN mode to prevent accidental system disruptions.
- Firmware Updates: Regularly update firmware to access new features and security patches.
