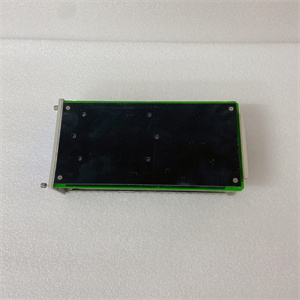

Bently 3500/15 133292-01

Description

1. Product Overview

2. Technical Specifications

Parameter	Specification
Model	3500/15 133292-01
Power Type	Low Voltage DC (20–30 Vdc)
Input Voltage Range	20–30 Vdc
Module Type	Half-height
Installation Slot	Left-side designated slots in the 3500 rack
Redundancy Support	Optional dual-power configuration (primary/backup)
Weight	2 kg
Dimensions	30 cm × 20 cm × 20 cm (L × W × H)
Warranty	1 year

Bently 3500/15 133292-01

3. Key Features and Benefits

• Dual Power Redundancy:
  • Supports single or dual power supply configurations.
  • When two modules are installed, the lower slot acts as the primary supply, and the upper slot serves as a backup for uninterrupted operation.
• Wide Voltage Compatibility:
  • Accepts 20–30 Vdc input, suitable for diverse industrial power systems.
• Space-Saving Design:
  • Half-height form factor reduces rack space requirements.
• Hot-Swap Capability:
  • Replaceable without powering down the system, minimizing downtime.
• Rugged Construction:
  • Built for harsh environments (e.g., oil & gas, power plants) with stable performance under extreme conditions.

4. Installation and Configuration

• Slot Placement:
  • Must be installed in the left-side slots of the 3500 rack.
  • For dual-power setups, the primary module occupies the lower slot, and the backup occupies the upper slot.
• Power Distribution:
  • Each power supply module feeds an independent power distribution network, ensuring isolation in case of faults (e.g., +5 V short circuits).
• Compatibility:
  • Works with 3500 series modules (e.g., vibration, temperature, and process variable monitors).

5. Applications

• Industries:
  • Oil & gas, power generation, petrochemicals, manufacturing.
• Use Cases:
  • Powering BENTLY NEVADA 3500 monitoring systems for real-time vibration analysis, rotor dynamics, and fault detection.
  • Ensuring continuous operation of critical machinery through redundant power support.
  •

    Bently 3500/15 133292-01

6. Precautions

• Voltage Verification:
  • Ensure input voltage matches the module’s 20–30 Vdc range to avoid damage.
• Redundancy Setup:
  • For critical systems, use dual modules to prevent power outages.
• Firmware Updates:
  • Regularly update firmware to maintain compatibility with the 3500 system.

7. Competitive Comparison

• Cost-Effective Redundancy: Affordable dual-power configuration compared to some competitors.
• Flexible Input Range: Supports low-voltage DC inputs, unlike some AC-only alternatives.
• Modular Design: Easy integration with existing 3500 racks.
