Description

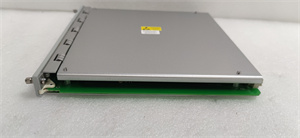

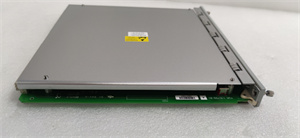

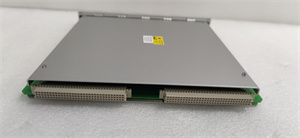

BENTLY 135799-01 Display Interface Module
The BENTLY 135799-01 is a high-performance display interface module designed for the Bently Nevada 3500 Machinery Protection System. It provides real-time visualization of critical machinery health data, alarms, and system status, ensuring operators can monitor rotating equipment performance effectively.
The
BENTLY 135799-01 module is engineered to meet API 670 standards, delivering reliable monitoring for industrial machinery such as turbines, compressors, and pumps. It supports local or remote display of data from the 3500 rack, enabling users to access parameters like vibration, temperature, and speed. The module features a 640×200 reflective or transflective LCD display, offering both graphical and text-based information. With multiple mounting options (face, 19-inch rack, panel, or independent), it adapts seamlessly to diverse industrial environments.
| Parameter |
Specification |
| Input Voltage |
115/230 VAC (external power supply) |
| Power Consumption |
15.5 W (max for display + module) |
| Display Type |
640×200 reflective/transflective LCD |
| Communication |
RS422, Modbus protocol (AEG PI-MBUS 300) |
| Operating Temperature |
-30°C to +65°C |
| Compatibility |
Bently Nevada 3500 rack systems |
- High Reliability: Built with redundant communication channels and dual power supply support (via external modules), ensuring uninterrupted operation.
- Flexible Installation: Four mounting options (face, 19-inch rack, panel, independent) allow integration into various setups.
- Real-Time Monitoring: Updates data every second, with clear status indicators (OK/Alert/Danger LEDs) for immediate issue detection.
- User-Friendly Interface: Intuitive LCD display with graphical and text formats simplifies data interpretation.
Industries: Power generation, oil & gas, chemical, and manufacturing.
Use Cases:
- In a power plant, the BENTLY 135799-01 monitors turbine vibration levels, triggering alarms when thresholds are exceeded to prevent catastrophic failures.
- In a petrochemical facility, it tracks compressor performance, enabling predictive maintenance and reducing downtime.
Compared to similar modules, the BENTLY 135799-01 offers superior compatibility with Bently Nevada’s 3500 system, faster data refresh rates, and enhanced environmental resilience (operating temperature range of -30°C to +65°C).
- Compatibility: Ensure compatibility with your existing 3500 rack configuration.
- Mounting Needs: Choose between face, rack, panel, or wall-mounted options based on your setup.
- Power Supply: If remote mounting (over 100 feet), use the external power supply for stable operation.
- Installation: Follow API 670 guidelines for proper wiring and grounding.
- Maintenance: Regularly inspect cables and connectors for wear.
- Software Updates: Keep the 3500 Rack Configuration Software up-to-date for optimal performance.
山西鑫业达国际贸易有限公司 is your trusted partner for
BENTLY 135799-01 and other automation spare parts. Visit
www.xydcontrol.com or contact us for sales and technical support.
