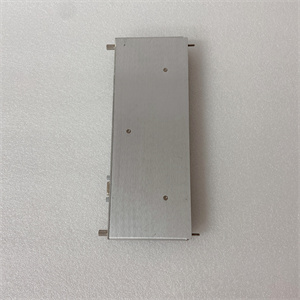

Bentley Nevada 136188-01 Communication Gateway Module

1. Product Description

The Bentley Nevada 136188-01 is a high-performance communication gateway module designed for industrial automation systems. It serves as a critical component of the 3500 Mechanical Health Monitoring System, enabling seamless data integration between field devices, control systems, and cloud platforms. With support for Ethernet (TCP/IP) and serial communication (RS232/RS422/RS485), the module bridges different protocols, including Modbus RTU and Modbus TCP, making it ideal for real-time monitoring and predictive maintenance in complex industrial environments. Its robust design ensures reliability in harsh conditions, such as extreme temperatures and high electromagnetic interference.

2. Key Technical Parameters

Parameter Specification
Communication Interfaces 1×RJ45 (10Base-T Ethernet), 1×RS232/RS485
Protocol Support Modbus RTU, Modbus TCP, TCP/IP
Power Supply 24–30 V DC
Power Consumption 5.0 W (typical with Modbus RS232)
Data Rate Ethernet: 10 Mbps; Serial: 19.2 kbps
Operating Temperature -40°C to +70°C
Certifications CE, ISO 9001
Dimensions 89 mm × 89 mm × 25 mm

3. Advantages and Features

  • Multi-Protocol Conversion: Seamlessly integrates Ethernet and serial communication, supporting bidirectional data exchange between Modbus RTU and Modbus TCP networks.
  • Remote Management: Enables remote configuration, diagnostics, and firmware updates via Ethernet, reducing downtime and maintenance costs.
  • Industrial-Grade Reliability: Built with robust materials and designed to withstand dust, moisture, and temperature fluctuations, ensuring continuous operation in challenging environments.
  • Flexible Integration: Compatible with Bentley Nevada’s 3500 series systems and widely used in SCADA, PLC, and IoT applications.

4. Application Areas and Case Studies

Industries:
  • Power generation (gas turbines, generators)
  • Oil and gas
  • Manufacturing and production lines
  • Water treatment and chemical processing
Case Study:
A steel plant in China deployed the Bentley Nevada 136188-01 to monitor vibration and temperature data from rolling mills. The module’s real-time data transmission capabilities reduced unplanned downtime by 30%, improving operational efficiency and extending equipment lifespan.

5. Competitor Comparison

Compared to similar products, the Bentley Nevada 136188-01 offers:
  • Higher data throughput with 10 Mbps Ethernet support.
  • Broader protocol compatibility, including native support for Modbus RTU and TCP.
  • Enhanced ruggedness, with a wider temperature range (-40°C to +70°C) compared to standard modules.

6. Selection Recommendations

  • System Compatibility: Ensure compatibility with existing 3500/92 racks and software.
  • Interface Requirements: Choose RS232 or RS485 based on field device connectivity.
  • Data Volume: For high-bandwidth applications, consider pairing with the 136188-02 module (gigabit Ethernet support).

7. Precautions

  • Installation: Follow Bentley Nevada’s wiring guidelines to prevent signal interference.
  • Redundancy: Implement dual-gateway configurations for critical systems to avoid single points of failure.
  • Firmware Updates: Regularly update firmware to access new features and security patches.
