Bentley Nevada 135489-04

  • Intrinsic Safety: Internal barriers isolate the module from external hazards, reducing installation complexity in explosive zones.
  • Simplified Integration: Built-in terminations minimize wiring requirements, speeding up commissioning.
  • Accurate Signal Conditioning: Converts raw proximity sensor data into precise measurements for vibration, eccentricity, and thrust position.
  • Wide Environmental Tolerance: Operates reliably in extreme temperatures and harsh industrial conditions.
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

1. Product Description

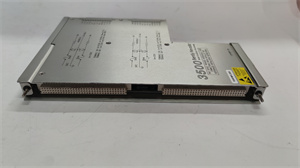

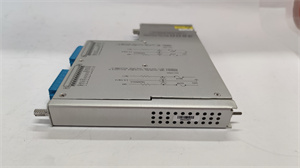

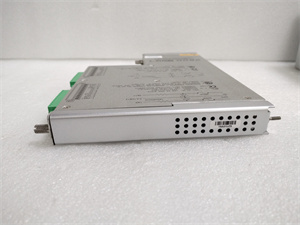

The Bentley Nevada 135489-04 is a high-reliability proximitor I/O module designed for the 3500 Mechanical Health Monitoring System, specializing in real-time vibration and position monitoring of rotating machinery. With 4 input channels, it interfaces with proximity transducers to convert raw signals into conditioned voltage outputs for analysis. The module features internal barriers and terminations, eliminating the need for external safety components and simplifying installation in hazardous environments. It supports intrinsic safety certifications (e.g., ATEX, IECEx), ensuring compliance with global standards for explosive atmospheres.

2. Key Technical Parameters

Parameter Specification
Input Channels 4 (proximity transducers)
Signal Type Proximity sensor signals (e.g., 3300 XL)
Output Voltage (conditioned for alarms/control)
Power Supply 24 V DC
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +70°C
Hazardous Area Certification ATEX/IECEx (Zone 2), CSA (Class I, Div 2)
Dimensions 16 cm × 16 cm × 12 cm

3. Advantages and Features

  • Intrinsic Safety: Internal barriers isolate the module from external hazards, reducing installation complexity in explosive zones.
  • Simplified Integration: Built-in terminations minimize wiring requirements, speeding up commissioning.
  • Accurate Signal Conditioning: Converts raw proximity sensor data into precise measurements for vibration, eccentricity, and thrust position.
  • Wide Environmental Tolerance: Operates reliably in extreme temperatures and harsh industrial conditions.

4. Application Areas and Case Studies

Industries:
  • Oil and gas refining
  • Power generation (turbines, generators)
  • Chemical processing
  • Heavy machinery manufacturing
Case Study:
A petrochemical plant in Saudi Arabia deployed the 135489-04 to monitor compressor vibrations in a Zone 2 hazardous area. The module’s intrinsic safety design and real-time alerts reduced unplanned downtime by 30%, enabling predictive maintenance and cost savings.

5. Competitor Comparison

Compared to standard I/O modules:
  • Enhanced Safety: Native intrinsic safety certification eliminates the need for external barriers.
  • Space Efficiency: Internal terminations reduce panel space requirements by 40%.
  • Temperature Range: Supports broader operational temperatures (-40°C vs. typical -20°C).

6. Selection Recommendations

  • System Compatibility: Ensure compatibility with Bentley Nevada’s 3500 rack and System 1 software.
  • Environment: Opt for this module if working in hazardous zones requiring ATEX/IECEx compliance.
  • Channel Needs: Choose 4-channel configurations for machinery with multiple critical measurement points.

7. Precautions

  • Installation: Follow Bentley Nevada’s guidelines for grounding and wiring to avoid signal interference.
  • Safety Compliance: Verify hazardous area certifications match local regulations.
  • Maintenance: Regularly inspect connectors and firmware updates to ensure optimal performance.
