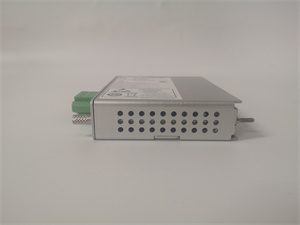

Bentley Nevada 106M1079-01 Universal AC Power Supply Module
The
Bentley Nevada 106M1079-01 is a versatile AC power supply module designed for the
3500 Series Machinery Protection System, providing stable 24 VDC and 120 VAC outputs for critical industrial monitoring and control applications. With a wide input range (85–264 VAC, 47–63 Hz), it adapts to global power standards, ensuring reliability in sectors like power generation, oil and gas, and manufacturing. This module supports redundant configurations, hot-swap capabilities, and meets API 670/612 safety requirements, making it ideal for protecting rotating machinery such as turbines and compressors.
| Parameter |
Specification |
| Input Voltage |
85–264 VAC (universal AC) |
| Input Frequency |
47–63 Hz |
| Output Voltage |
24 VDC ±1%, 120 VAC ±2% |
| Output Current |
4.2 A DC, 1.25 A AC |
| Efficiency |
>85% |
| Compatibility |
Bentley Nevada 3500/15 Power System |
| Redundancy Support |
Dual-power configuration (primary/backup) |
| Dimensions |
5.1 cm × 25.2 cm × 12 cm (2.0 × 9.9 × 4.7 in) |
| Weight |
1.14 kg (2.5 lb) |
| Operating Temperature |
-25°C to +70°C |
- Wide Voltage Adaptability: Supports global voltage ranges, reducing compatibility challenges in international projects.
- Dual Output Design: Delivers both 24 VDC for system power and 120 VAC for auxiliary devices, simplifying integration.
- High Efficiency: Minimizes heat generation and energy waste, ensuring stable operation in harsh environments.
- Hot-Swap Capability: Enables maintenance without system shutdown, enhancing uptime.
- Compact Size: Occupies 30% less space than legacy models like the 127610-01, optimizing panel layout.
Industries:
- Power generation (gas/steam turbines)
- Oil and gas (pumps, compressors)
- Manufacturing (rotating machinery)
Case Study:
A European power plant upgraded its turbine monitoring system with the 106M1079-01, replacing outdated single-output modules. The dual outputs eliminated the need for external converters, reducing installation costs by 20% and improving system reliability during voltage fluctuations.
The 106M1079-01 outperforms standard modules with:
- Simultaneous Dual Outputs: Integrates both DC and AC power in a single unit, unlike many competitors requiring separate modules.
- Faster Redundancy Switching: <5 ms response time for power source transitions, ensuring continuous operation.
- Higher Power Density: Delivers 4.2 A DC and 1.25 A AC in a compact form factor, exceeding similar-sized alternatives.
- System Compatibility: Verify integration with Bentley Nevada’s 3500/15 power racks.
- Redundancy Needs: Use dual modules in safety-critical applications to prevent downtime.
- Space Constraints: Opt for this module in installations where panel space is limited.
- Installation: Install in the upper slot of the 3500/15 rack; pair with a 106M1081-01 input module for full redundancy.
- Wiring: Use shielded cables for signal lines to minimize interference.
- Maintenance: Replace fuses (e.g., 120M3877) only with specified parts to avoid damage.
Shanxi Xinyeda International Trade Co., Ltd. offers
Bentley Nevada 106M1079-01 modules and comprehensive automation solutions. Visit
www.xydcontrol.com or contact us for sales, technical support, and global logistics.
