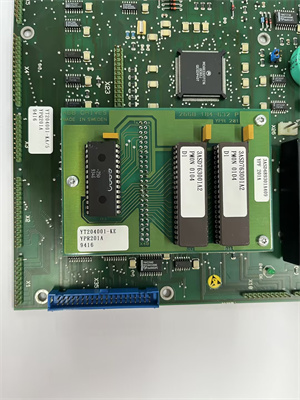

YT204001-KA5
YT204001-KA5
YT204001-KA5
YT204001-KA5

YT204001-KA5

  • High Performance:
    • The YT204001-KA5 leverages a 600 MHz ARM Cortex-A9 processor to handle complex control algorithms and data-intensive tasks, ensuring rapid response times (<10 ms) for critical operations.
    • Supports multitasking and real-time operating systems (RTOS) for synchronized control of multiple processes.
  • Flexible Integration:
    • Features PROFIBUS DP V1 and Ethernet interfaces for seamless connectivity with ABB PLC systems (e.g., AC500, AC800M) and third-party devices.
    • Modular design allows easy expansion via PCIe slots for additional I/O modules or communication cards.
  • Reliability & Safety:
    • Built with 2.5kV electrical isolation and surge protection to withstand voltage spikes and electromagnetic interference (EMI) in industrial settings.
    • Wide temperature range (-20°C to +70°C) ensures stable operation in extreme environments.
  • User-Friendly Configuration:
    • Pre-installed ABB Engineering Tools for parameterization, diagnostics, and firmware updates.
    • Compact DIN rail mount simplifies installation in control cabinets.
Get a Quote
Manufacturer:
Part number: YT204001-KA5
Our extensive catalogue, including : YT204001-KA5 , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

ABB YT204001-KA5 Product Documentation

1. Product Overview

The ABB YT204001-KA5 is a high-performance CPU board designed for industrial automation and process control systems. As part of ABB’s YPQ201A series, this module serves as the central processing unit (CPU) for distributed control systems (DCS) and programmable logic controllers (PLCs), enabling seamless integration with field devices, sensors, and actuators. Built with advanced signal processing capabilities, the YT204001-KA5 ensures reliable data acquisition, real-time control, and system diagnostics in harsh industrial environments.

2. Technical Specifications

Parameter Specification
Input Voltage 24V DC ±10%
Memory 128 MB RAM, 64 MB Flash
Communication PROFIBUS DP V1, RS485, Ethernet
Processor 32-bit ARM Cortex-A9 @ 600 MHz
I/O Interfaces 8 x Digital Inputs, 8 x Digital Outputs
Expansion Slots 2 x PCIe, 1 x USB 2.0
Operating Temperature -20°C to +70°C
Dimensions 100mm x 50mm x 30mm
Mounting DIN rail or panel mount
YT204001-KA5

YT204001-KA5

3. Key Advantages & Features

  • High Performance:
    • The YT204001-KA5 leverages a 600 MHz ARM Cortex-A9 processor to handle complex control algorithms and data-intensive tasks, ensuring rapid response times (<10 ms) for critical operations.
    • Supports multitasking and real-time operating systems (RTOS) for synchronized control of multiple processes.
  • Flexible Integration:
    • Features PROFIBUS DP V1 and Ethernet interfaces for seamless connectivity with ABB PLC systems (e.g., AC500, AC800M) and third-party devices.
    • Modular design allows easy expansion via PCIe slots for additional I/O modules or communication cards.
  • Reliability & Safety:
    • Built with 2.5kV electrical isolation and surge protection to withstand voltage spikes and electromagnetic interference (EMI) in industrial settings.
    • Wide temperature range (-20°C to +70°C) ensures stable operation in extreme environments.
  • User-Friendly Configuration:
    • Pre-installed ABB Engineering Tools for parameterization, diagnostics, and firmware updates.
    • Compact DIN rail mount simplifies installation in control cabinets.

4. Applications & Case Studies

The ABB YT204001-KA5 excels in:
  • Manufacturing: Machine tool control, robotics, and conveyor systems.
  • Energy: Power plant monitoring, renewable energy (solar/wind) integration.
  • Water Treatment: Pump station management and wastewater processing.
Case Study:
A chemical plant in Germany upgraded its DCS system with the YT204001-KA5 to manage 200+ process variables. The module’s high-speed processing reduced batch cycle times by 15% while improving product quality consistency through precise real-time control.

5. Competitive Comparison

Feature ABB YT204001-KA5 Competitor Models
Processor Speed 600 MHz 400–500 MHz
Isolation Rating 2.5kV 1.5–2kV
Temperature Range -20°C to +70°C 0°C to +60°C
Communication PROFIBUS DP V1 + Ethernet Proprietary protocols
YT204001-KA5

YT204001-KA5



The YT204001-KA5 outperforms competitors with its faster processor and wider temperature range, ensuring compatibility with diverse industrial applications.

6. Selection Recommendations

  • Compatibility: Verify compatibility with your PLC/DCS system (e.g., ABB AC500, AC800M).
  • Processing Needs: Choose the YT204001-KA5 for applications requiring high-speed data processing (e.g., robotics, power generation).
  • Expansion: Opt for modules with additional PCIe slots if future scalability is required.

7. Installation & Maintenance Tips

  • Wiring: Use shielded cables to prevent interference; observe polarity for DC inputs.
  • Safety: Power off the system before connecting/disconnecting the module.
  • Calibration: Regularly update firmware and perform diagnostic checks using ABB’s engineering software.
