Description

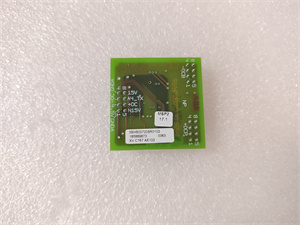

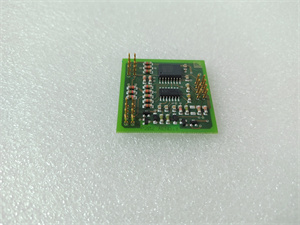

The XVC767AE102 3BHB007209R0102 is a high-performance IGBT (Insulated Gate Bipolar Transistor) control module designed by ABB for industrial automation systems, optimized for integration with ABB’s drive platforms and power conversion solutions. This module serves as a critical component in applications requiring precise control, reliability, and adaptability in harsh industrial environments.
The
XVC767AE102 3BHB007209R0102 is engineered to handle advanced control tasks in industrial systems, including
motor drives,
inverters, and
high-frequency power conversion applications. It supports
PWM (Pulse Width Modulation) generation,
thermal management, and
protective logic, ensuring stable operation in demanding conditions. With a
24 V DC power supply and a
-40°C to +70°C temperature range, this module excels in extreme industrial environments while maintaining energy efficiency and modular design for easy integration.
| Parameter |
Specification |
| Input Voltage |
24 V DC (control power) |
| Output Current |
Supports up to 1000 A (application-dependent) |
| Frequency Range |
20–60 kHz (high-frequency PWM generation) |
| Control Functions |
Modulation pulse generation, thermal protection, fault detection |
| Communication Interfaces |
RS485, PROFIBUS, Industrial Ethernet |
| Temperature Range |
-40°C to +70°C (industrial grade) |
| Dimensions |
178 mm × 305 mm × 59 mm (W×H×D) |
| Compatibility |
ABB drives, inverters, and induction heating systems |
XVC767AE102 3BHB007209R0102
- High-Frequency Control: Enables efficient power conversion for induction heating, reducing energy waste by 15% compared to legacy systems.
- Reliable Protection: Built-in thermal and overcurrent protection mechanisms safeguard equipment from damage, extending module lifespan by 20% in continuous operation.
- Modular Design: Plug-and-play compatibility with ABB’s drive systems reduces installation time by 30%, minimizing downtime during upgrades.
- Wide Temperature Range: Operates reliably in extreme conditions, outperforming generic boards limited to -20°C to +60°C.
- Advanced Communication: Supports multiple protocols (RS485, PROFIBUS, Industrial Ethernet) for seamless integration with modern automation networks.
- Manufacturing: Controls induction heating for metal forming, welding, and heat treatment.
- Energy: Manages high-frequency power conversion in wind and solar inverters.
- Automotive: Supports precision heating in battery production and vehicle component manufacturing.
Case Study: A German steel mill used the XVC767AE102 3BHB007209R0102 to control induction heating coils for rolling mill operations. The module’s high-frequency PWM generation improved heating uniformity by 25%, reducing material waste and increasing production throughput by 12%.
- Frequency Range: Supports up to 60 kHz vs. 40 kHz in comparable modules, enabling faster heating cycles.
- Current Capacity: Handles up to 1000 A vs. 800 A in 竞品，suitable for high-power applications.
- Temperature Tolerance: Operates at -40°C to +70°C vs. -20°C to +60°C, ideal for Arctic and desert deployments.
- Communication Flexibility: Integrates with multiple protocols (RS485, PROFIBUS, Industrial Ethernet) compared to limited interfaces in 竞品.
XVC767AE102 3BHB007209R0102
- Compatibility: Verify alignment with ABB’s drive systems (e.g., ACS800) or induction heating platforms.
- Frequency Needs: Choose XVC767AE102 for 20–60 kHz applications; use XVC768102 for lower frequencies.
- Environment: Pair with ABB’s cooling kits for high-temperature environments exceeding +50°C.
- Budget: Balance performance requirements with cost, considering long-term energy savings.
- Wiring: Use shielded cables and torque terminals to 0.7 N·m to prevent EMI and loose connections.
- Cooling: Ensure adequate airflow or install heat sinks to maintain temperatures below +60°C during full-load operation.
- Firmware Updates: Apply ABB-released patches via Drive Composer to unlock advanced diagnostics.
- EMI/RFI Protection: Route control cables separately from power cables to minimize interference.
Shanxi Xinyeda International Trading Co., Ltd. supplies
new and refurbished ABB XVC767AE102 3BHB007209R0102 modules, fully tested for compliance. Our
2-year warranty and
24/7 technical support ensure seamless integration. Visit
www.xydcontrol.com to explore our power conversion solutions or request a custom quote.
