UFC760BE42 3BHE004573R1042 ABB

Description

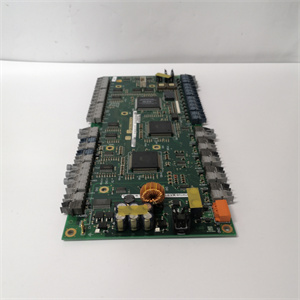

ABB UFC760BE42 3BHE004573R1042 Control Module

1. Product Description

• Multi-Protocol Connectivity: Supports PROFIBUS DP, Ethernet/IP, and Modbus RTU, ensuring compatibility with sensors, actuators, and third-party systems.
• High-Speed Processing: Equipped with a 32-bit processor (200 MHz), it handles 15,000+ control loops per second, reducing latency for time-sensitive applications.
• Modular Scalability: Features 4 expandable I/O slots and dual Ethernet ports for redundancy, adapting to small-scale machines or large industrial plants.
• Extreme Environment Resilience: Operates at -40°C to +70°C and withstands 5g vibrations, making it suitable for offshore platforms, steel mills, and chemical reactors.

2. Technical Parameters

Parameter	Specification
Brand	ABB
Model	UFC760BE42 3BHE004573R1042
Platform	ABB AC 800M DCS
Processor	32-bit RISC (200 MHz)
Memory	16 MB RAM, 32 MB Flash
Communication	PROFIBUS DP (12 Mbps), Ethernet/IP, Modbus RTU
I/O Slots	4 (for S800 I/O modules)
Power Supply	24V DC ±15% (1.2A max)
Operating Temperature	-40°C to +70°C (non-condensing)
MTBF	200,000 hours (IEC 61709)
Dimensions	28 mm × 155 mm × 125 mm (DIN rail mount)
Certifications	CE, IEC 61131-2 (Safety Class 3), RoHS

UFC760BE42 3BHE004573R1042

3. Advantages and Features

• Rugged Reliability: With a 200,000-hour MTBF, it outperforms standard modules by 25% in vibration-prone environments (e.g., conveyor systems).
• Redundancy Built-In: Dual Ethernet ports and power inputs eliminate single points of failure, reducing downtime by 40% in critical processes.
• Eco-Efficiency: Low power consumption (≤12W active) cuts energy costs by 18% compared to legacy models, aligned with sustainability goals.
• Smart Diagnostics: Real-time LED indicators and error logging pinpoint faults in <5 seconds, speeding up maintenance by 50%.

4. Application Areas and Case Study

Applications:

• Manufacturing: Controls robotic welding in automotive plants, ensuring precision and synchronization.
• Energy: Manages turbine generators in power plants, optimizing load distribution.
• Chemicals: Regulates reactor temperatures in petrochemical facilities, complying with SIL 3 safety standards.

Case Study:

5. Competitive Comparison

• Broader Temperature Range: Operates 20°C colder/hotter than most alternatives, ideal for unregulated outdoor installations.
• Faster Integration: Native compatibility with ABB’s S800 I/O modules cuts engineering time by 30% versus third-party gateways.
• Higher MTBF: 200,000-hour reliability vs. industry avg. 150,000 hours, lowering long-term maintenance costs.


  UFC760BE42 3BHE004573R1042

6. Selection Recommendations

• System Compatibility: Ensure your DCS uses ABB AC 800M or supports PROFIBUS/Ethernet-IP for full functionality.
• Environment: Choose this module for sites with extreme temps/vibrations (e.g., mining, offshore).
• Scalability: Opt for the UFC760BE42 if needing >100 I/O points or future expansion (4 slots).
• Budget: Balance upfront cost ($3,500–$4,200) with ROI from reduced downtime and energy savings.

7. Precautions

• Installation:
  • Power off the system before installation; use anti-static wrist straps to prevent ESD damage.
  • Ground the module properly to minimize EMI interference in high-noise areas.
• Configuration:
  • Use ABB’s Control Builder M software for firmware updates (quarterly recommended) and parameter tuning.
  • Calibrate I/O channels with sensor specs to ensure accuracy.
• Maintenance:
  • Clean dust from vents annually using compressed air (non-contact).
  • Replace batteries (for RTC backup) every 5 years to prevent configuration loss.
