UAC383AE01

Description

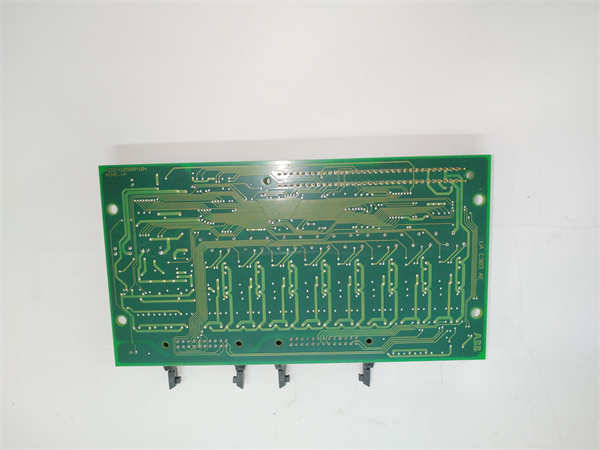

UAC383AE01 Product description

The UAC383AE01 is a high-performance drive from ABB designed specifically for pitch control of fan blades.It is an important part of the fan propeller system,and can be installed in the fan hub in a group of three.The driver has a variety of working modes and powerful command receiving ability,and is also equipped with double feedback interface,which can effectively improve the control precision of the system.

UAC383AE01 Product parameters

Parameter details

Working mode Position mode,speed mode,torque mode

Instruction input Analog input instruction,CANopen®communication instruction

Feedback interface Double feedback interface

Operating temperature-20°C to 55°C

Humidity 90%

An altitude of 1,000 meters is required

The air pressure is 80 to 110kPa

Advantages and features of UAC383AE01

Full-featured:It is a full-featured high-performance enhanced servo drive that can meet the complex requirements of fan pitch control.

High safety standards:compliant with CE and UL standards,as well as IEC61800-2 Chapter 4.3 Vibration/shock/free fall standards,safer and more reliable use.

Strong environmental adaptability:can operate at rated current at temperatures from-20°C to 55°C and 90%humidity,as well as at altitudes of 1000 meters and pressure of 80 to 110kPa,adapting to harsh environments.

UAC383AE01 Application fields and application cases

Application:Mainly used in the wind power industry,for the fan pitch control system,to ensure that the fan under different wind speed and other conditions to maintain the best blade Angle,in order to improve power generation efficiency and equipment stability.

Application case:In a large wind farm,the fan using UAC383AE01 driver responds quickly and accurately in the face of complex and changeable meteorological conditions,effectively reducing the failure rate of the fan and improving the power generation efficiency.Compared with the fan without the driver,the power generation is increased by about 15%.

UAC383AE01 competitive product comparison

Compared with similar products on the market,the UAC383AE01 is equipped with dual feedback interfaces,which can better improve the system control accuracy.It has obvious advantages in environmental adaptability and can work stably in a wider range of temperature,humidity,altitude and air pressure.And its cost performance is higher,with high performance at the same time,cost control is more reasonable.

UAC383AE01 selection suggestion

Functional requirements:If the project is the control of fan variable pitch system,and there are high requirements for control accuracy,working mode switching,etc.,UAC383AE01 can meet them well.

Environmental conditions:If the installation environment of the fan is harsh,the temperature and humidity change greatly,and the altitude is high,the wide environmental adaptation range of UAC383AE01 makes it a suitable choice.

Communication requirements:If the propeller control system uses the CANopen®communication protocol or needs to receive analog input commands,the UAC383AE01 can be seamlessly interfaced.

UAC383AE01 Precautions

Installation specifications:Install in strict accordance with the instructions to ensure that the installation position in the fan hub is correct and firm to avoid loosening caused by vibration.

Wiring operation:When connecting the feedback interface and other lines,ensure that the wiring is correct to prevent short circuit,open circuit and other conditions affecting normal operation.

Environmental maintenance:Periodically check the temperature and humidity of the installation environment to ensure that the installation environment is within the allowable range of the driver and to avoid accelerated device aging due to environmental factors.

Software configuration:When configuring its working mode,command parameters,etc.,check carefully to ensure that the configuration is correct,so as not to affect the control effect.
