Description

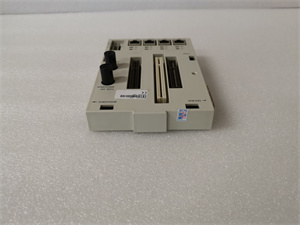

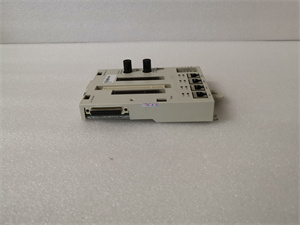

ABB TP830 3BSE018114R1 is a high-performance digital input/output (DIO) module designed for industrial automation systems, offering reliable control and monitoring of binary signals in complex industrial environments. As a key component of ABB’s PLC spare parts portfolio, the
TP830 3BSE018114R1 is engineered to interface with switches, sensors, and actuators, providing precise control over industrial processes. This module is compatible with ABB’s AC 800M control system and other PLC platforms, making it ideal for applications requiring robust digital signal management in industries such as manufacturing, energy, and water treatment. The
ABB TP830 3BSE018114R1 stands out for its durability, high-speed operation, and advanced diagnostic capabilities, ensuring seamless integration and reliable performance in critical control systems.
| Parameter |
Specification |
| Model |
TP830 3BSE018114R1 |
| Brand |
ABB |
| Type |
Digital Input/Output Module (16 channels) |
| Signal Types |
24 V DC digital signals |
| Switching Frequency |
Up to 10 kHz |
| Input Delay |
Adjustable (0.1–100 ms) |
| Output Current |
2 A per channel (resistive load) |
| Voltage Supply |
24 V DC ±20% |
| Operating Temperature |
-40°C to +70°C |
| Communication |
Serial interface (e.g., Profibus DP) |
| Dimensions |
Compact design (approx. 120 x 100 x 50 mm) |
TP830 3BSE018114R1
The ABB TP830 3BSE018114R1 offers several key advantages, including high-speed signal processing and flexible configuration. With 16 configurable channels (8 inputs + 8 outputs), the module supports both sinking and sourcing outputs, adapting to diverse industrial setups. Its hot-swappable design enables safe module replacement without system shutdown, minimizing downtime, while built-in overvoltage and short-circuit protection ensures rugged reliability. The module’s advanced diagnostics provide real-time status updates, including channel-level fault detection, reducing maintenance time and improving system availability.
The ABB TP830 3BSE018114R1 is widely used in automated production lines, power distribution systems, and process control applications where reliable digital signal handling is essential. Typical uses include controlling motor starters, monitoring valve positions, and managing safety interlocks.
Case Study: A food and beverage manufacturer integrated the TP830 3BSE018114R1 into their packaging line to manage conveyor belt sensors and pneumatic actuators. The module’s high-speed switching and diagnostic features reduced downtime by 30% and improved production efficiency by enabling rapid fault detection and resolution.
Compared to similar digital I/O modules, the ABB TP830 3BSE018114R1 excels in environmental robustness and system compatibility. Its wide operating temperature range and resistance to electromagnetic interference (EMI) make it suitable for harsh industrial environments, while native integration with ABB’s control systems eliminates the need for additional software drivers. The module’s compact footprint and modular design also offer space-saving benefits compared to larger, less flexible alternatives.
TP830 3BSE018114R1
When selecting the ABB TP830 3BSE018114R1, consider:
- I/O Requirements: Ensure the channel count (16 channels) and signal type (24 V DC) match your application needs.
- System Compatibility: Verify integration with your PLC or DCS platform (e.g., ABB AC 800M).
- Environmental Conditions: Assess temperature, humidity, and EMI levels in your operational environment.
- Safety Needs: Evaluate the module’s compliance with safety standards (e.g., IEC 61508) for critical applications.
- Installation: Follow ABB’s guidelines for proper wiring to avoid polarity errors and signal interference.
- Load Management: Ensure output loads do not exceed the module’s current ratings (2 A per channel) to prevent damage.
- Maintenance: Regularly inspect connections for wear and tear, and use the module’s diagnostic tools to identify potential issues proactively.
- Safety Compliance: Always power down the system before installing or servicing the module, and ensure all procedures are performed by qualified technicians.
