Description
The

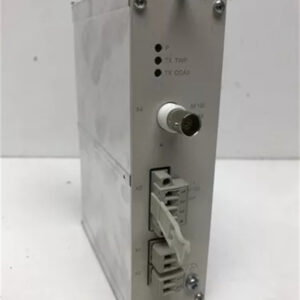

TC513V1 3BSE018405R1 serves as a protocol gateway for AF 100 networks, supporting bidirectional communication between field devices, controllers, and supervisory systems. Its compact design (117 mm × 45 mm × 148.5 mm) and robust construction (0.73 kg) allow installation in space-constrained industrial settings. With a focus on reliability, the modem operates across a wide temperature range (-20°C to +60°C) and withstands high humidity (up to 95% RH non-condensing), ensuring uninterrupted performance in demanding applications.
| Parameter |
Specification |
| Product Type |
AF100 Twisted Pair/Coax Modem |
| Brand |
ABB |
| Part Number |
TC513V1 3BSE018405R1 |
| Protocol |
ABB Advant Fieldbus 100 (AF 100) |
| Communication Interface |
Twisted pair/coaxial cable |
| Data Rate |
Up to 100 kbps |
| Power Supply |
24V DC |
| Power Consumption |
<1 W |
| Compatibility |
ABB Advant OCS, Advant S100 I/O |
| Operating Temperature |
-20°C to +60°C |
| Humidity |
Up to 95% RH (non-condensing) |
| Mounting Type |
DIN rail/panel mount |
| Dimensions (W×H×D) |
117 mm × 45 mm × 148.5 mm |
| Weight |
0.73 kg |
- AF 100 Optimization: Native support for ABB’s Advant Fieldbus 100 ensures plug-and-play compatibility with ABB’s DCS ecosystem.
- Robust Connectivity: Twisted pair/coaxial cable support minimizes interference, enabling reliable communication over long distances (up to 1.2 km).
- Energy Efficiency: Low power consumption (<1 W) reduces operational costs in energy-sensitive applications.
- Industrial-Grade Durability: Wide temperature range and humidity resistance make it suitable for extreme environments (e.g., manufacturing floors, power plants).
- Compact Design: Space-saving form factor (117 mm × 45 mm × 148.5 mm) simplifies installation in crowded control panels.
-
TC513V1 3BSE018405R1
- Industries: Manufacturing, oil & gas, power generation, water treatment, and logistics.
- Applications: DCS network expansion, remote I/O connectivity, and industrial IoT (IIoT) sensor integration.
- Case Study: A chemical plant in France upgraded its DCS with the TC513V1 3BSE018405R1 to connect 50+ distributed sensors. The modem’s AF 100 compatibility reduced commissioning time by 20% and improved data consistency by 99.5%, ensuring compliant process control.
Compared to generic fieldbus modems, the TC513V1 3BSE018405R1 offers:
- Vendor-Specific Integration: Pre-engineered for ABB’s Advant OCS/S100 platforms, eliminating compatibility risks.
- Environmental Resilience: Extended temperature range (-20°C to +60°C) outperforms standard modems (typically -10°C to +50°C).
- Protocol Specialization: Native AF 100 support reduces latency and configuration complexity compared to multi-protocol alternatives.
- System Compatibility: Ensure integration with ABB’s Advant OCS/S100 or AF 100-based networks.
- Environment: Match temperature/humidity requirements to the installation site (e.g., outdoor vs. indoor).
- Scalability: Plan for future device additions (max. nodes per AF 100 segment: 32).
- Cost Efficiency: Balance upfront costs with long-term reliability (e.g., reduced maintenance due to ABB’s quality standards).
- Mounting: Secure via DIN rail or panel; ensure proper grounding to prevent EMI.
- Cabling: Use shielded twisted pair/coaxial cables (AWG 22–18) for optimal signal integrity.
- Power: Verify 24V DC supply stability; avoid voltage fluctuations >±10%.
- Maintenance: Regularly inspect cable connections; replace faulty modems immediately to avoid network downtime.
- Safety: Power down the system before installation/service; follow ABB’s ESD protection guidelines.
Conclusion
The ABB TC513V1 3BSE018405R1 is a mission-critical component for AF 100 networks, combining protocol specialization, industrial durability, and energy efficiency. Ideal for DCS modernization and expansion, it delivers reliable connectivity in challenging industrial environments.
