SPHSS13

Description

ABB SPHSS13 is a high-performance industrial automation module, its specific description, parameters, specifications, series, features, functions, uses and application areas are as follows:

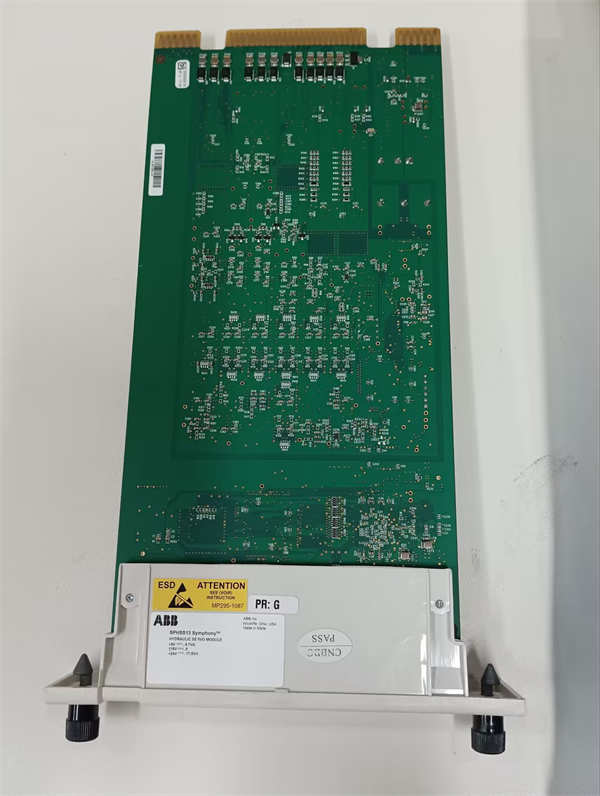

ABB SPHSS13 Product description

The ABB SPHSS13 module is a high-performance module designed for industrial applications, mainly in the areas of automation, robotics and process control. It can realize high-precision position, speed and force control, and realize complex motion control tasks and data exchange by connecting with upper computer and other equipment.

Product parameter

Input voltage: 24V DC±20%.

Output current: Maximum 5mA, output voltage 0~10VDC.

Processing speed: up to 800 MHz.

Memory: 512 MB DDR3 memory and 16 GB eMMC storage.

Communication interface: Support RS-485, RS-232, CAN, Ethernet, Profibus, Modbus, etc.

Operating temperature range: -10°C to +60°C.

Dimensions: 200 x 100 x 60 mm.

Weight: About 0.272kg.

Product specification

Type: DCS module (Distributed control system)

Compatibility: Supports operating systems such as Windows Embedded Compact, VxWorks, and Linux.

Extended interface: Provides rich interfaces, including digital and analog I/O.

series

The SPHSS13 is part of ABB’s Symphony Plus family of modules designed for industrial automation with high reliability and flexibility.

trait

High precision control: Supports precise control of position, speed and force.

High reliability: Industrial grade components are used to ensure stable operation in harsh environments.

Flexible configuration: The configuration can be customized according to requirements.

Easy maintenance: Supports remote diagnosis and maintenance.

Safety: With safety features to protect industrial processes from external interference.

Function and use

The SPHSS13 module is mainly used in the following aspects:

Industrial automation: Control of robots, motors and other equipment on production lines.

Motion control: Achieve high-precision motion control tasks such as position control, speed control and force control.

Data acquisition and monitoring: Real-time monitoring of industrial processes through distributed control systems (DCS).

Complex algorithm processing: Support complex control algorithms and logical operations.

Application field

SPHSS13 modules are widely used in the following industries:

Mechanical manufacturing: for the control of robots and automated production lines.

Chemical: Used for high-precision control of chemical equipment.

Electricity: For the control of power transmission and distribution systems.

Transportation: Automation systems for the railway and aviation sectors.

Medical image processing: for the precise control of high-end medical devices.
