SPFEC12

Description

ABB SPFEC12 is a high-performance industrial automation module, its specific description, parameters, specifications, series, features, functions, uses and application fields are as follows:

ABB SPFEC12 Product description

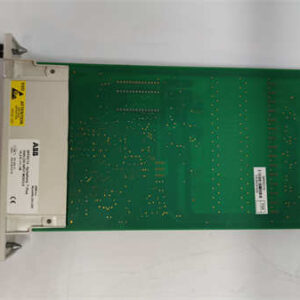

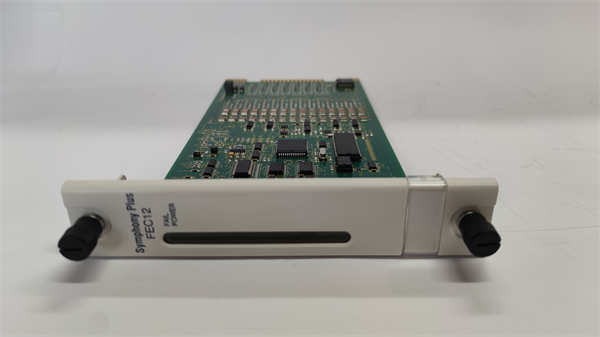

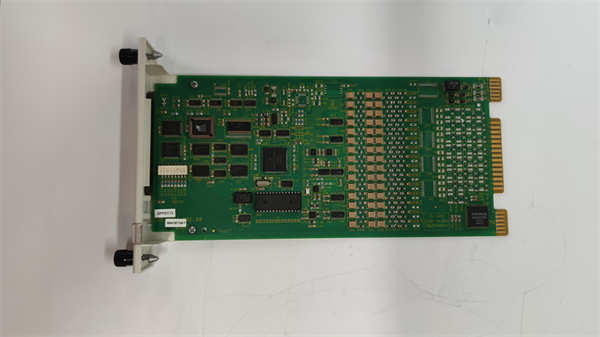

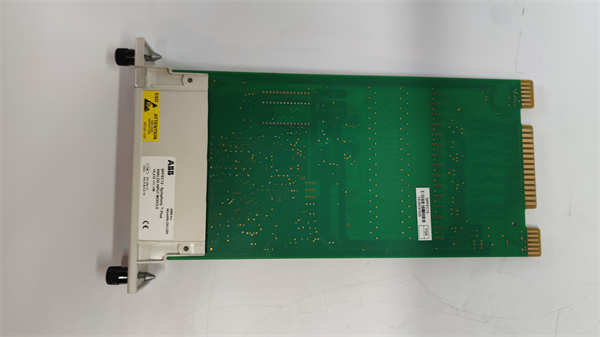

The SPFEC12 is an analog input module in ABB Harmony Rack industrial control systems that converts analog signals (such as voltage, current, etc.) from field equipment into digital signals for processing and analysis by PLCS or other control systems.

The SPFEC12 is part of ABB’s Symphony Plus I/O HR family and AC500 family and is part of the ABB 800xA DCS product family.

Product parameter

Number of channels: 15 channels.

Input type: Support 4-20mA and 1-5V analog signals.

Resolution: 14-bit or 16-bit (some models).

Accuracy: ±0.1% to ±0.14%.

Sampling rate: 1000Hz or higher.

Working voltage: 24V DC.

Power output: 12W.

Protection level: IP20.

Dimensions: 229.5mm x 61.24mm x 296.24mm or 71.12mm x 358.14mm x 269.24mm (different versions).

Weight: Approx. 4 kg or 0.5 kg (different versions).

Operating temperature range: -20°C to +55°C.

Storage temperature range: -40°C to +85°C.

Product specification

The SPFEC12 module supports multi-channel signal acquisition and is suitable for high-precision data acquisition in complex industrial environments.

The module design is compact and easy to integrate into various control systems, such as 800xA systems.

Provides flexible configuration options, including different input types and resolutions.

series

The SPFEC12 is part of ABB’s Symphony Plus I/O HR family and AC500 family and is part of the ABB 800xA DCS product family.

trait

High precision: Support ±0.1% high precision signal acquisition.

Multi-channel: Supports up to 15 channels of signal input.

High reliability: suitable for harsh industrial environment, protection level up to IP20.

Easy to use: Provides intuitive user interface and rich software features, easy to operate and maintain.

Compatibility: Compatible with other ABB automation products and systems, such as PLCS, human machine interfaces, etc.

effect

The main function of SPFEC12 is to convert the analog signal of the field equipment into a digital signal to provide a reliable data acquisition function for the control system.

It can monitor and control key parameters in the production process in real time, such as temperature, pressure, flow, etc.

use

SPFEC12 is widely used in the field of industrial automation, including but not limited to the following scenarios:

Process control: chemical, metallurgy, electric power and other industries.

Data acquisition: Environmental monitoring (such as water quality monitoring, air quality monitoring), building automation (such as temperature control, humidity control).

Distributed control system (DCS) : such as S+H I/O and S+HRI-O mode.

Application field

Chemical industry: process control, data acquisition.

Oil industry: Process control, data acquisition.

Power industry: power plants, substations.

Water treatment industry: water quality monitoring and control.
