SPDSO14

Description

ABB SPDSO14 is a high-performance digital output module, mainly used in the field of industrial automation, its specific description, parameters, specifications, series, features, functions, uses and application fields are as follows:

ABB SPDSO14 Product description

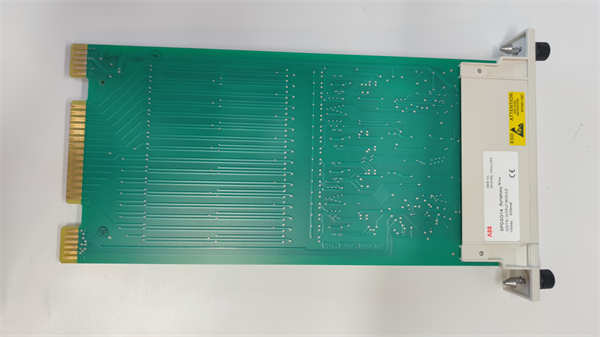

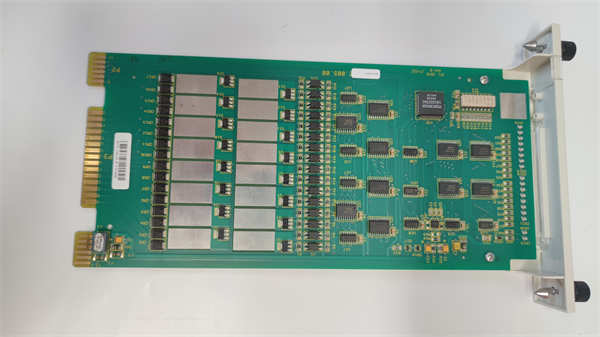

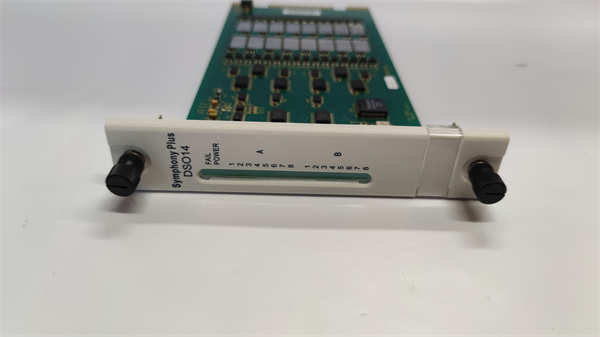

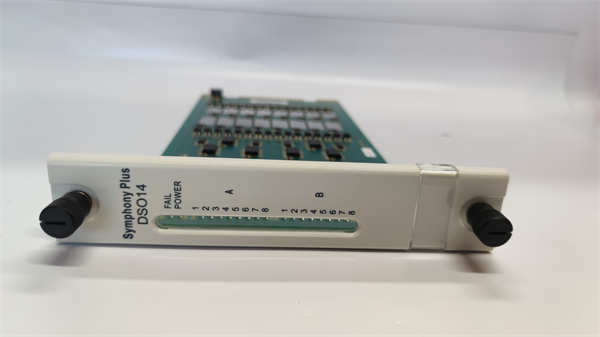

ABB SPDSO14 is a digital output module designed for industrial environments that converts the controller’s digital signals into actual control outputs, such as drive relays, motors, and more. The module has high reliability and anti-interference capability, which is suitable for harsh industrial environments.

Product parameter

Output signal type: DC24V or AC24V.

Output voltage: +24V.

Output current per channel: 2A.

Number of channels: 16.

Switching capacity: 50W per channel.

Isolation voltage: 2500VAC.

Operating temperature range: -20℃ to +55℃.

Protection level: IP20.

Size: 73.66mm (D) ×360.68mm (H) ×279.4mm (W).

Weight: About 300g.

Product specification

Module type: Symphony Plus I/O module series.

Design standard: comply with IEC 61131-2 standard.

Mounting method: DIN rail mounting.

series

The ABB SPDSO14 is part of the Symphony Plus I/O module family and is part of ABB’s Industrial automation product line.

trait

High reliability: The use of high-quality components to ensure long-term stable operation.

Multi-channel design: supports 16 independent digital output channels.

Fast response: The response time is less than 1ms.

High isolation: Provides 2500VAC electrical isolation to protect the system.

Easy integration: Modular design for easy installation and maintenance.

Function and use

Control equipment: The digital signal is converted into the actual control output for driving relays, motors, valves and other equipment.

Alarm output: Used to indicate equipment failure or abnormal conditions.

Signal output: Provides switching signals or pulse signals for controlling external devices or performing logical operations.

Application field

ABB SPDSO14 is widely used in the following areas:

Industrial automation: for process control, machine control and building automation.

Power system: Used for power distribution and power monitoring.

Manufacturing: For production line automation and equipment control.

Energy management: Used in intelligent fire water supply system, chemical plant liquefied petroleum gas constant temperature tank, etc.

Other fields: such as metallurgy, food and beverage, paper printing and so on.
