SPBRC400

Description

ABB SPBRC400 is a high-performance industrial automation controller, widely used in industrial automation, process control, robot control, building automation and other fields. Here is a detailed description of the product:

ABB SPBRC400 Product description

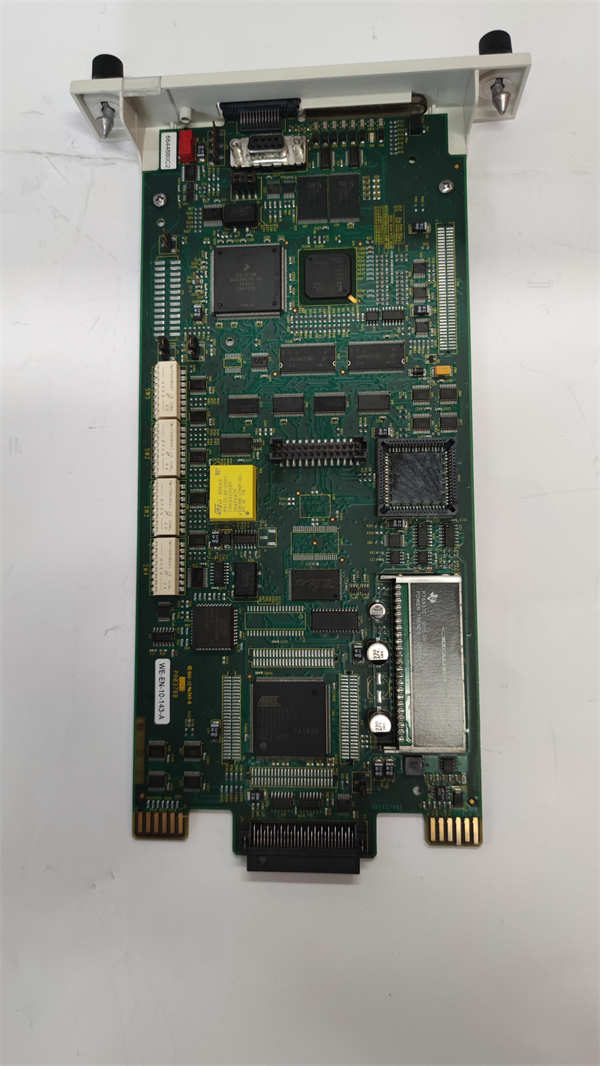

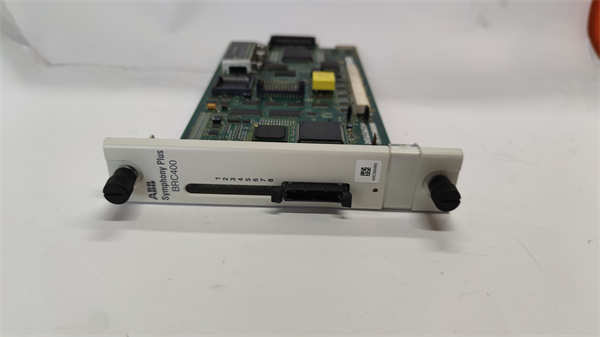

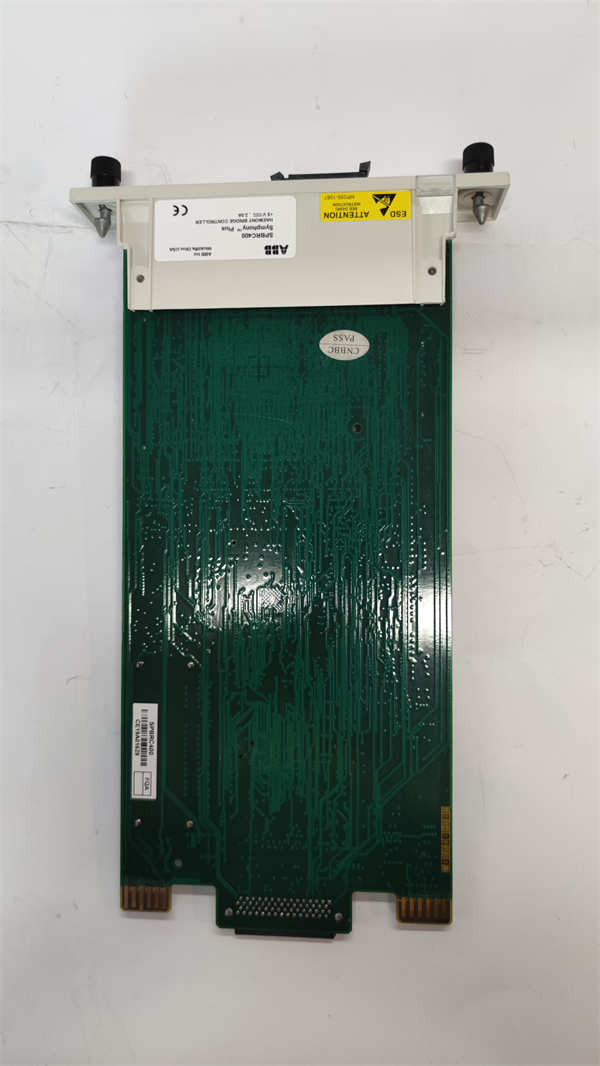

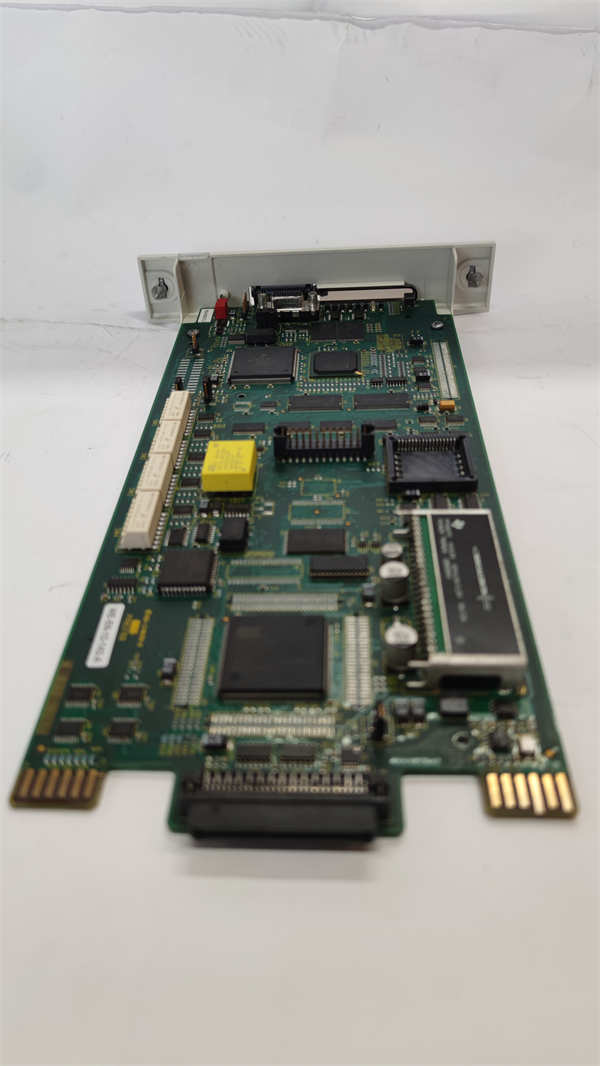

ABB SPBRC400 is a bridge controller module that belongs to ABB’s PLC family and is mainly used in complex control systems. It uses high-performance hardware and advanced control algorithms, has powerful data processing capabilities and fast response time, and can meet the high requirements for reliability and flexibility of industrial automation.

Product parameter

Power supply voltage: 24V DC.

Operating temperature range: -10°C to +60°C (some evidence shows -20°C to +55°C).

Storage temperature range: -40°C to +85°C.

Dimensions: Net depth 71.12mm, net height 358.14mm, net width 271.78mm.

Weight: About 0.499 kg (about 0.69 kg).

Interface type: Supports RS-232, USB serial port, RS485, CAN bus, PROFINET DP, etc.

Memory: 2MB SDRAM.

Processor: 32-bit RISC processor with 400MHz or 512MHz.

Protection level: IP67.

Product specification

Rated voltage: 220V.

Output frequency: 30kHz.

Maximum output current: 10A.

Communication protocol: Support EtherCAT, Modbus RTU, etc.

Working conditions: vibration resistance (IEC 60068-2-6:2007), shock resistance (IEC 60068-2-7:2007).

Series and features

The SPBRC400 is part of ABB’s PLC family and is specifically part of the Harmony Plus HR series or 800xA system. Its main features include:

High performance: Powerful processing power and fast response time for complex industrial control scenarios.

High reliability: The use of high-quality components and redundant design to ensure stable system operation.

Flexible configuration: Supports multiple communication protocols and programming languages for easy integration with other devices.

Ease of use: Provides intuitive operation interface and friendly programming tools to facilitate routine maintenance and troubleshooting.

Compact design: Small size for easy installation and maintenance.

Function and use

The main role of the SPBRC400 is to achieve industrial automation control, including:

Data acquisition and processing: real-time sensor data acquisition and analysis processing.

Logic control: Performs complex logic operations such as sequence control and timing control.

Motion control: Control the movement of robots and automated production lines.

Process control: For chemical industry, metallurgy, electric power and other industries temperature, pressure, flow and other parameters of accurate control.

Human-machine interaction: Provides an intuitive operation interface through the human-machine interface (HMI).

Application field

SPBRC400 is widely used in the following areas:

Industrial automation: such as production line automation, robot control, etc.

Process control: such as chemical industry, metallurgy, power industry temperature, pressure, flow control.

Building automation: for environmental monitoring and energy management within buildings.

Water treatment: For the automatic control of water treatment systems.

Traffic system: such as traffic light control.
