SPASO11

Description

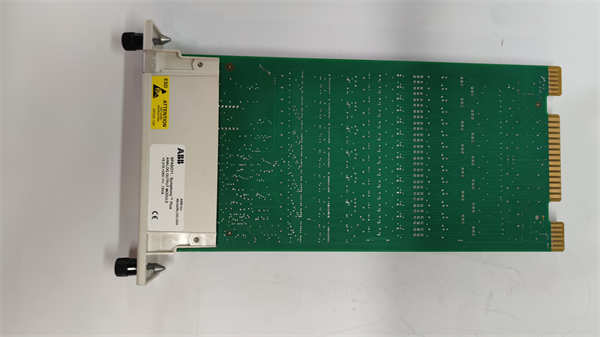

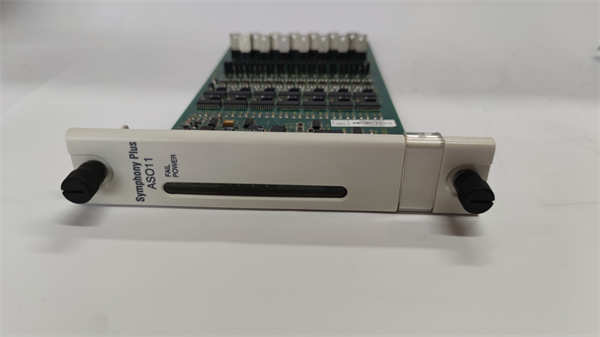

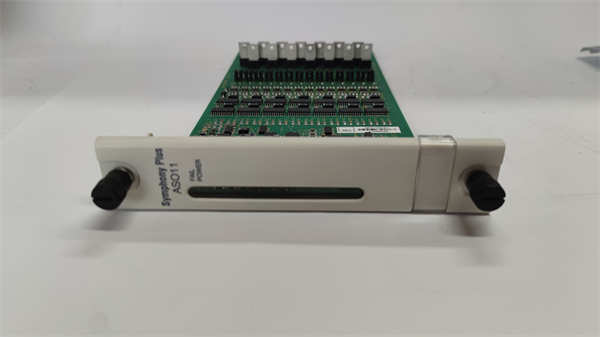

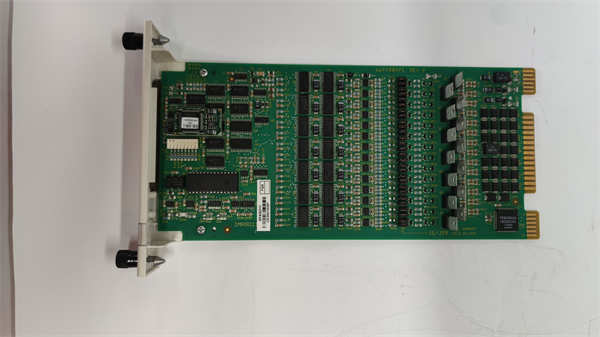

ABB SPASO11 is a high-performance analog output module that is widely used in industrial automation. Here is a detailed description of the product:

ABB SPASO11 Product description

ABB SPASO11 is an analog output module for industrial automation systems, whose main function is to convert digital signals to analog signals to control actuators (such as valves, motors, etc.). The module has the characteristics of high precision, high reliability and easy configuration, which is suitable for process control and data acquisition in complex systems.

Product parameter

Number of channels: 14 independent channels.

Output type:

Support 4-20mA current signal and 1-5V voltage signal output.

Each channel can be individually configured with forward or reverse output.

Accuracy: ±0.1% (some evidence mentions ±0.2%FS).

Response time: Less than 0.5 seconds.

Power supply voltage: 24V DC.

Operating temperature range: -20°C to +60°C.

Storage temperature range: -40°C to +80°C.

Dimensions: Standard module size, height 134mm, width 85mm, depth 25mm.

Weight: About 0.2kg.

Protection level: IP20.

Product specification

Standard size: in line with IEC61158-2 technical standards.

Load resistance: ≤500Ω.

Insulation resistance: ≥100MΩ.

Isolation voltage: AC2500V.

Update rate: 1000 times per second.

Series and features

Series: The SPASO11 is part of ABB’s System 800xA DCS product family.

Features:

High precision output to ensure the accuracy of analog signals.

Multi-channel design, support for multiple output types.

Flexible configuration options to suit different industrial needs.

High reliability and ease of integration into existing systems.

Function and use

The main role of ABB SPASO11 is to convert the digital signals generated by the control system into analog signals, thus achieving precise control of field equipment (such as valves, motors, etc.). Its main uses include:

Process control: Used for process control in chemical, pharmaceutical, water treatment and other industries.

Data acquisition: used to monitor and record the operating status of industrial equipment.

Servo control: For precise control of servo motors.

Industrial automation: widely used in industrial production lines, mechanical equipment and automation systems.

Application field

ABB SPASO11 is suitable for the following applications:

Industrial control systems: such as DCS (distributed control system) and PLC (Programmable logic controller).

Process control: such as chemical, pharmaceutical, water treatment, etc.

Data acquisition and monitoring: used to monitor and record the operating status of industrial equipment.

Servo control: For precise control of servo motors.

Other industrial applications: such as HVAC, lighting control and data acquisition systems.
