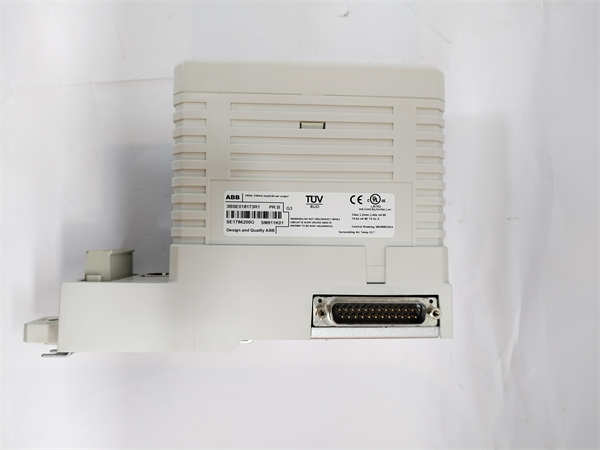

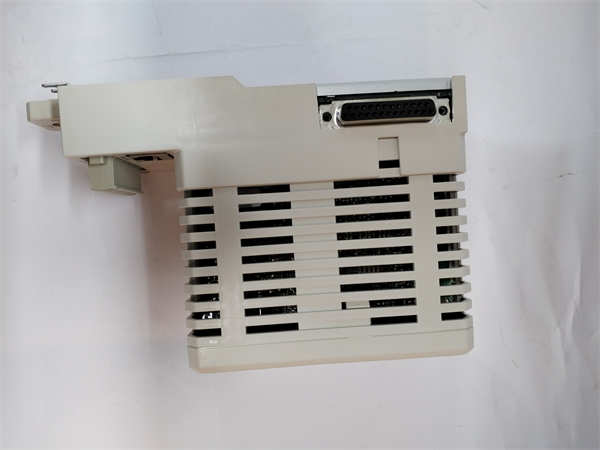

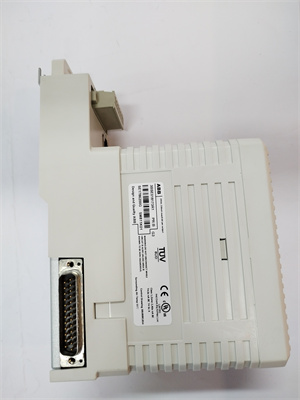

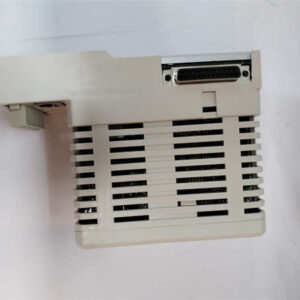

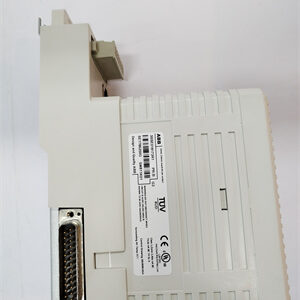

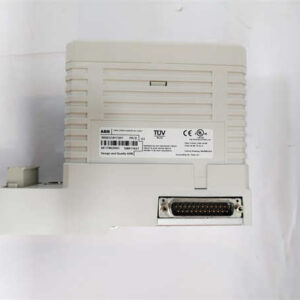

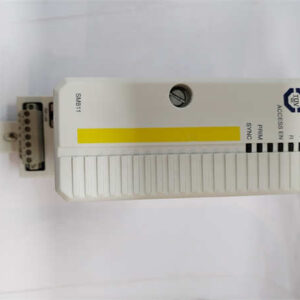

SM811K01 3BSE018173R1

Description

ABB SM811K01 3BSE018173R1 is a high performance, high security industrial automation control module, mainly used in industrial automation systems for safety control and monitoring. Here is a detailed description of the product:

ABB SM811K01 3BSE018173R1 Product description

ABB SM811K01 3BSE018173R1 is a secure CPU module designed for industrial automation with high reliability and high performance. It meets the requirements of SIL3 Safety Integrity Level (SIL3) and is suitable for industrial environments requiring strict safety protection, such as motor control, robot control, process control and other scenarios.

Product parameter

Model: SM811K01

Number: 3BSE018173R1

Power supply voltage: 24V DC (support range 19.2-30V DC).

Power consumption: Typical value is 3.8W, maximum is 10W.

Processor: MPC862P microprocessor, operating at 96MHz.

Memory: 32MB RAM.

Communication protocol: Support CAN, PROFIBUS, Modbus and other industrial communication protocols.

Operating temperature range: -25°C to +70°C.

Dimensions: Net depth/length 127.5 mm, net height 185 mm, net width 59 mm.

Weight: Net weight is 0.6kg.

Protection level: IP67.

Certification: SIL3,CE,UL.

Product specification

Input voltage: AC 100-240VAC, DC 24V.

Output type: digital output.

Communication interface: Ethernet, RS485, RS232.

Connection mode: It can work with other modules such as PM865 and connect to each other through the CEX bus.

series

The SM811K01 belongs to ABB’s Advant 800xA family and is part of its high integrity secure CPU module.

trait

High integrity: Compliance with SIL3 standards ensures reliability in safety-critical applications.

Intelligent monitoring: Provides intelligent monitoring of the controller during unsafe SIL operation.

Modular design: Facilitates seamless integration with other devices and supports expansion and redundancy design.

Compact design: Compact size, light weight, easy to install and maintain.

Function and use

The SM811K01 is primarily used for safety control and monitoring in industrial automation systems, including:

Security logic operations: Perform security-related logic operations and data processing.

Emergency stop function: Quickly stop the operation of the device in an emergency.

Data processing and communication: Efficiently process large amounts of data and exchange data with other devices through a variety of communication protocols.

Application field

The module is widely used in the following areas:

Energy management: such as power plants, substations.

Manufacturing automation: such as production line control, robot control.

Chemicals & Oil & Gas: For process monitoring and equipment protection.

Pharmaceutical and food processing: Ensure the safety and stability of the production process.
