Description
The
ABB SC610 is a high – performance analog input module designed for industrial control systems. It is an essential component for industrial automation, offering reliable and accurate data acquisition for various industrial processes.
This module provides precise measurement and control, with 8 analog input channels and a 16 – bit resolution. It can handle input ranges of ± 10 V or ± 20 mA, and has a sampling rate of up to 10 Hz. The SC610 supports multiple communication protocols, such as Modbus RTU, Profibus DP, and CANopen, enabling seamless integration with a wide range of industrial systems. Its compact design, measuring 288 mm x 22.5 mm x 486 mm and weighing 0.67 kg, allows for easy installation in tight spaces.
| Parameter |
Specification |
| Input Channels |
8 |
| Input Range |
± 10 V or ± 20 mA |
| Resolution |
16 – bit |
| Sampling Rate |
Up to 10 Hz |
| Communication Interfaces |
Modbus RTU, Profibus DP, CANopen |
| Power Supply |
24 V DC |
| Dimensions (D x H x W) |
288 mm x 22.5 mm x 486 mm |
| Weight |
0.67 kg |

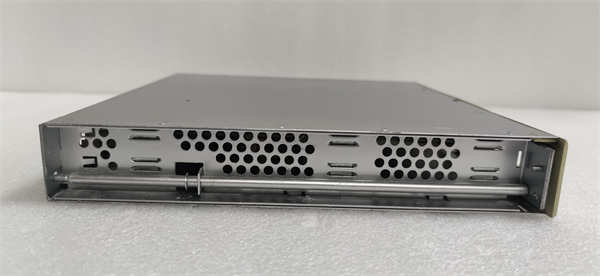

SC610
The ABB SC610 offers several advantages, including high precision, reliability, and flexibility. Its 16 – bit resolution and high – accuracy measurement capabilities ensure precise data acquisition, which is crucial for applications that require tight control over processes. The module is designed to withstand harsh industrial environments, with a durable construction that can handle vibrations, temperature extremes, and electromagnetic interference. This ensures reliable performance even in challenging conditions, minimizing downtime and maintenance requirements.
In addition, the SC610 has a modular design, allowing for easy expansion and customization to meet specific application needs. Its support for multiple communication protocols provides flexibility in integrating with different industrial systems, reducing the need for additional interface modules.
The ABB SC610 is widely used in various industries, including manufacturing, energy, and process control. In manufacturing, it can be used to monitor and control production processes, such as temperature, pressure, and flow. In the energy sector, it can be applied in power plants to measure and control parameters such as voltage, current, and frequency. In process control, it is used to acquire data from sensors and transmitters in chemical, pharmaceutical, and food and beverage industries.
Case Study: A chemical plant used the ABB SC610 to monitor and control the temperature and pressure of chemical reactors. The module’s high – precision measurement capabilities allowed for accurate control of the reaction process, resulting in improved product quality and reduced waste. Its reliable performance in the harsh chemical environment also helped to minimize downtime and maintenance costs.
Compared to other analog input modules in the market, the ABB SC610 stands out for its high precision, wide range of input options, and robust construction. Its 16 – bit resolution is higher than some competing products, providing more accurate data acquisition. The module also offers a wider input range and better compatibility with different communication protocols, making it more versatile in industrial applications. Additionally, ABB’s reputation for quality and reliability gives the SC610 an edge over some competitors.

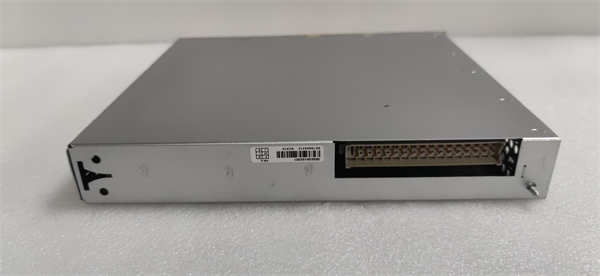

SC610
When selecting the ABB SC610, consider the following factors:
- Compatibility: Ensure that the module is compatible with your existing industrial control system, including the PLC, communication protocols, and software.
- Input Requirements: Evaluate your specific input needs, such as the number of channels, input range, and resolution. Make sure the SC610 can meet these requirements.
- Environmental Conditions: Consider the operating environment of the module, including temperature, humidity, vibration, and electromagnetic interference. The SC610 is designed for harsh industrial environments, but it’s still important to ensure that the conditions are within its specified limits.
- Scalability: If you anticipate future expansion of your industrial automation system, choose a module that can be easily expanded or integrated with other components. The modular design of the SC610 makes it a good choice for scalable systems.
- Installation: Follow the installation instructions provided by ABB carefully. Make sure to power off the system before installing or removing the module to avoid electrical damage.
- Grounding: Proper grounding is essential to prevent electrical noise and ensure safe operation. Connect the module to a reliable ground according to the recommended grounding procedures.
- Cable Management: Use appropriate cables and ensure proper cable routing to avoid signal interference. Keep the cables away from sources of electromagnetic interference, such as power lines and motors.
- Maintenance: Regularly check the module for any signs of damage or malfunction. Clean the module if necessary, and follow the recommended maintenance schedule provided by ABB. Update the firmware and software as recommended to ensure optimal performance and compatibility.
Shanxi Xinyeda International Trading Co., Ltd. is your trusted partner, we provide and other automation spare parts sales and technical support. Please visit our website www.xydcontrol.com or contact us and we will be happy to serve you.
