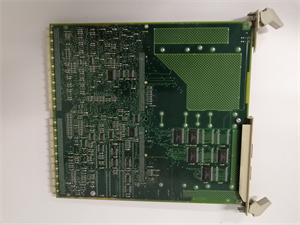

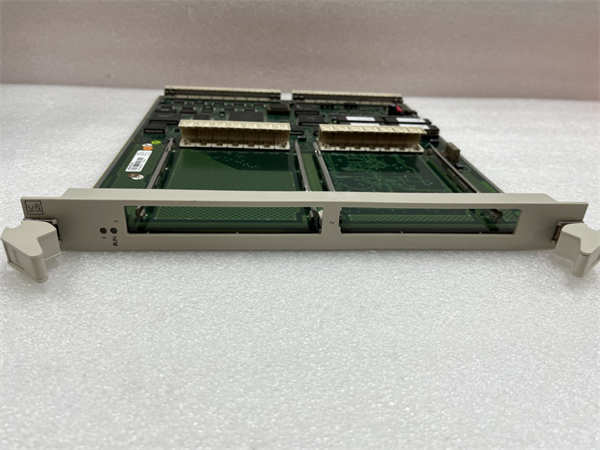

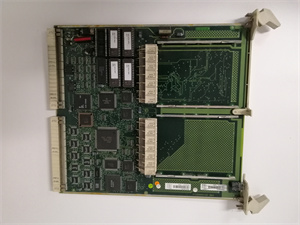

SC520 3BSE003816R1

Description

The ABB SC520 3BSE003816R1 is a modular submodule carrier designed for industrial automation with a wide range of functions and application areas. Here is a detailed description of the product:

ABB SC520 3BSE003816R1 Product description

The ABB SC520 3BSE003816R1 is a high-performance industrial automation module belonging to the SC520 family. It is mainly used to expand the function of the control system, including increasing I/O points, communication interfaces and special functions. The module supports a variety of communication protocols (such as RS-232, RS-485, Ethernet, PROFIBUS DP V1, etc.), and integrates a local CPU to achieve complex control logic.

Product parameter

Model: SC520 3BSE003816R1

Dimensions: 291 mm x 300 mm x 30 mm (length x width x height).

Weight: 0.742 kg.

Power requirements: Usually DC voltage input, the specific value depends on the application.

Operating temperature range: -20°C to +60°C.

Protection grade: IP65, dustproof and waterproof function.

Interface type: Supports a variety of I/O module slots, such as digital input/output modules, communication modules, etc.

Communication protocol: Support RS-232, RS-485, Ethernet, PROFIBUS DP V1, etc.

Other features: Supports local control, improving system flexibility and reliability.

Product specification

Modular design: Support the insertion and expansion of multiple seed modules to meet different control requirements.

High-performance processor: Built-in high-performance microprocessor to support complex control algorithms.

High reliability: Redundancy design ensures stable system operation.

Installation: Support DIN rail installation, easy maintenance and expansion.

Series and model

Series: SC520 series (Advant Master or SC500 series).

Model: 3BSE003816R1.

trait

Modular design: Flexible configuration of multi-seed modules for easy expansion and maintenance.

High-performance computing capability: Built-in local CPU to support complex logic control.

High reliability: High quality materials are used to adapt to harsh industrial environments.

Strong compatibility: Compatible with ABB 800xA system and other factory automation systems.

Easy installation and maintenance: Support DIN rail installation, easy installation.

Function and use

The main functions of ABB SC520 3BSE003816R1 are:

Expand the capabilities of industrial automation systems, including increased I/O points, communication capabilities, and special features.

Provide local control function, reduce the burden of the host computer.

Support process control, data acquisition and machine control applications.

Application field

The module is widely used in the following areas:

Industrial automation: for PLC and DCS control systems.

Process control: Suitable for chemical, oil, natural gas and other industries.

Machine control: control system for machine tools, robots and other equipment.

Data acquisition: Used for field data acquisition and transmission to the upper computer.

Other fields: such as power plants, water treatment, food and beverage manufacturing.
