SAFT183VMC

Description

ABB SAFT183VMC is a multi-functional industrial automation control module, its specific description, parameters, specifications, series, features, functions, uses and application fields are as follows:

ABB SAFT183VMC Product description

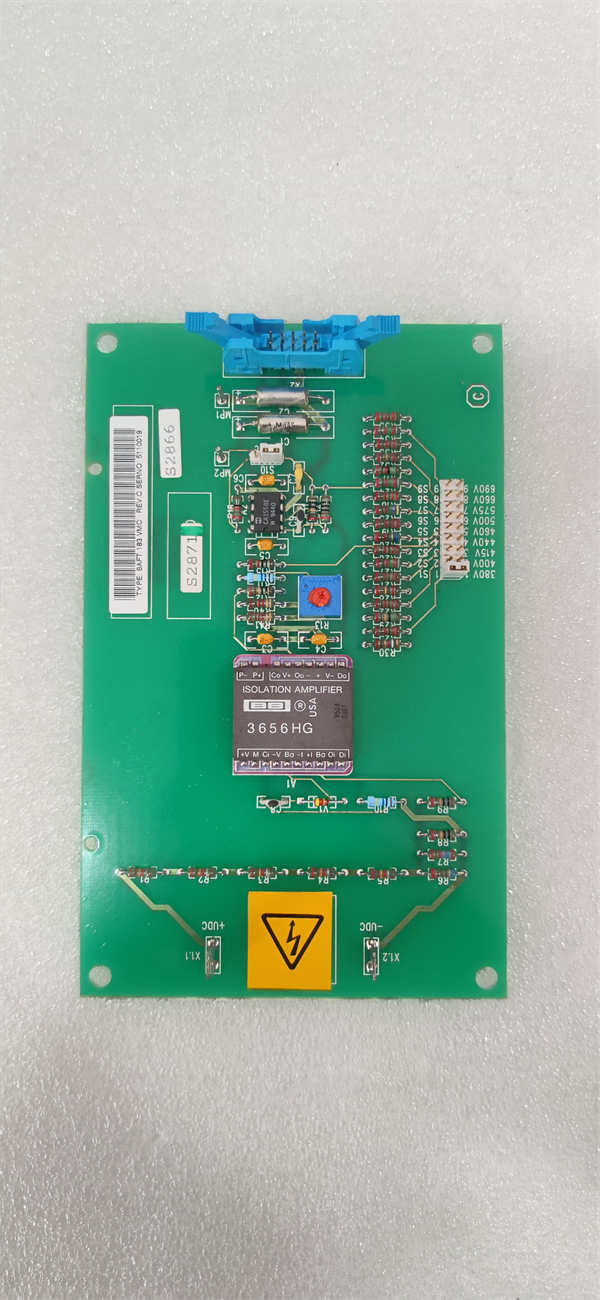

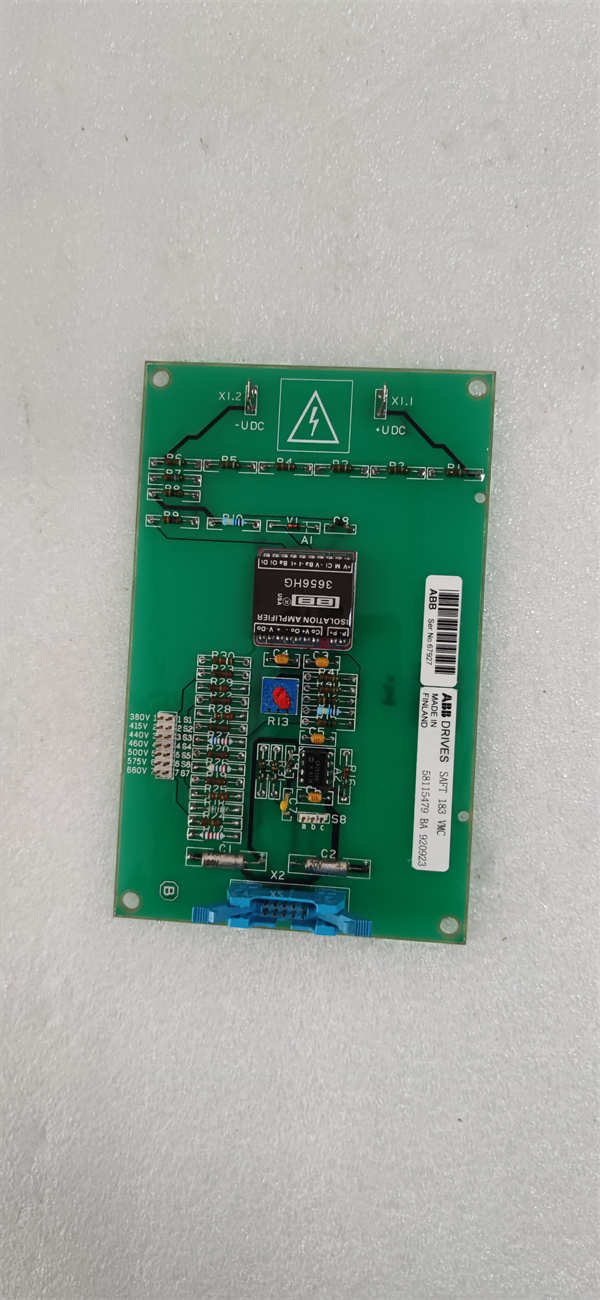

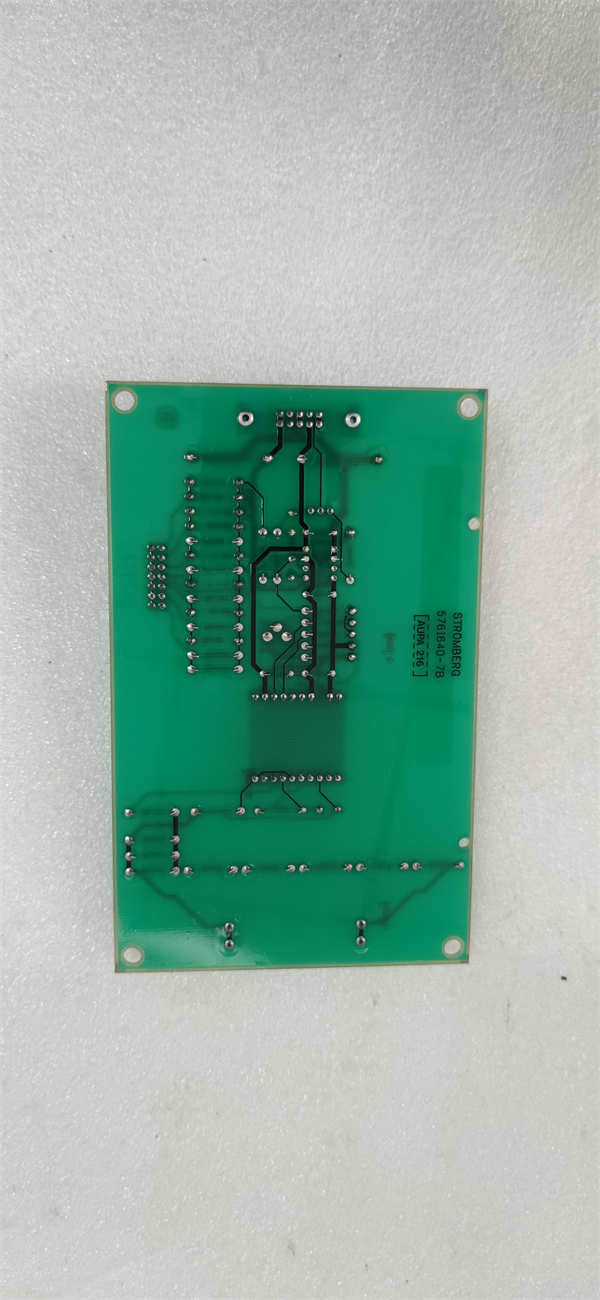

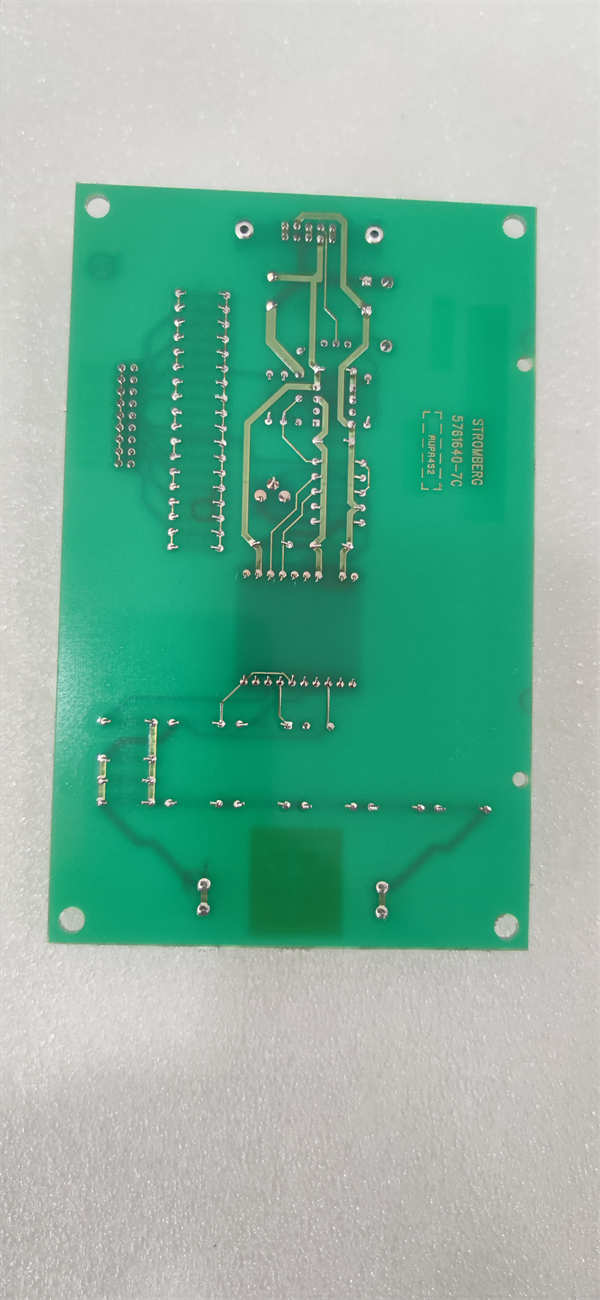

The ABB SAFT183VMC is a high-performance expansion module board designed for ABB AC800xA and Freelance 800F control systems to provide additional functionality and scalability. It supports a variety of input and output interface types (such as analog, digital, serial communication, etc.), and can meet the complex control needs.

Product parameter

Working voltage: 24V DC.

Operating temperature range: -20°C to +60°C.

Size: Different models have slightly different sizes, such as 115mm x 48mm x 150mm, or 120mm x 80mm x 40mm.

Weight: About 0.5kg to 1.2kg.

Protection level: IP65 or IP20.

Communication interface: Supports RS485, Ethernet, serial communication, etc.

Power supply: Some models are 360W.

Signal processing capability: Supports high-speed pulse unit modules with high accuracy and reliability.

Product specification

Input current: 500mA.

Output current: up to 15A.

Input voltage range: 85-264VAC.

Output voltage: 24VDC.

Contact capacity: 250VAC/5A or 24VDC/5A.

series

The SAFT183VMC belongs to ABB’s family of expansion modules, as well as other models such as the SAFT183INF and SAFT183IG4.

trait

Easy installation: With DIN rail installation, easy to deploy quickly.

Powerful: Support a variety of signal types, with high reliability and high performance.

Modular design: Compact structure for easy maintenance and expansion.

High performance computing capability: Based on the ARM architecture, support DMA controller and single-cycle multiplication instructions.

Adapt to harsh environment: suitable for industrial automation, power energy, petrochemical and other fields.

effect

The main role of ABB SAFT183VMC is to provide extended functionality for control systems, including:

Expand I/O points and functionality.

Provides additional communication capabilities.

Supports complex control tasks such as high-speed pulse signal processing and real-time data transmission.

Improve system stability and reliability.

use

ABB SAFT183VMC can be used in the following scenarios:

Industrial automation control system (e.g. production line, robot control).

Energy power field (such as power generation, transmission equipment monitoring).

Petrochemical industry (e.g. production process automation control).

Pharmaceutical machinery (e.g. quality control and monitoring).

Water treatment (e.g. water quality monitoring and control).

Application field

ABB SAFT183VMC is widely used in the following industries:

The manufacturing industry.

The chemical industry.

Building materials industry.

The food industry.

The light industry.

The electronics industry.

The energy sector (e.g. power and oil and gas).

Environmental protection project.
