Description

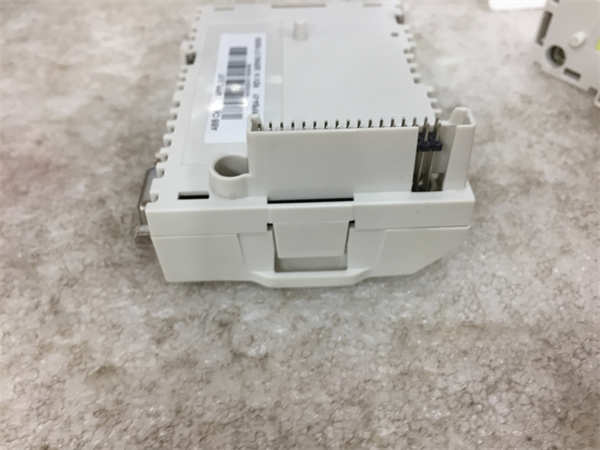

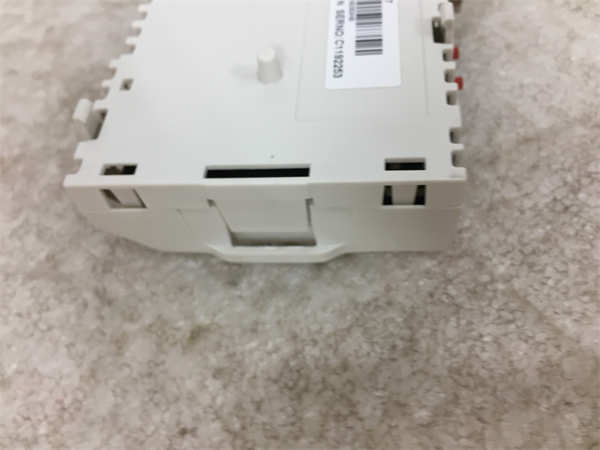

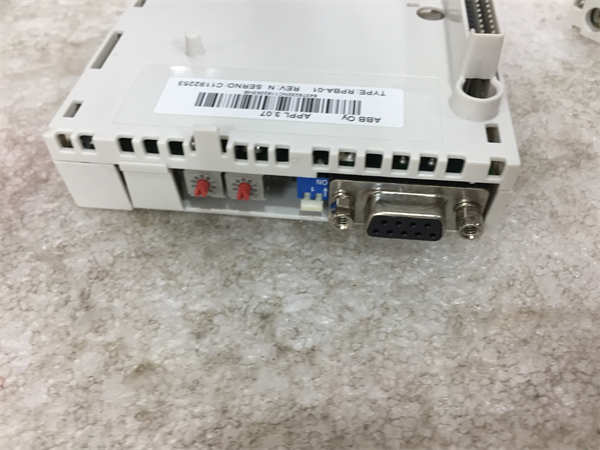

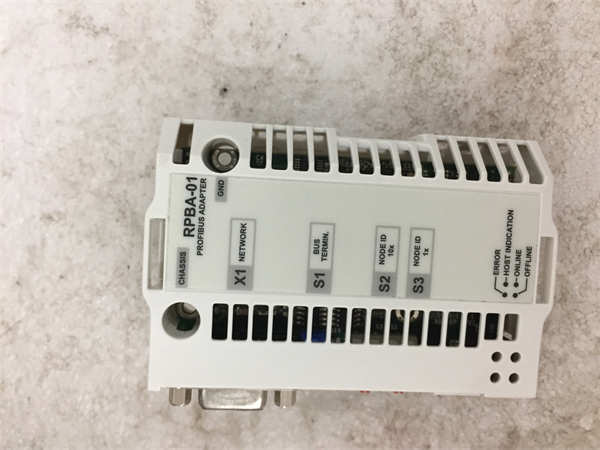

ABB RPBA-01 is a PROFIBUS DP communication module for industrial automation. Its main function is to connect ABB’s ACS800 series frequency converters to the PROFIBUS DP fieldbus network for efficient data exchange and remote monitoring. Here is a detailed description of the RPBA-01:
ABB RPBA-01 Product description
The RPBA-01 is a PROFIBUS DP adapter module designed for ABB inverters and supports PROFIBUS DP-V0 and DP-V1 protocols, enabling data communication between inverters and upper computers (such as PLCS). The module is connected to the inverter via an RS485 interface and supports automatic baud rate identification, diagnostic functions, and firmware upgrades.
Product parameter
Model: RPBA-01
Brand: ABB
Series: ACS800 series
Communication protocol: PROFIBUS DP
Interface type: RS485
Working voltage: 24V DC
Power consumption: 2W
Operating temperature range: -20°C to +60°C (some data mention -25°C to +70°C).
Dimensions: 115 mm x 70 mm x 25 mm.
Protection level: IP20.
Product specification
Supported protocol versions: PROFIBUS DP-V0, DP-V1.
Transmission rate: complies with PROFIBUS DP standard.
Diagnosis: Provides fault diagnosis information for quick troubleshooting.
Installation method: Support DIN rail installation.
Compatibility: Compatible with ABB’s ACS800 series drives and supports integration with other PROFIBUS DP enabled devices.
series
The RPBA-01 belongs to ABB’s ACS800 series of frequency converters and is one of the optional modules in this series of frequency converters.
trait
Efficient communication: supports high-speed data transmission, suitable for factory automation, process control and other scenarios.
Flexible configuration: Supports multiple configuration modes for easy installation and commissioning.
Easy maintenance: The module is small, easy to install and replace, and low maintenance costs.
High reliability: With good stability and reliability, support for remote monitoring and control.
effect
Connecting the inverters to the network: ABB inverters are seamlessly connected to the PROFIBUS DP network for data exchange with other automation equipment.
Remote monitoring and control: Remote monitoring and parameter adjustment of the inverter through SCADA system or PLC.
Extend system function: Extend the function of inverter through PROFIBUS DP network to improve the overall performance of the system.
use
Industrial automation: Used in factory automation, process control, robot control and other scenarios.
Remote monitoring: remote monitoring and control of the inverter.
System integration: Integration of the inverter into a broader automation system.
Application field
Factory automation: For inverter control on factory production lines.
Process control: Used in chemical industry, water treatment, energy management and other fields.
Robotics: Providing efficient data communication in robot manufacturing and applications.
Smart manufacturing: Used for equipment monitoring and data acquisition in smart factories.
