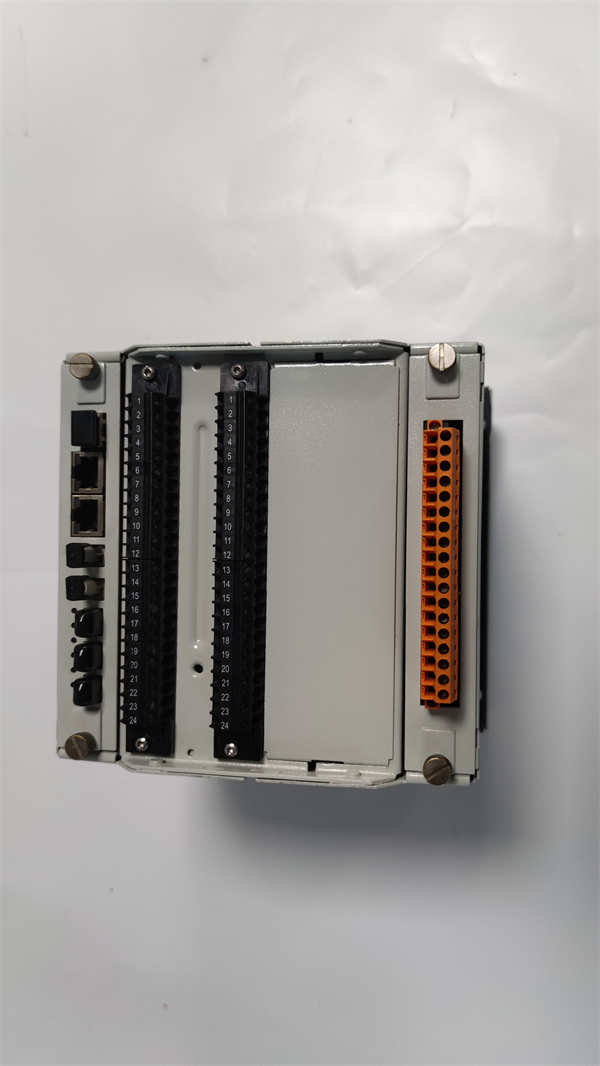

REU615 HBUAEAADANB6ANN1XG

Description

The ABB REU615 HBUAEAADANB6ANN1XG is a voltage protection measure and control device from the ABB Relion®615 family, designed to provide voltage and frequency protection in utility and industrial distribution systems. Here is a detailed description of the product:

ABB REU615 HBUAEAADANB6ANN1XG Product description

The ABB REU615 is a versatile voltage protection measurement and control device with a compact design for distributed power grids. It can realize the functions of busbar low voltage and overvoltage monitoring, load shedding and recovery, generator and other AC equipment over frequency and low frequency protection. In addition, the device also supports automatic and manual voltage regulation functions, which is suitable for voltage regulation of electric on-load voltage regulator switching transformers.

Product parameter

Rated voltage: 100~240 VAC.

Protection class: IP40.

Operating temperature: The specific parameters are not clear, but usually suitable for industrial environments.

Communication protocols: IEC61850, Modbus, DNP3, and IEC60870-5-103 are supported.

Display mode: Large size HMI (human-machine interface) display, support local access and remote control.

Product specification

Standard configuration:

Standard Configuration A: For bus undervoltage and overvoltage monitoring, load shedding and recovery.

Standard B: Suitable for voltage regulation of electric on-load regulator switching transformers.

Size and weight: The exact size is not specified, but the device is compact and easy to install and debug.

series

The ABB REU615 is part of the Relion®615 family of products focused on the protection and control of power systems.

trait

Highly integrated: Supports multiple protection functions, including overcurrent, undervoltage, overvoltage, frequency offset detection, etc.

Flexible communication capabilities: Supports multiple communication protocols for easy integration with other devices.

High reliability: digital protection technology is adopted to ensure the stable operation of the power system.

Modular design: Supports pluggable modular installation for easy maintenance and upgrade.

Function and use

The ABB REU615’s primary role is to protect the electrical equipment in the power system and ensure its safe operation. It is widely used in the following areas:

Public and industrial distribution systems: grids for distributed generation.

Power plants and the energy industry: For the protection of generators and other AC equipment.

Transportation: Suitable for railway, subway and other transportation system power protection.

Renewable energy: Support wind power, solar power, etc.

Application field

Applications for the ABB REU615 include, but are not limited to:

Power system: Used for overcurrent protection, frequency protection, voltage regulation, etc.

Industrial automation: Reliable power protection in factories and industrial facilities.

Transportation: Protection of power systems for railways and subways.

Renewable energy: Support the stable operation of wind and solar power systems.
