REM615 HBMCAEAGANB6ANN1XG

Description

ABB REM615 HBMCAEAGANB6ANN1XG is a digital motor protection measurement and control device designed for medium and large rotating motors and belongs to the ABB Relion® family. Here is a detailed description of the product:

ABB REM615 HBMCAEAGANB6ANN1XG Product description

REM615 HBMCAEAGANB6ANN1XG is a high performance, flexible and reliable protection measurement and control device for the protection, control, measurement and monitoring of asynchronous motors. It integrates a variety of functions, including overcurrent protection, ground fault protection, voltage loss protection, overvoltage protection, frequency protection, rotor temperature monitoring, and supports real-time measurement of voltage and power.

The product is suitable for the main protection of high-voltage motors and related drives, and is widely used in manufacturing, processing industry and power systems, such as power plants, substations, industrial drive equipment, etc.

Product parameter

Rated voltage: According to the specific model, refer to the official manual or consult a sales representative.

Rated current: Determined according to the specific model.

Communication protocols: Support standard protocols such as IEC61850, Modbus, DNP3, and IEC 60870-5-103.

Protection class: IP65 to ensure reliable operation in harsh environments.

Dimensions: Height 220 mm, width 160 mm, depth 130 mm.

Weight: About 2.5kg.

Operating temperature range: -20°C to +60°C.

Mounting method: wall-mounted or DIN rail mounting is optional.

Product specification

The REM615 is part of the ABB Relion® family and is designed for industrial automation and control.

Supports local and remote start/stop control.

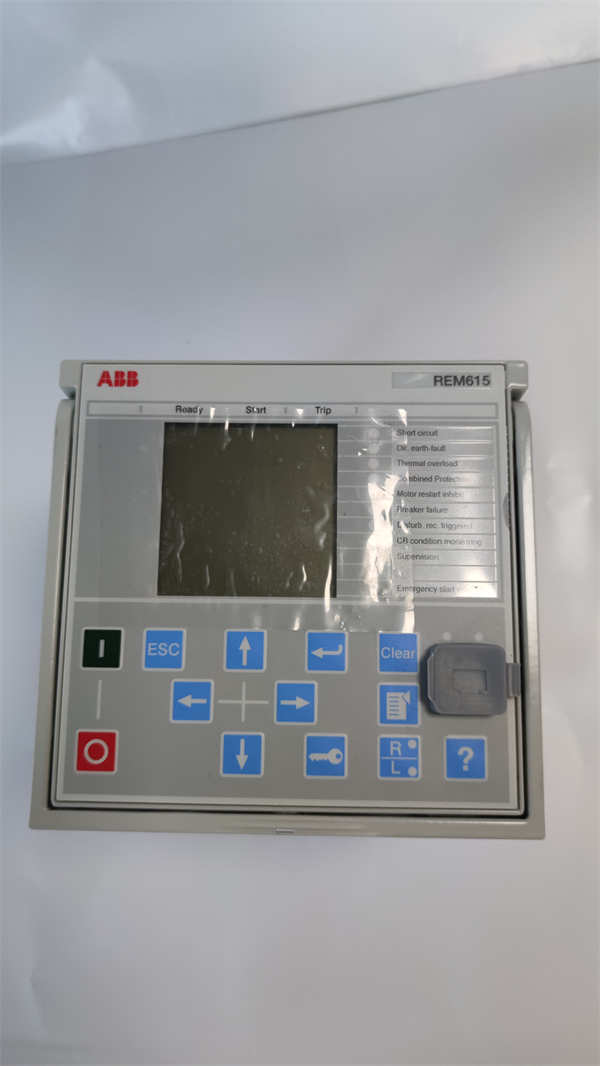

Large LCD screen is provided for easy operation and monitoring.

Series and features

The REM615 is part of the ABB Relion® family and belongs to the 615 series. Known for its high reliability, flexibility and advanced nature, the series is suitable for the protection and control of medium and large asynchronous motors.

Function and use

Protection function: Provides over current, over voltage, under voltage, ground fault, short circuit and other protection functions.

Control function: Support motor start, stop and reverse control.

Measurement function: real-time monitoring of voltage, current, power, power factor and other parameters.

Communication function: Support a variety of communication protocols, easy to exchange data with other devices.

Application field

REM615 is widely used in the following fields:

Power system: power plants, substations, etc.

Industrial manufacturing: CNC machine tools, metallurgy, petrochemical, paper printing, etc.

Municipal engineering: water treatment, environmental protection, etc.

Other fields: mechanical electronics, automobile manufacturing, textile machinery, etc.

peculiarity

High performance and reliability: The use of advanced digital technology to ensure the safe operation of equipment under various working conditions.

Flexible configuration: Support a variety of protection and measurement functions, can be customized according to requirements.

Friendly man-machine interface: equipped with large LCD screen, simple and intuitive operation.

Comply with international standards: comply with international standards such as IEC61850 to ensure product quality and compatibility.
