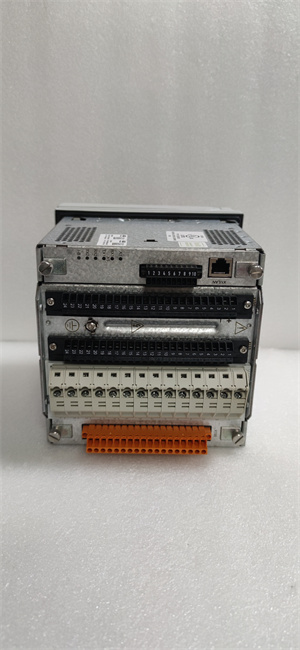

REF615E_E HBFEAEAGABCCANC11E

Description

The ABB REF615E_E HBFEAEAGABCCANC11E is a high performance protective relay from ABB’s REF615 family used for protection, control and measurement functions in industrial power distribution systems. Here is a detailed description of the product:

 ABB REF615E_E HBFEAEAGABCCANC11E Product description

The ABB REF615E_E HBFEAEAGABCCANC11E is a comprehensive protection module for utility substations and industrial distribution systems. It integrates protection, control, monitoring and management functions, and can detect and respond to various abnormal situations in the power system in real time to ensure the safe and stable operation of the system.

Product parameter

Rated current: 600 A to 6300 A.

Rated voltage: 400 V to 690 V.

Communication interface: Supports RS485, Modbus RTU, Ethernet, IEC61850 and other communication protocols.

Operating temperature range: -40℃ to +70℃.

Dimensions: 360 x 250 x 180 mm.

Protection class: IP54.

Installation method: Screw connection.

Product specification

Series: REF615E series.

Type: protective relay.

Functions: over current protection, short circuit protection, over voltage protection, under voltage protection, phase loss protection, single phase grounding protection, zero sequence current protection, etc.

Features: High precision, high reliability, easy to use, compact design.

Series and features

The ABB REF615E series is ABB’s range of high-performance protective relays for radiant, ring and grid distribution networks. The series has the following features:

Versatility: Integrated protection, control and measurement functions.

Flexibility: Supports multiple communication protocols and configuration options.

High reliability: The use of high-quality materials, with long-term stable performance.

Ease of use: Supports on-site programming and debugging tools for users to customize Settings.

Function and use

ABB REF615E_E HBFEAEAGABCCANC11E is used in the following scenarios:

Power system protection: applicable to the protection of overhead lines and main feeders, as well as backup protection of transformers and other equipment.

Industrial automation: Used in industrial power distribution systems to achieve comprehensive protection and control of equipment and systems.

Measurement and control device management: support real-time monitoring of voltage, current and other parameters of the power system, and diagnosis of equipment status.

Application field

ABB REF615E_E HBFEAEAGABCCANC11E is widely used in the following areas:

Utility substations: for the protection and control of power systems.

Industrial power distribution system: suitable for factories, buildings, transportation and other fields of power distribution network.

Complex network environment: suitable for radial, ring and grid distribution networks.
