REF615E_1G HBFGDAAHNDCCBNA11G

Description

The ABB REF615E_1G HBFGDAAHNDCCBNA11G is a high-performance feeder protection and measurement and control device that is part of the ABB Relion® family for feeder protection, control and monitoring in power systems. Here is a detailed description of the product:

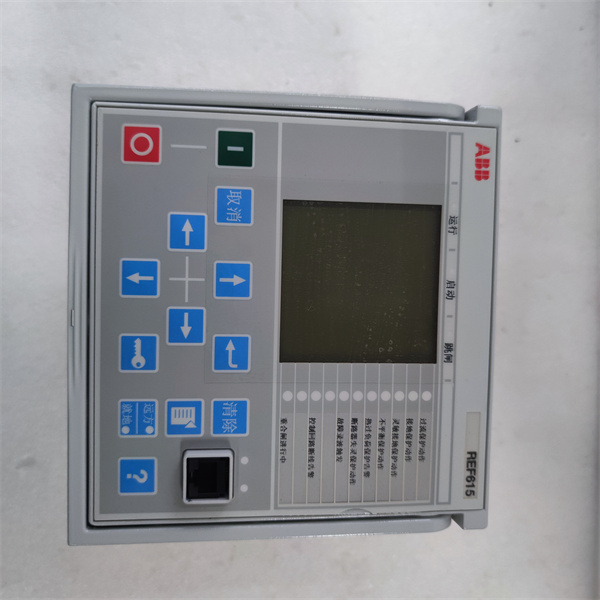

ABB REF615E_1G HBFGDAAHNDCCBNA11G Product description

The ABB REF615E_1G HBFGDAAHNDCCBNA11G is a full-featured, flexible feeder protection and measurement and control device for a wide range of distribution systems requiring protection and measurement and control. It integrates a variety of protection functions, including ground fault protection, overcurrent protection, voltage protection, zero sequence voltage protection, thermal overload protection, and support for optional arc protection.

The device has a compact, pull-out design for easy installation and maintenance, while supporting a modular design that allows users to expand and upgrade as needed. In addition, it also has strong communication capabilities, supporting IEC 61850, Modbus TCP/IP and other protocols, enabling seamless integration with other automation devices.

Product parameter

Rated voltage: 110V to 240V AC.

Rated current: 5A Max.

Frequency: 50Hz or 60Hz.

Operating temperature range: -20℃ to 60℃.

Communication interface: Support IEC 61850, Modbus TCP/IP and other protocols.

Protection functions: include directional and non-directional overcurrent protection, ground fault protection, overvoltage protection, undervoltage protection, and instantaneous/intermittent ground fault protection.

Measurement function: real-time measurement of current, voltage, active power, reactive power and other electrical parameters.

Product specification

Size: The exact size varies according to the model, for example, some models are 200mm x 150mm x 50mm.

Weight: About 1kg.

Protection level: IP20.

series

The ABB REF615E_1G HBFGDAAHNDCCBNA11G is a feeder protection and measurement and control device in the ABB Relion® family. Known for their compact design, high reliability and flexibility, they are suitable for utility substations and industrial power systems.

trait

High sensitivity protection: Provides high sensitivity ground fault protection and directional/non-directional overcurrent protection.

Modular design: Supports flexible configuration and expansion for easy maintenance and upgrade.

Powerful communication capabilities: Support a variety of communication protocols, easy to integrate with other automation equipment.

Status monitoring function: can monitor circuit breaker status, current loop, voltage loop, etc.

Environmental protection and energy saving: Low power consumption design to reduce energy consumption.

Function and use

ABB REF615E_1G HBFGDAAHNDCCBNA11G is used in the following scenarios:

Feeder protection: Protects the feeder from faults such as overcurrent, ground fault, and overvoltage.

Power monitoring: real-time monitoring of electrical parameters, such as current, voltage, power, etc.

Circuit breaker control: Support circuit breaker opening and closing operation, and have a reclosing function.

System integration: Seamless integration with other automation devices (such as SCADA systems) for remote monitoring and control.

Application field

ABB REF615E_1G HBFGDAAHNDCCBNA11G is widely used in the following fields:

Utility substations: For feeder protection and monitoring.

Industrial power systems: Protect industrial distribution networks to ensure safe operation of equipment.

Power transmission and distribution networks: suitable for ring, star and radial networks.

Infrastructure projects: such as power plants, substations, etc.
