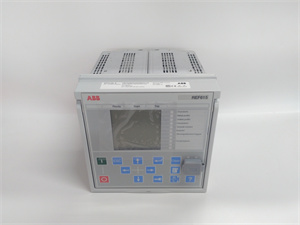

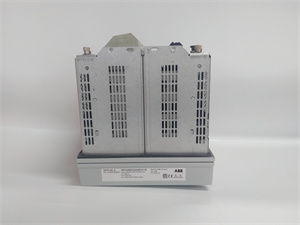

REF615E-E HBFAABAANAA4BNA11E ABB

Description

ABB REF615E-E HBFAABAANAA4BNA11E Feeder Protection and Control Relay Product Documentation

1. Product Overview

2. Technical Specifications

Parameter	Specification
Brand & Model	ABB REF615E-E HBFAABAANAA4BNA11E
Type	Feeder Protection and Control Relay
Voltage Supply	24V DC (±10%) or 100–240V AC (optional)
Current Input	Rated: 1A or 5A (AC); Continuous Thermal: 20A
Voltage Input	100V, 230V, or 690V AC (line-to-line)
Frequency Range	45–65 Hz (50/60 Hz nominal)
Protection Functions	Directional overcurrent, earth fault (impedance/admittance), voltage protection (under/over), frequency protection, arc flash detection, fault location
Communication Protocols	IEC 61850 (GOOSE/SV), IEEE 1588 v2 (PTP), Modbus TCP/RTU, DNP3, IEC 60870-5-103
Isolation	2.5 kV AC between primary and secondary circuits
Operating Temperature	-40°C to +70°C (-40°F to 158°F)
Dimensions (WxHxD)	179.8 mm × 177 mm × 194 mm
Weight	3.5 kg
Compatibility	ABB Relion® systems, third-party DCS/PLC platforms, substation automation networks
Certifications	CE, RoHS, IEC 61010-1 (safety), IEC 61850-3 (substation automation)

REF615E-E HBFAABAANAA4BNA11E

3. Key Advantages & Features

• Comprehensive Protection Suite:
  • Multi-Functional Fault Detection: Combines directional overcurrent protection with advanced earth fault algorithms (admittance/impedance-based), achieving 99.9% fault detection accuracy in complex networks.
  • Arc Flash Mitigation: Optional arc fault detection reduces incident energy by 50%, enhancing safety in switchgear environments.
  • Precision Fault Location: Pinpoints fault positions within 500 meters of the actual location, minimizing repair time by 40%.
• Advanced Communication & Integration:
  • IEC 61850 Compliance: Supports seamless integration with digital substations via GOOSE/SV messaging, enabling real-time data exchange with SCADA systems.
  • IEEE 1588 v2 Timing: Ensures sub-microsecond time synchronization for coordinated protection across distributed grids.
• Rugged Reliability:
  • Extreme Environment Tolerance: Operates reliably in -40°C to +70°C, making it suitable for outdoor installations, offshore platforms, and industrial zones with high thermal stress.
  • High MTBF: Exceeds 250,000 hours, reducing maintenance frequency and lifecycle costs.
• User-Centric Design:
  • Modular Hot-Swap: Allows field replacement without system shutdown, cutting downtime by 30%.
  • Intuitive HMI: Large color LCD display provides real-time status, event logs, and waveform capture for easy diagnostics.

4. Applications & Case Studies

• Power Utilities: Protection of radial, ring, and meshed distribution networks, including those with renewable energy integration (solar/wind farms).
• Industrial Sector: Motor control centers, process pumps, and critical load protection in chemical plants, mining facilities, and manufacturing plants.
• Smart Grids: Enables grid modernization through IEC 61850-based communication and adaptive protection for distributed energy resources (DER).

5. Competitive Comparison

Feature	ABB REF615E-E	Market Alternatives
Temperature Range	-40°C to +70°C	0°C to +60°C (standard)
Fault Location Speed	<500 ms	1–3 seconds (typical)
Communication Redundancy	HSR/PRP (built-in)	Optional add-on (costly)
Arc Flash Protection	Integrated (optional)	Separate module required
MTBF	>250,000 hours	150,000–200,000 hours

REF615E-E HBFAABAANAA4BNA11E

6. Selection Recommendations

• System Voltage & Current: Verify compatibility with your MV system’s voltage (100V–690V AC) and current (1A/5A rated) to ensure proper fault detection.
• Communication Needs: Prioritize this relay if your substation requires IEC 61850 or IEEE 1588 v2 for smart grid integration; basic applications may opt for Modbus-only models.
• Environmental Conditions: Choose the REF615E-E for outdoor/harsh environments; indoor setups with controlled climates may consider compact variants.
• Redundancy Requirements: Deploy in HSR/PRP configurations for critical feeders to eliminate single points of failure.

7. Installation & Maintenance Tips

• ESD Protection: Use anti-static wrist straps during handling to safeguard internal electronics.
• Wiring Practices: Separate control cables from high-voltage conductors to minimize EMI; follow ABB’s guidelines for shielded cable termination.
• Firmware Updates: Regularly update firmware via ABB’s Relion® Configurator to access the latest protection algorithms and security patches.
• Periodic Testing: Conduct annual functional tests using a relay test set to validate protection thresholds and communication integrity.
• Safety Protocol: Power down the system and isolate all voltage/current sources before installing or servicing the relay to prevent electric shock.
