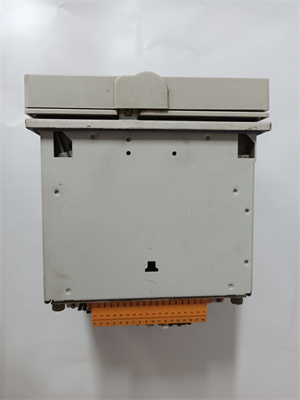

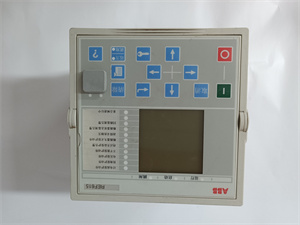

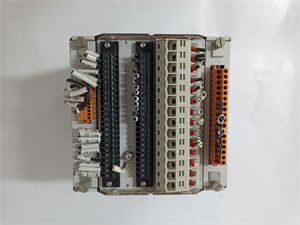

REF615C_C HCFFAEAGANB2BAN1XC

Description

The ABB REF615C_C HCFFAEAGANB2BAN1XC is a high performance feeder protection and measurement and control device for the protection, control and automation of power systems. Here is a detailed description of the product:

ABB REF615C_C HCFFAEAGANB2BAN1XC  Product description

The ABB REF615C_C HCFFAEAGANB2BAN1XC is an Intelligent Electronic Device (IED) designed for medium and high voltage power systems, offering comprehensive protection features and flexible configuration options. It can detect and isolate electrical faults to ensure the safe operation of the system. In addition, the device supports remote control and monitoring functions for a variety of application scenarios in industrial automation and power systems.

Product parameter

Rated voltage: 100-240 VAC.

Rated current: 5A.

Frequency: 50/60Hz.

Operating temperature range: -40°C to +70°C.

Communication protocols: Support IEC 61850, Modbus, DNP3 and Profibus standards.

Protection function:

Overcurrent protection

Earth fault protection

Directional overcurrent protection

Out-of-step protection

Oscillation protection.

Measuring function:

Voltage and current

Power, power factor

Frequency, harmonics.

Control function:

Remote control

Programmable Logic Control (PLC)

Monitoring function.

Product specification

Size: Compact design for easy installation.

Case material: aluminum case.

Weight: About 0.5kg.

Protection class: IP65.

series

The product belongs to the ABB REF615 family, which is known for its high precision, versatility and reliability, and is widely used in industrial automation and power systems.

trait

High performance: The use of advanced digital signal processing technology, with high precision and fast response ability.

Flexible configuration: Protection, measurement, and communication functions can be flexibly configured according to user requirements.

High reliability: suitable for harsh industrial environment, long-term stable operation.

User-friendly interface: Equipped with graphical display, support for local and remote operation.

Function and use

The main role of ABB REF615C_C HCFFAEAGANB2BAN1XC is to protect the feeders in the power system and prevent electrical faults from causing damage to the equipment. Specific uses include:

Utilities: Feeder protection, control and automation of distribution networks.

Industrial enterprises: Feeder protection for industrial power distribution systems.

New energy power generation: Protection of access points of new energy power generation systems.

Rail transit: Protection of rail transit power supply system.

Application field

The product is widely used in the following areas:

Power system: including medium voltage substation, high voltage substation and industrial power system.

Renewable energy systems: such as wind farms and solar power systems.

Industrial automation: factory automation, process control and robot control.

Intelligent building: HVAC, lighting control, etc.
