REF615C-D HCFCACABANB2BAN1XD

Description

ABB REF615C-D HCFCACABANB2BAN1XD feeder protection and measurement device product detailed explanation

Product Overview

ABB REF615C-D HCFCACABANB2BAN1XD is a high-performance digital feeder protection and measurement device,belonging to ABB Relion®The 615 series in the product family.This device is designed specifically for protecting,controlling,measuring,and monitoring public and industrial distribution systems,and can be widely applied to various distribution networks,including radial,ring,and mesh distribution networks.

Product Features

High sensitivity and selectivity:Ground fault protection with high sensitivity and selectivity can quickly and accurately detect and isolate faults.

Rich protection functions:supports multiple protection functions such as directional overcurrent,non directional overcurrent,grounding protection,voltage,frequency,and power quality protection and measurement.

Advanced communication capabilities:Supports multiple communication protocols such as IEC61850,DNP3,IEC 60870-5-103,etc.,enabling seamless integration with the upper computer system.

Flexible configuration:Provides multiple standard configurations that can be flexibly configured according to different application needs.

High reliability:Advanced hardware and software technology are adopted to ensure the long-term stable operation of the equipment.

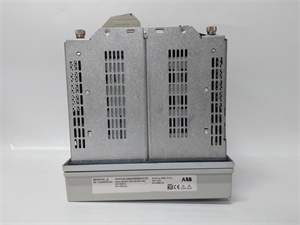

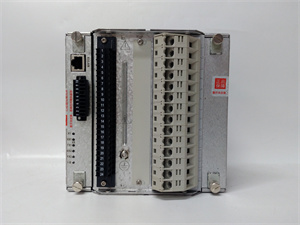

REF615C-D HCFCACABANB2BAN1XD ABB

Product parameters

Model:REF615C-D HCFCACABANB2BAN1XD

Protection functions:directional overcurrent,non directional overcurrent,grounding protection,voltage,frequency,and power quality protection and measurement,etc

Measurement functions:voltage,current,power,power factor,etc

Communication interfaces:IEC61850,DNP3,IEC 60870-5-103,etc

Installation method:DIN rail installation or panel installation

Product specifications

Modular design:convenient for expansion and maintenance

Protection level:IP20

Working environment temperature:-25℃~+55℃

Series Introduction

The REF615 series is ABB Relion®An important member of the product family,this series of products is known for its high performance,reliability,flexibility,and openness.The REF615 series products are widely used in fields such as power systems,industrial enterprises,and buildings.

Product function

Protection:Provides multiple protection functions to prevent equipment and circuit failures and ensure the safe operation of the system.

Control:Achieve remote control of distribution equipment and improve the automation level of the system.

Monitoring:Monitor the operation status of the power grid and promptly detect faults.

Data collection:Collect operational data of the power grid to provide a basis for optimizing the power grid.

Product Usage

REF615C-D HCFCACABANB2BAN1XD is mainly used in the following scenarios:

Distribution system:feeder protection,substation automation

Industrial enterprises:power distribution system protection,motor protection

Building:Protection of Power Distribution System

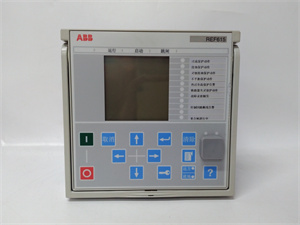

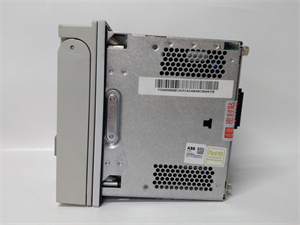

REF615C-D HCFCACABANB2BAN1XD ABB

application area

REF615C-D HCFCACABANB2BAN1XD has a wide range of applications in the following fields:

Power System:Protection and Control of Power Transmission and Distribution System

Industrial Automation:Automation of Distribution Systems in Industrial Enterprises

Building Automation:Automation of Building Power Distribution Systems

Product advantages

High integration:Integrating protection,control,measurement,monitoring and other functions into one,simplifying system design.

Advanced communication function:supports multiple communication protocols,facilitating integration with the upper computer system.

Flexible configuration:It can be flexibly configured according to user needs to meet different application scenarios.

High reliability:Advanced hardware and software technology are adopted to ensure the long-term stable operation of the equipment.

summary

ABB REF615C-D HCFCACABANB2BAN1XD is a powerful and reliable feeder protection and measurement device that can provide comprehensive protection and control for power distribution systems.
