REF615A_E HAFAABAAABE1BCA1XE

Description

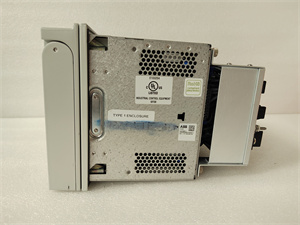

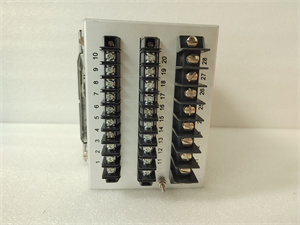

The ABB REF615A_E HAFAABAAABE1BCA1XE is a high performance feeder protection and control relay, the following is a detailed description of the product:

ABB REF615A_E HAFAABAAABE1BCA1XE Product description

The ABB REF615A_E HAFAABAAABE1BCA1XE is a protection and control device specially designed for power systems, mainly used for feeder protection, overcurrent protection, short circuit protection and fault detection. It adopts advanced digital technology and algorithm, has the characteristics of high precision and high speed response, and is suitable for complex power system environment.

Product parameter

Input voltage: 90-264 VAC.

Frequency: 50/60 Hz.

Operating temperature range: -25°C to +70°C.

Communication protocols: Support IEC 61850, Modbus, DNP3 and other communication protocols.

Protection level: IP20.

Size: The exact size is not explicitly mentioned, but its compact design is easy to install and integrate.

Product specification

Model: REF615A_E HAFAABAAABE1BCA1XE.

Series: REF615 series, a medium pressure product system.

Functions: feeder protection, overcurrent protection, short circuit protection, grounding protection, etc.

Application: Suitable for power main equipment protection, transmission line protection, safety automatic device, etc.

Series and features

The ABB REF615A_E belongs to the REF615 family, which is known for its high performance, reliability, flexibility and openness. Its main features include:

High-performance protection: Supports multi-level protection and regional configuration to meet the protection requirements of complex power systems.

Flexible communication capabilities: Supports multiple industrial communication protocols for easy integration with other systems.

User-friendly interface: Provides rich operation and maintenance functions, and supports remote monitoring and control.

High reliability and long life: The use of high-quality components to ensure long-term stable operation of equipment in harsh environments.

Function and use

The main functions of ABB REF615A_E are:

Protection function: Through real-time monitoring of current, voltage and other parameters, timely detection and isolation of faults, to ensure the safe operation of the power system.

Control function: Realize the remote control of the distribution equipment, improve the automation level of the system.

Fault detection and isolation: Quickly identify and isolate fault areas to reduce outage time.

Application field

ABB REF615A_E is widely used in the following areas:

Industrial automation: Used for feeder protection and control in power distribution systems in factories.

Power system: suitable for the protection and control of substations, power plants and transmission and distribution equipment.

Buildings and Infrastructure: protection and control of electrical systems for buildings.
