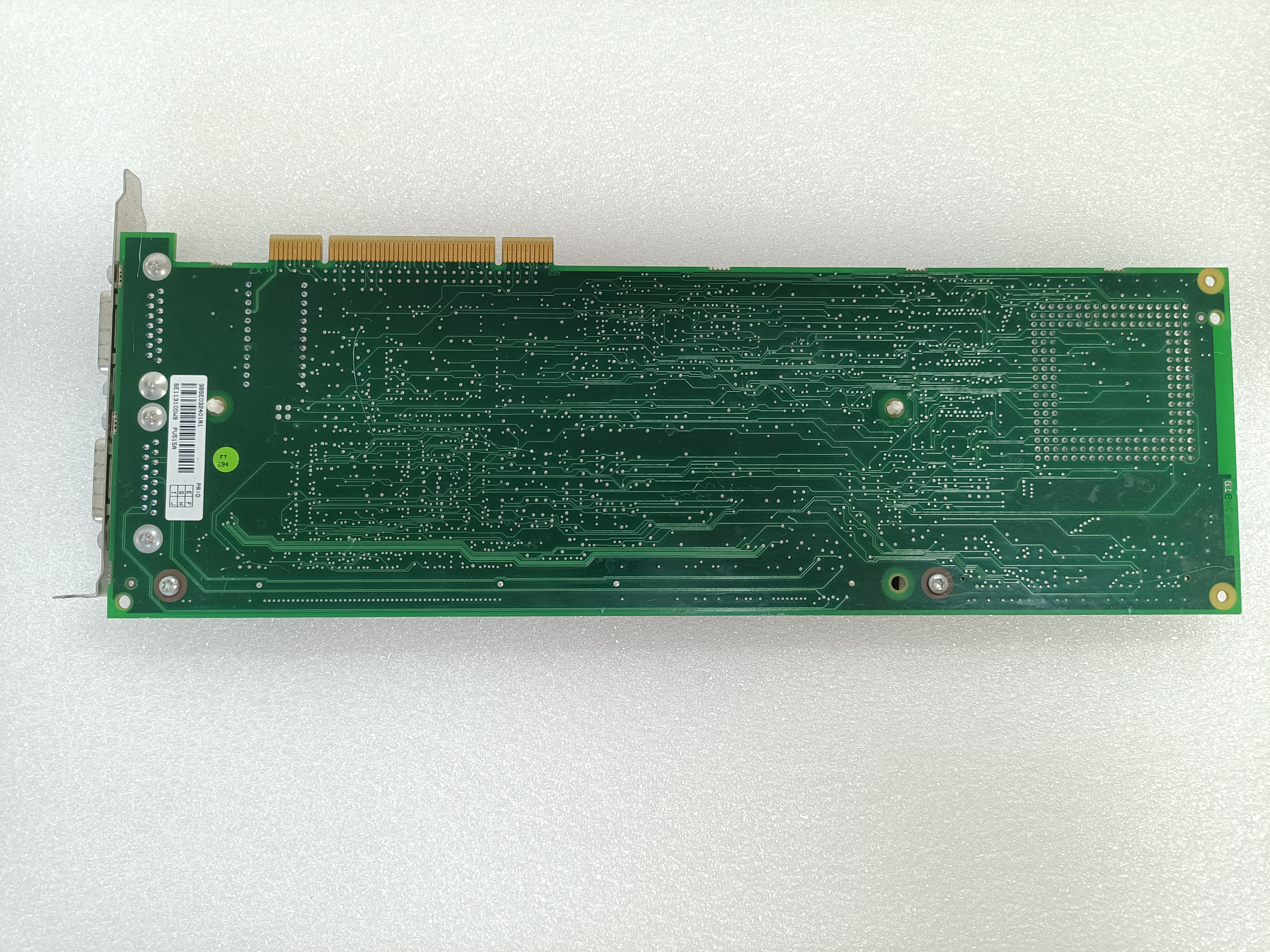

ABB PU515A 3BSE032401R1 is a Real-Time Accelerator (RTA) board designed for ABB’s Advant OCS systems, including the Advant Station 500 series, to enhance real-time processing and communication in industrial automation. As a high-performance module, the
PU515A 3BSE032401R1 offloads computational tasks from the main CPU, enabling faster data transfer and reduced latency in critical applications. It features a 32-bit/64-bit PCI/PCI-X interface (33 MHz/100/133 MHz), dual-channel MB300 communication (via CS503V1 module), and 16 MB RAM for handling complex control algorithms. With two 15-pin D-sub connectors, it integrates seamlessly with field devices, sensors, and actuators. The
PU515A 3BSE032401R1 is ideal for industries requiring rapid data processing, such as power generation, manufacturing, and oil/gas, where real-time responsiveness is critical.
| Parameter |
Specification |
| Model |
PU515A 3BSE032401R1 |
| Brand |
ABB |
| Type |
Real-Time Accelerator (RTA) Board |
| Interface |
PCI/PCI-X (32-bit/64-bit, 33/100/133 MHz) |
| Communication |
Dual-channel MB300 (via CS503V1 module) |
| Memory |
16 MB RAM |
| Connectors |
2×15-pin female D-sub |
| Voltage |
3.3V/5V (PCI bus-powered) |
| Dimensions |
34.2 × 25.9 × 7.42 cm (W×H×D) |
| Weight |
~0.4 kg (module) / ~3.6 kg (packaged) |
| Compatibility |
ABB Advant OCS systems (Advant Station 500) |
| Environment |
-25°C to +60°C, industrial-grade protection |
| RoHS Compliance |
Yes |
PU515A 3BSE032401R1
- Real-Time Performance: Reduces CPU load by 40–60% for faster control loops (e.g., PID algorithms, HMI updates).
- Dual-Channel Communication: Supports redundant MB300 networks for reliable data exchange with field devices.
- Flexible Integration: Compatible with 32-bit/64-bit PCI slots (retrofit-friendly for legacy systems).
- Compact Design: Space-saving form factor (34.2×25.9×7.42 cm) for modular control cabinets.
- Industrial Grade: Operates in harsh environments (-25°C to +60°C) with EMI/RFI protection.
- Hot-Swap Capability: Replaceable without system shutdown (requires compatible backplane).
Case Study: A power plant upgraded its boiler control system with PU515A 3BSE032401R1, achieving 20% faster response times in turbine speed regulation, reducing downtime by 15%.
- Industries: Power generation, oil/gas, manufacturing, water treatment.
- Scenarios: Real-time data acquisition, PLC/HMI acceleration, distributed control systems (DCS).
- Use Case: A chemical plant used the PU515A 3BSE032401R1 to manage 500+ analog inputs in a distillation unit, enabling sub-10ms data processing for precise temperature control.
Compared to generic RTAs:
- Native Compatibility: Optimized for ABB Advant OCS, ensuring plug-and-play integration (vs. generic PCI cards requiring custom drivers).
- Redundancy Support: Dual MB300 channels for fault tolerance (vs. single-channel alternatives).
- Performance Density: 16 MB RAM + dedicated processing cores vs. 8–12 MB in standard modules.
- Long-Term Support: Backed by ABB’s lifecycle management (vs. short-lived third-party solutions).
PU515A 3BSE032401R1
- System Compatibility: Verify compatibility with ABB Advant OCS (e.g., Advant Station 500, AC 800M).
- Processing Needs: Choose PU515A for mid-scale systems (500–1,000 I/O points); upgrade to PU518/PU519 for larger installations.
- Interface Requirements: Ensure PCI/PCI-X slots are available (avoid USB-dependent modules for deterministic performance).
- Budget: Balances cost ($500–$1,500) with industrial-grade reliability (vs. premium-brand RTAs costing 20–30% more).
- Installation:
- Use anti-static gear; avoid bending PCI pins.
- Securely fasten the module to the backplane (torque screws to 0.5 N·m).
- Power Management: Ensure stable 3.3V/5V supply (voltage spikes >10% may damage the board).
- Maintenance:
- Clean dust from vents quarterly (use compressed air).
- Replace thermal paste every 3 years (for prolonged high-temperature use).
- Software: Update firmware via ABB’s System 800xA Toolbox (critical for security patches).
