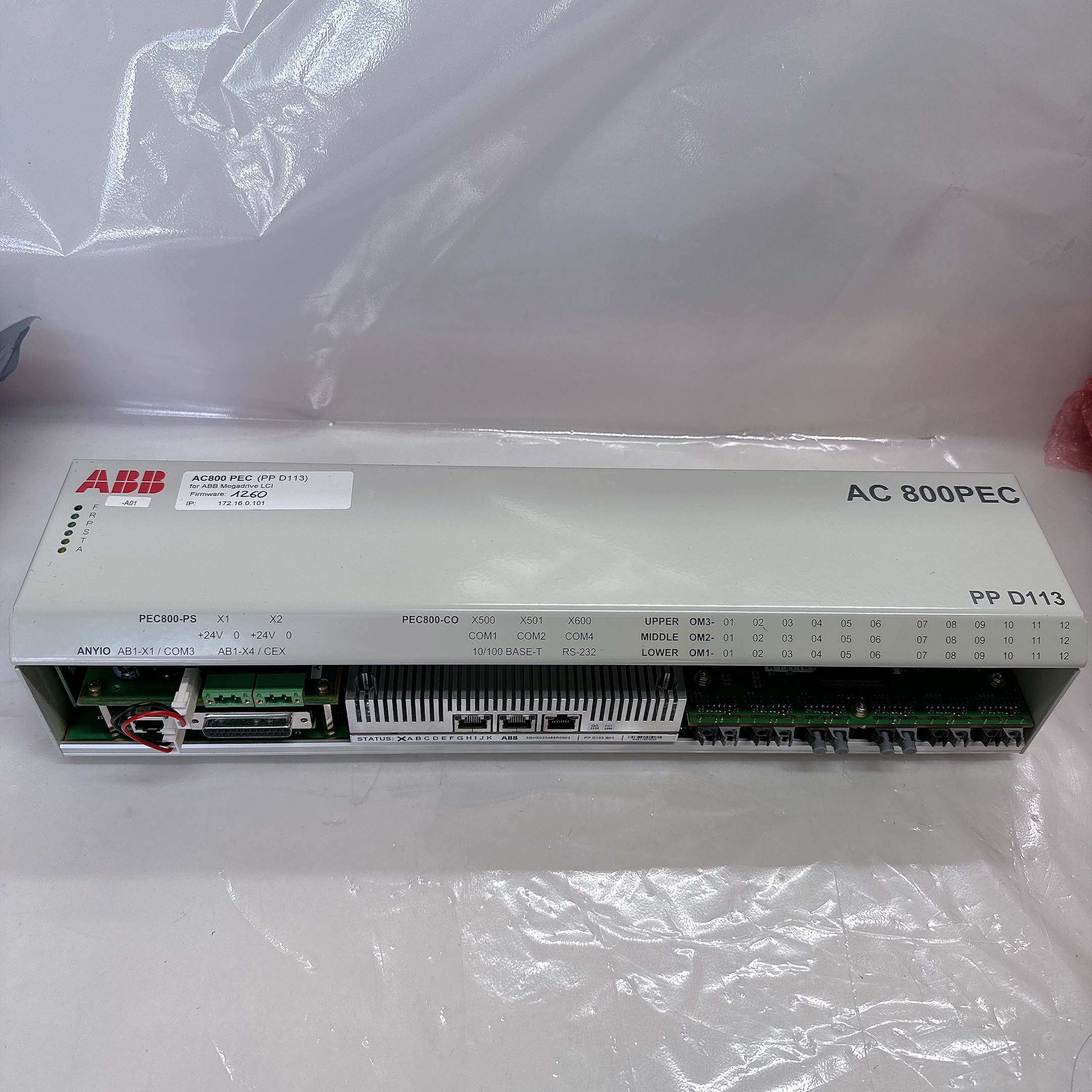

PPD113B03-26-100110

Description

Product Description

Product Parameters

Parameter	Specification
Model	PPD113B03-26-100110
Brand	ABB
Type	Digital Input Module (16 channels)
Voltage	24 V DC ±20% (power supply); 24 V DC (input)
Input Current	4 mA per channel
Response Time	≤1 ms (standard); ≤0.5 ms (fast mode)
Isolation	500 V DC (channel-to-ground)
Communication	Profibus DP/V1 (9.6 kbps–12 Mbps), Ethernet/IP
Enclosure	35 mm DIN rail mountable, IP20 (module), IP65 (with protective cover)
Operating Temperature	-40°C to +70°C
Dimensions	100 x 100 x 50 mm (W x H x D)
Certifications	CE, UL, CSA, IEC 61131-2

PPD113B03-26-100110

Advantages and Features

• Rugged Reliability: Surge protection (600 V transient) and wide temperature range (-40°C to +70°C) ensure operation in extreme climates (e.g., Arctic oil rigs, desert solar farms).
• Modular Design: Hot-swap capability reduces downtime; expandable via ABB’s AC 800M I/O system (supports up to 1,024 modules per network).
• Advanced Diagnostics: Real-time channel status (LEDs) and fault detection (short circuit, open circuit) minimize troubleshooting time.
• Energy Efficiency: Low power consumption (≤3 W) and sleep mode reduce operational costs.
• Case Study: A German automotive plant reduced downtime by 30% using the PPD113B03-26-100110 for robotic welding line monitoring, achieving 99.8% uptime.

Application Areas and Use Cases

• Industries: Automotive manufacturing, power generation, oil & gas, chemical processing, and water treatment.
• Scenarios: Machine safety interlocks, conveyor control, sensor data acquisition, and emergency stop systems.
• Use Case: A U.S. wastewater treatment facility deployed 50+ PPD113B03-26-100110 modules to monitor 1,000+ level sensors, improving alarm response time by 40%.

Competitor Comparison

• Higher Channel Density: 16 channels (vs. 8–12 in alternatives).
• Extended Temperature Range: -40°C to +70°C (vs. standard -25°C to +60°C).
• Faster Response: ≤1 ms (vs. 2–5 ms in legacy systems).
• Open Protocol Support: Native Profibus and Ethernet/IP (vs. limited proprietary protocols in some 竞品).


  PPD113B03-26-100110

Selection Recommendations

• Environment: Choose the PPD113B03-26-100110 for outdoor or high-vibration settings (DIN rail mounting with shock resistance).
• Compatibility: Ensure alignment with ABB’s AC 800M or 第三方 PLCs (Profibus/Ethernet drivers available).
• Scalability: Pair with ABB’s PPD123 (analog output) or PPD133 (analog input) for full I/O system integration.
• Budget: Cost-effective ($200–$250) with 5-year MTBF (vs. 3–4 years in premium alternatives).

Precautions

1. Installation: Secure DIN rail mounting; torque screws to 0.5–0.8 N·m.
2. Wiring: Use 0.5–1.5 mm² shielded cables; terminate grounds per IEC 61000-5-2.
3. Power: Verify 24 V DC stability (avoid voltage spikes >600 V).
4. Software: Configure via ABB’s Control Builder M (latest version 5.1 SP3+).
5. Safety: Disconnect power before replacing modules; wear ESD wrist straps.
