PPC322BE HIEE300900R1

Description

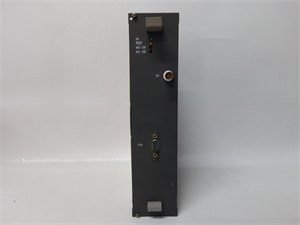

Product Analysis of ABB PSR-2 Processor+Fieldbus PPC322BE HIEE300900R1

Product Overview

The ABB PSR-2 series soft starter is a powerful and highly reliable motor starting control device.PPC322BE HIEE300900R1 is a specific model in this series,which achieves precise control and flexible system integration of the motor starting process through the integration of PSR-2 processor and fieldbus technology.

Product Features

PSR-2 processor:Provides advanced control algorithms to achieve functions such as motor soft start,soft stop,acceleration/deceleration control,effectively protecting the motor and drive system.

Fieldbus interface:Supports multiple fieldbus protocols,facilitating communication with other automation devices and achieving system integration.

High reliability:Using high-quality components,it has multiple protection functions such as overload,short circuit,overheating,etc.,ensuring long-term stable operation of the equipment.

Easy to operate:Provides an intuitive parameter setting interface,making it convenient for users to configure and debug.

Flexible Expansion:Multiple expansion modules can be selected to meet different application needs.

Product parameters

Rated current:322A

Rated voltage:3000V

Control mode:PSR-2 processor

Fieldbus interfaces:MODBUS RTU,PROFINET,etc

Protection functions:overload,short circuit,overheating,undervoltage,overvoltage,etc

Cooling method:air cooling

Installation method:Wall mounted

Product specifications

Working environment temperature:-25℃~+55℃

Relative humidity:5%~95%

Series Introduction

The PSR-2 series is a compact soft starter launched by ABB,widely used in various industrial fields.This series of products has the characteristics of compact structure,reliable performance,and easy installation,and is highly favored by users.

Product function

Soft start:By gradually increasing the motor voltage,smoothly starting the motor,reducing the starting surge current,and extending the motor life.

Soft stop:By gradually reducing the motor voltage,the motor is smoothly stopped to avoid mechanical shock.

Acceleration/deceleration control:Accurately control the acceleration and deceleration process of the motor according to the load demand.

Overload protection:prevent motor overload,protect the motor and drive system.

System integration:Seamless integration with other automation devices is achieved through fieldbus interfaces.

Product Usage

PSR-2 soft starter is widely used in the following fields:

Pump loads:water pumps,oil pumps,fans,etc

Fan load:ventilation fan,smoke exhaust fan,etc

Conveyor load:belt conveyor,drum conveyor,etc

Compressor load:air compressor,refrigeration compressor,etc

Other mechanical loads:mixers,crushers,etc

application area

PSR-2 soft starter has been widely used in the following industries:

Petrochemical industry:pumps,fans,compressors,etc

Metallurgy:cranes,conveyors,etc

Building materials:mixers,crushers,etc

Water treatment:pumps,fans,etc

Electricity:fans,pumps,etc

summary

The ABB PSR-2 processor and fieldbus PPC322BE HIEE300900R1 is a powerful and highly reliable soft starter that provides reliable support for motor start-up by integrating advanced control algorithms and fieldbus technology.
