Description
The

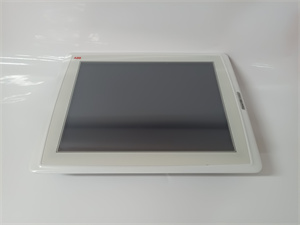

ABB PP865A 3BSE042236R2 is a high-performance human-machine interface (HMI) designed for industrial automation systems, part of ABB’s Panel 800 series. This 15-inch TFT touch panel offers intuitive control and monitoring, combining robust hardware with user-friendly software for seamless integration into diverse industrial environments. Ideal for applications requiring real-time interaction, the
PP865A 3BSE042236R2 supports graphics, text, and touch operations, enabling operators to manage processes efficiently. Its modular design and compatibility with ABB’s AC800M system make it a versatile choice for industries such as manufacturing, energy, and chemical processing.
| Parameter |
Specification |
| Display Type |
TFT-LCD, 15-inch widescreen |
| Resolution |
1024 × 768 pixels (4:3 aspect ratio) |
| Input Voltage |
24V DC ±10% |
| Input Current |
1.2A |
| Operating Temperature |
-40°C to +70°C |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
5%–95% (non-condensing) |
| Communication Interface |
Profibus DP |
| Mounting Method |
Din rail / Panel cut-out (front/flush) |
| Weight |
~4.64 kg |
| Touch Technology |
Resistive (polyester on glass, 1M operations) |
PP865A 3BSE042236R2
- High Reliability: Built with an aluminum alloy housing and IP65-rated front panel (NEMA 4X), ensuring durability in harsh environments.
- Longevity: CCFL backlight with >35,000 hours of operational life at 25°C.
- User-Friendly Design: 15-inch widescreen with 64K color support for clear visualization; resistive touch technology compatible with gloves or stylus.
- Wide Compatibility: Integrates with ABB’s AC800M system and supports Panel Builder 800 software (Version 5+).
- Environmental Resilience: Operates across extreme temperatures (-40°C to +70°C) and humidity ranges.
- Industries: Manufacturing (textile/packaging machinery), energy (power generation), chemical processing, water/wastewater treatment.
- Case Study: ABB PP865A 3BSE042236R2 was deployed in a textile plant to control automated looms. The touch panel’s real-time monitoring and intuitive interface reduced downtime by 20% and improved operator efficiency by streamlining machine adjustments.
Compared to similar HMI panels, the PP865A 3BSE042236R2 stands out with:
- Superior Durability: Extended temperature range (-40°C to +70°C) vs. standard 0°C to +50°C.
- Higher Resolution: 1024 × 768 pixels (15-inch) vs. common 800 × 480 pixels (10-inch).
- Enhanced Compatibility: Native support for ABB’s AC800M system, reducing integration complexity.
PP865A 3BSE042236R2
- Compatibility: Ensure alignment with your control system (e.g., ABB AC800M).
- Environment: Verify temperature/humidity requirements match the panel’s specifications.
- Size and Resolution: Opt for 15-inch display for complex processes needing detailed visuals.
- Budget: Balance features (e.g., touch technology, warranty) with project costs (24-month warranty for new units).
- Installation:
- Follow DIN rail mounting guidelines; avoid static discharge during setup.
- Use the recommended RX865 touch cover (EXC3BSE042236R2) for screen protection.
- Maintenance:
- Clean the screen with a non-abrasive cloth; avoid harsh chemicals.
- Replace the real-time clock battery (rechargeable) every 5–7 years.
- Safety:
Shanxi Xinyeda International Trade Co., Ltd. is your trusted partner for
ABB PP865A 3BSE042236R2 and other automation spares. We offer sales, technical support, and worldwide shipping. Visit
www.xydcontrol.com or contact us for customized solutions.
