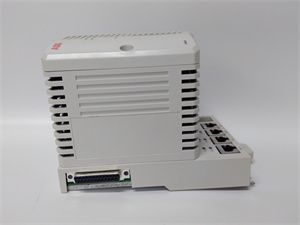

PM866K01 3BSE050198R1

Description

The ABB PM866K01 3BSE050198R1 is a high-performance industrial automation processor unit that belongs to ABB’s Advant Controller 800xA family. Here is a detailed description of the product:

ABB PM866K01 3BSE050198R1 Product Description

The ABB PM866K01 is a high-performance processor unit designed for industrial automation, capable of performing complex control algorithms, data processing and communication tasks. As a core component, it is responsible for data acquisition, processing, control and display functions, supporting real-time monitoring and optimization of industrial processes.

Product parameter

Processor type: dual-core ARM Cortex-A9 processor at 800 MHz.

Memory:

RAM: 4 GB eMMC memory.

Flash: 8 MB.

Communication interface:

Two Ethernet ports (supporting Modbus TCP/IP, PROFIBUS and other protocols).

Two serial ports (RS-232 or RS-485).

Input/output points:

A maximum of 2048 digital I/O points are supported.

Supports up to 512 analog I/O points.

Operating temperature range: -25°C to +70°C.

Power supply: 24 V DC.

Size: Standard module size, which may vary by model.

Product specification

Protection level: IP20.

Mounting method: DIN rail mounting.

Weight: Approx. 150g.

Series and features

The ABB PM866K01 is part of ABB’s Advant Controller 800xA family, which features high performance, high reliability, flexible configuration and modular design. It is compatible with IEC 61131-3 standards and supports multiple programming languages.

Function and use

ABB PM866K01 is mainly used in the field of industrial automation, and its core roles include:

Process control: for the precise control of temperature, pressure, flow and other parameters.

Data acquisition and processing: Take data from sensors and other devices and analyze it in real time.

Device control: Through the execution of the control algorithm to generate instructions, drive the executive mechanism.

Man-machine interaction: provides a friendly user interface for easy operation and monitoring.

Application field

ABB PM866K01 is used in a wide range of industries, including but not limited to:

Power industry: Control of power plants and substations.

Petrochemical industry: process control, safety protection.

Metallurgical industry: steel rolling, steelmaking process control.

Paper industry: pulp manufacturing, paper processing.

Manufacturing: Production line control, CNC machine tools, machining centers.

Traffic system: signal coordination, traffic flow management.

Environmental monitoring: monitoring of atmospheric conditions, water quality and other parameters.
