PM864AK01 3BSE018161R

High Performance processor: The PowerPC processor supports high frequency operation and powerful data processing capabilities.

High reliability: Redundancy design and fault self-diagnosis function ensure stable system operation.

Flexible scalability: Supports a variety of I/O modules and communication interfaces to meet different industrial needs.

Real-time control ability: can process feedback data in real time and dynamically adjust control parameters.

Easy to use: Provides intuitive user interface and rich software support for easy configuration and maintenance.

Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

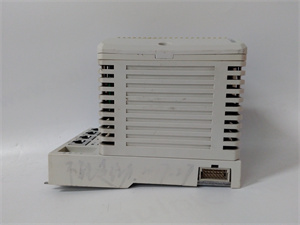

The ABB PM864AK01 3BSE018161R is a high-performance industrial automation processor unit belonging to the AC 800M family. Here is a detailed description of the product:

ABB PM864AK01 3BSE018161R Product description

The PM864AK01 3BSE018161R is a Central Unit primarily used in industrial automation and control systems to perform real-time control tasks as the core controller. It integrates a variety of functions, including process control, motion control and equipment control, and is suitable for various industrial scenarios.

Product parameter

Processor type: PowerPC 604e or Motorola PowerPC 604e at 400 MHz.

Memory capacity: 512 MB SDRAM and 256 MB Flash.

Communication interface: Support a variety of communication protocols and interfaces, such as RS-232, RS-485, USB, PROFIBUS DP, RJ45 Ethernet, etc.

Operating temperature range: -40°C to +70°C.

Dimensions: 120 mm x 200 mm x 45 mm or 120 mm x 220 mm x 110 mm (depending on the model).

Weight: About 1.5 kg.

Protection class: IP65, suitable for harsh environment.

Power supply voltage: 24V DC.

Product specification

Maximum power consumption: 40 watts.

Storage temperature range: -55°C to +85°C.

Operating humidity range: 5% to 95% (no condensation).

series

The PM864AK01 is part of ABB’s AC 800M series, which has a flexible modular design for medium to large industrial automation applications.

trait

High Performance processor: The PowerPC processor supports high frequency operation and powerful data processing capabilities.

High reliability: Redundancy design and fault self-diagnosis function ensure stable system operation.

Flexible scalability: Supports a variety of I/O modules and communication interfaces to meet different industrial needs.

Real-time control ability: can process feedback data in real time and dynamically adjust control parameters.

Easy to use: Provides intuitive user interface and rich software support for easy configuration and maintenance.

Function and use

PM864AK01 is mainly used in the following areas:

Process control: control temperature, pressure, flow and other industrial process parameters.

Motion control: Control the precise movement of servo motors, stepper motors and other equipment.

Equipment control: Monitor and control sensors, actuators, motors, valves and other equipment.

Data acquisition and monitoring: Collect data from sensors and meters and monitor system health.

Application field

PM864AK01 is widely used in the following industries:

Manufacturing: For production line automation and robot control.

Energy industry: power plant automation, water treatment systems.

Transportation systems: such as transportation and logistics management.

Building automation: such as building automation systems.

Chemical industry: Used for chemical process control.
