PFTL101B 10KN 3BSE004197R1

Description

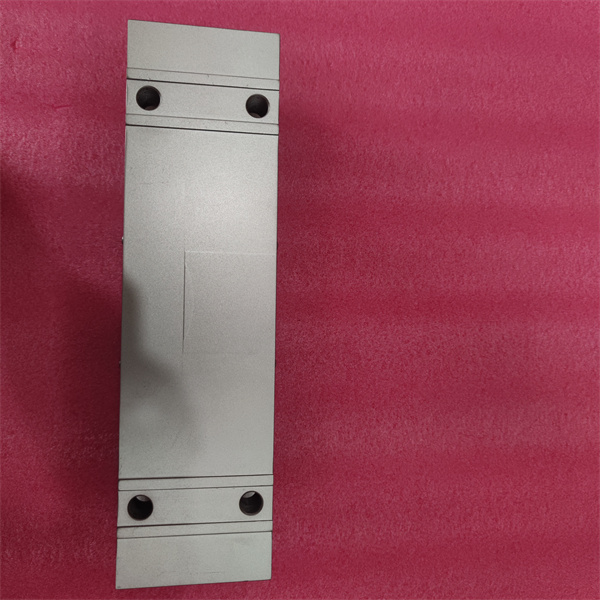

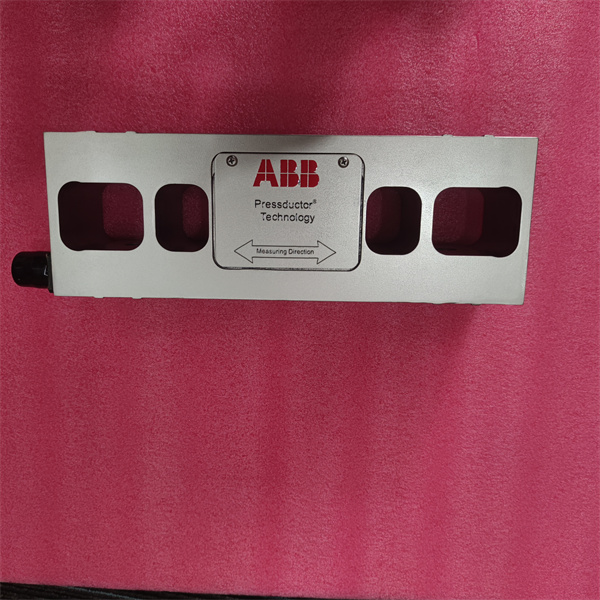

The ABB PFTL101B 10KN 3BSE004197R1 is a high-performance load cell that belongs to the PFTL family. Here is a detailed description of the product:

ABB PFTL101B 10KN 3BSE004197R1 Product description

The ABB PFTL101B 10KN 3BSE004197R1 is a load cell based on the piezomagnetic principle, which measures the force value through the change of the magnetic permeability of the magnetic material under the action of a mechanical force. The sensor is made of stainless steel with high precision, high reliability and fast response, and is suitable for precise force measurement and control in industrial automation.

Product parameter

Model: PFTL101B 10KN 3BSE004197R1

Maximum measuring range: 10 kN (kN).

Accuracy: ±0.2%FS (full scale error).

Output signal: Analog signal (4-20 mA).

Operating temperature range: -40°C to +70°C.

Protection class: IP67 to ensure stable operation in harsh environments.

Dimensions: Φ50 x 65 mm.

Weight: About 1.2kg.

Product specification

Material: Stainless steel, to ensure the durability and corrosion resistance of the sensor.

Installation: Support a variety of installation interfaces, including cylindrical plug connection or fixed cable connection.

Applicable environment: Suitable for industrial automation, material handling, robotics, test and measurement scenarios.

series

The product belongs to the PFTL series, which is known for its high precision, high reliability and versatility, and is widely used in the field of industrial automation.

trait

High accuracy: The measurement accuracy is up to ±0.2%FS to ensure the accuracy of the data.

High reliability: stainless steel material, corrosion resistance, strong shock resistance.

Fast response: Suitable for industrial scenarios that require real-time monitoring and control.

Easy to install: Provide a variety of installation interfaces to adapt to different equipment requirements.

Wide operating temperature range: suitable for a variety of industrial environments.

Function and use

ABB PFTL101B 10KN 3BSE004197R1’s main role is to accurately measure and control values, and its uses include:

Industrial automation: for process control, quality control and data acquisition.

Material Handling and robotics: Accurately measure material weight or tension to ensure accurate handling.

Test and measurement: Mechanical properties are tested in a laboratory environment.

Other applications: such as textile, printing, packaging, paper and metal processing industries.

Application field

The sensor is widely used in the following areas:

Paper industry: paper tension measurement.

Textile industry: fabric tension control.

Metal working industry: tension measurement.

Automated production line: Material weight monitoring.

Laboratory test: Mechanical properties test.
