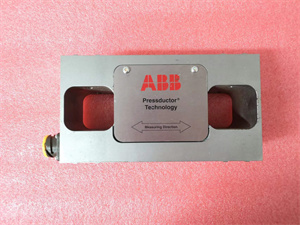

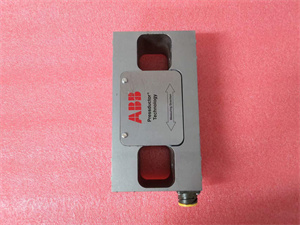

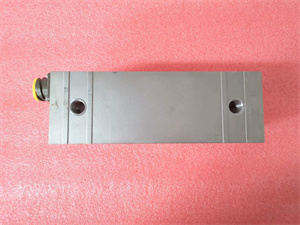

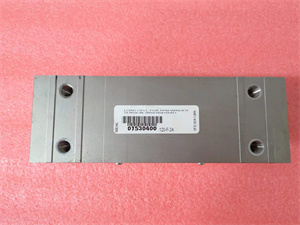

PFTL101A 0.5KN 3BSE004160R1

Description

The ABB PFTL101A 0.5KN 3BSE004160R1 is a high-precision, high-performance industrial sensor designed for the precise measurement and control of tension or force. Here is a detailed description of the product:

ABB PFTL101A 0.5KN 3BSE004160R1 Product description

The ABB PFTL101A 0.5KN 3BSE004160R1 is a piezoelectric tension sensor that operates on the piezoelectric magnetic effect and is able to accurately measure the tension range from 0 to 1000N. It is designed for industrial applications that require high precision and stability, such as the metalworking, printing, packaging and textile industries.

Product parameter

Range: 0 to 1000N.

Accuracy:

Accuracy ±0.15% full scale.

Linearity ±0.05%F.S.

Repeatability ±0.02%F.S.

Stability: ±0.05%/ year.

Rated voltage: 10 to 30VDC.

Operating temperature: -20°C to +70°C.

Overload capacity: 150% full scale.

Protection level: IP67.

Output signal: 4-20mA.

Size: The exact size is not specified, but usually meets industry standards.

Weight: about 1-2kg.

Product specification

Type: Frame type tension head.

Structural material: stainless steel, corrosion resistant.

Mounting method: DIN rail.

Communication protocol: Support Profibus, Modbus or Ethernet communication.

series

The product belongs to the ABB Force Sensor family.

trait

High precision and reliability: piezoelectric technology is used to ensure the accuracy of measurement results.

Rugged and durable: suitable for harsh industrial environments, with good vibration resistance and anti-interference ability.

Versatility: Support analog and digital output signals, suitable for a variety of industrial application scenarios.

User-friendly: User-friendly interface, easy to configure and operate.

Function and use

The main role of the ABB PFTL101A 0.5KN 3BSE004160R1 is to accurately measure and control tension or force in industrial production. Its application areas include:

Metalworking line: Used to measure the tension of metal strips, plates, etc.

Printing industry: Used for paper tension measurement.

Packaging industry: Used for film, plastic bags and other materials tension control.

Textile industry: Used for fabric tension measurement.

Application field

The sensor is widely used in the following areas:

Industrial automation: for process control and data acquisition.

Manufacturing: such as metal processing, plastic processing, etc.

Energy industry: tension monitoring of wind turbine blades.

Construction and infrastructure: Used for monitoring structures such as Bridges and roads.
