PFSK151 3BSE018876R1

Description

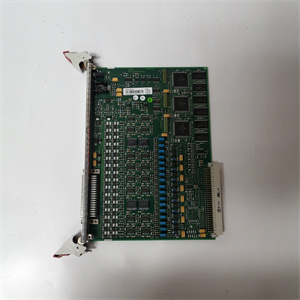

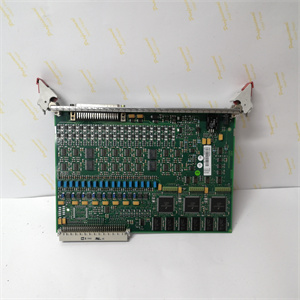

ABB PFSK151 3BSE018876R1 DSP signal processing board detailed introduction

Product Overview

ABB PFSK151 3BSE018876R1 is a DSP signal processing board designed specifically for ABB industrial automation systems.It integrates high-performance digital signal processors for processing signals in various industrial processes,such as sensor signals,motor signals,etc.This product is renowned for its high precision,high-speed processing capability,and reliability,and is widely used in ABB’s drives,frequency converters,and other products.

Product parameters and specifications

DSP model:High performance digital signal processor,such as TI’s C2000 series.

Input/output interfaces:analog input,digital input/output,communication interfaces(CANopen,PROFIBUS,etc.).

Sampling rate:Supports high sampling rates to meet the requirements of high-speed signal processing.

Accuracy:High precision AD conversion ensures the accuracy of signal acquisition.

Processing capability:Strong floating-point operation ability,supporting complex signal processing algorithms.

Working temperature range:suitable for industrial environments.

Product series and features

PFSK151 belongs to ABB’s DSP signal processing board series products,which have the following main features:

High performance:using high-performance DSP chips,with fast processing speed and high accuracy.

Modular design:Modular design,easy to expand and maintain.

High reliability:Industrial grade design,suitable for harsh industrial environments.

Flexible configuration:Supports multiple communication interfaces and functional configurations.

Strong compatibility:Good compatibility with other ABB products.

Product function and purpose

The main function of PFSK151 is to:

Signal acquisition:high-precision acquisition of various analog and digital signals.

Signal processing:Execute signal processing algorithms such as digital filtering,Fourier transform,PID control,etc.

Communication:Communicate with other devices to achieve data exchange and control.

The main uses of PFSK151 include:

Motor control:used in ABB drives to achieve precise control of the motor.

Process control:Used in process control systems to measure and control process variables.

Fault diagnosis:By analyzing signals,equipment faults can be diagnosed.

application area

PFSK151 is widely used in various industrial automation products of ABB,such as:

Driver:used to control motor speed,torque,etc.

Frequency converter:used to adjust the motor speed.

Process control system:used to control process variables such as temperature,pressure,flow rate,etc.

Robot control:used to control the movement of robots.

summary

ABB PFSK151 3BSE018876R1 is a high-performance DSP signal processing board that plays an important role in ABB’s industrial automation systems.It has the characteristics of high precision,high-speed processing capability,and reliability,and is widely used in various industrial fields.
