PFCL201C 20KN

Description

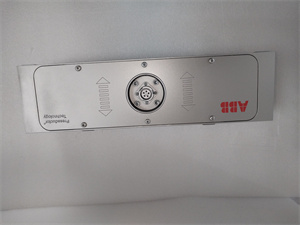

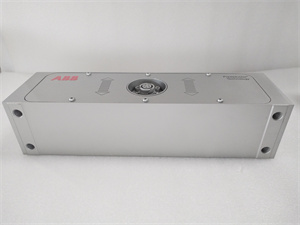

The ABB PFCL201C 20KN is a high-performance industrial force sensor module designed for precise measurement and control of loads. Here is a detailed description of the product:

ABB PFCL201C 20KN Product description

The PFCL201C 20KN is a force measurement device specifically designed for industrial automation and control applications, providing highly accurate and stable force measurement data. Core features include accurate force measurement, support for multiple communication protocols, and the ability to adapt to harsh industrial environments.

Product parameter

Rated range: 20kN (kN).

Accuracy:

Measuring accuracy up to ±0.2% or ±0.5%.

Nonlinear error: ±0.2%.

Lag error: ±0.2%.

Zero error: ±1%.

Operating voltage: Input voltage range is 12-48V DC, output voltage range is 0-10V DC.

Operating temperature: -20°C to +60°C.

Protection class: IP67, suitable for harsh environment.

Size: 100mm×50mm×20mm (some models) or 170mm×105mm×32mm (other models).

Weight: Approx. 0.5kg (some models) or approx. 120g (others).

Communication interface: Support RS232, RS485, Ethernet and other communication protocols.

Product specification

Measuring range: 0-20kN.

Overload capacity: can withstand up to 150% of the rated load.

Efficiency: greater than 90%.

Installation mode: Supports screw fixing and flange mounting.

series

The PFCL201C belongs to the PFCL family of pressure sensor modules, which are known for their high accuracy, high reliability and versatility.

trait

High precision measurement: Advanced signal processing technology is used to ensure the accuracy of measurement results.

Wide operating temperature range: suitable for industrial environments from extreme cold to high temperature.

Compact design: Compact size for easy installation in tight Spaces.

Strong anti-interference ability: suitable for industrial environment with serious electromagnetic interference.

Multiple communication methods: Support digital communication protocols, easy to integrate with the controller.

Function and use

PFCL201C 20KN is mainly used in the following fields:

Industrial automation: Used in robots, manipulators, assembly lines and other scenarios.

Material testing: Used to measure the strength or fatigue limit of a material.

Process control: real-time monitoring and control of reaction processes in chemical, pharmaceutical and other industries.

Quality control: Used in packaging machinery, food processing machinery and other scenarios.

Other applications: such as medical equipment, logistics equipment, water treatment equipment, etc.

Application field

PFCL201C 20KN is widely used in the following industries:

Manufacturing: For force control of presses, punching machines or forming machines.

Oil and gas industry: Used to monitor and control pipeline pressure.

Metallurgical industry: Used for force measurement in metal processing.

Chemical industry: Used to monitor pressure changes in reactors.

Medical equipment: for surgical robots and rehabilitation equipment.

Logistics equipment: used for quality control of packaging machinery.
