PDP800 ABB

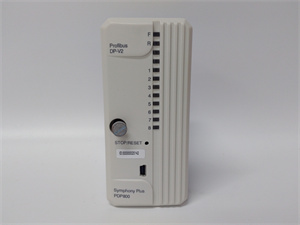

ABB PDP800 PROFIBUS DP Master Module

1. Product Description

• Protocol Support: Manages PROFIBUS DP V0, V1, and V2 protocols, enabling real-time control (V0), device diagnostics (V1), and time-stamped event handling (V2) for critical processes.
• High-Speed Data Transfer: Supports data rates up to 12 Mbps, ensuring low-latency communication for time-sensitive applications like motion control or safety systems.
• Redundancy Mechanisms: Features dual-port redundancy for PROFIBUS DP links and power supplies, minimizing downtime by automatically switching to backup channels in case of faults.
• Wide Device Compatibility: Connects to both ABB and third-party devices, including transmitters, valves, and intelligent electronic devices (IEDs), without requiring additional gateways.
• Integrated Diagnostics: Provides real-time status via LED indicators and detailed fault reports to the control system, enabling proactive maintenance and rapid issue resolution.

2. Technical Parameters

Parameter	Specification
Brand	ABB
Model	PDP800
Module Type	PROFIBUS DP Master Module (V0/V1/V2 Compliant)
Slave Devices Supported	Up to 125 (per network segment)
Data Rate Range	9.6 kbps to 12 Mbps (auto-negotiation)
Communication Media	Electrical (twisted pair, up to 1.2 km) or fiber optic (up to 15 km)
Power Supply	24V DC ±10% (non-isolated, loop-powered)
Power Consumption	≤5 W (active), ≤2 W (standby)
Operating Temperature	-20°C to +60°C (non-condensing humidity: 5%–95%)
Storage Temperature	-40°C to +85°C
Dimensions (W×H×D)	244 mm × 74 mm × 170 mm (DIN rail mountable)
Weight	0.18 kg
Compatibility	ABB Symphony Plus, AC 800M, S800 I/O, and third-party PROFIBUS DP systems
Certifications	CE, RoHS, IEC 61131-2 (safety), IEC 61000-6-2 (EMC compliance)

PDP800

3. Advantages and Features

• Rugged Reliability: The PDP800 is built to withstand industrial challenges, with a mean time between failures (MTBF) exceeding 150,000 hours and resistance to vibrations (up to 5g) and electromagnetic interference (EMI). This durability makes it suitable for harsh environments like offshore platforms or steel mills.
• Flexible Network Design: Supports both point-to-point and multi-drop configurations, allowing users to customize network topology for large-scale facilities. Its fiber optic capability extends communication distances to 15 km, ideal for distributed industrial sites.
• Advanced Diagnostics: Built-in self-test functions monitor signal quality, slave device health, and power stability, reducing troubleshooting time by up to 40% compared to basic modules. Real-time event logging with 1 ms timestamp precision aids in root-cause analysis for process anomalies.
• Energy-Efficient Operation: Low power consumption and sleep modes minimize energy use, while hot-swappable design enables module replacement without system shutdown, reducing maintenance-related energy waste.

4. Application Areas and Case Study

Application Areas:

• Power Generation: Integrates turbine control systems, generator protection relays, and boiler feedwater pumps in thermal and nuclear power plants.
• Oil & Gas: Manages pipeline pressure sensors, valve actuators, and safety interlocks in refineries, offshore platforms, and LNG terminals.
• Water Treatment: Connects pump status monitors, flow meters, and chemical dosing systems in wastewater treatment plants for real-time process optimization.
• Manufacturing: Controls robotic arms, conveyor belts, and quality control sensors in automotive and pharmaceutical production lines, ensuring seamless automation.

Case Study:

5. Competitive Comparison

• Higher Data Throughput: Supports the maximum PROFIBUS DP data rate (12 Mbps), outperforming many alternatives that cap at 1.5 Mbps, making it suitable for high-frequency control applications.
• Extended Network Reach: Fiber optic support extends communication distances by 50% compared to standard electrical modules, reducing the need for repeaters in large facilities.
• Seamless ABB Ecosystem Integration: Works natively with ABB’s S800 I/O modules and Symphony Plus software, eliminating compatibility issues and reducing engineering time by 25%.
• Comprehensive Redundancy: Dual-port and power supply redundancy options provide higher system availability than single-port alternatives, critical for uninterrupted operations.


  PDP800

6. Selection Recommendations

• Protocol Requirements: Choose the PDP800 if your application requires PROFIBUS DP V2 features like time stamping or advanced diagnostics, especially for safety-critical systems.
• Environmental Demands: Prioritize this module for installations with extreme temperatures (-20°C to +60°C) or high EMI, as its rugged design eliminates the need for additional protective enclosures.
• Scalability Needs: For large networks with over 100 slave devices, the PDP800’s high slave capacity and fiber optic support ensure reliable performance without network congestion.
• Budget Considerations: While it offers premium features, the PDP800’s long lifespan, redundancy, and energy efficiency provide a lower total cost of ownership compared to basic modules over time.

7. Precautions

• Installation:
  • Power down the control system before installing the module to prevent electrostatic discharge (ESD) damage. Use shielded cables for PROFIBUS connections and ground them according to industrial standards to minimize EMI.
• Configuration:
  • Assign unique slave addresses and baud rates using ABB’s S+ Engineering software, ensuring no conflicts with existing network devices. Validate communication by testing data exchange with a single slave device before full deployment.
• Maintenance:
  • Inspect terminal connections quarterly for corrosion or looseness, particularly in humid or salty environments. Update firmware annually via the control system to access the latest protocol enhancements and security patches.
• Storage:
  • Store unused modules in their original anti-static packaging within the specified temperature range (-40°C to +85°C) to preserve component integrity. Avoid exposing them to direct sunlight or moisture.
